Hot-selling and scarce M30290FCTHP-U7A Microcontroller IC 16-Bit 20MHz 128KB FLASH 80-LQFP spot stock
Manufacturer Product Number
M30290FCTHP#U7A
Description
M30290FCTHP#U7A Microcontroller IC 16-Bit 20MHz 128KB FLASH 80-LQFP spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
The M16C/29 Group of single-chip control MCU incorporates the M16C/60 series CPU core, employing the high-performance silicon gate CMOS technology and sophisticated instructions for a high level of efficiency. The M16C/29 Group is housed in 64-pin and 80-pin plastic molded LQFP packages. These singlechip MCUs operate using sophisticated instructions featuring a high level of instruction efficiency. This MCU is capable of executing instructions at high speed and it has one CAN module, makes it suitable for control of cars and LAN system of FA. In addition, the CPU core boasts a multiplier and DMAC for highspeed processing to make adequate for office automation, communication devices, and other high-speed processing applications.
Product Applications
Automotive body, car audio, LAN system of FA, etc.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-M30290FCTHP#U7A |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | - |
| Series | M16C™ M16C/Tiny/29T |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, POR, PWM, Voltage Detect, WDT |
| Number of I/O | 71 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 27x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (12x12) |
| Package / Case | 80-LQFP |
| Base Product Number | M30290 |

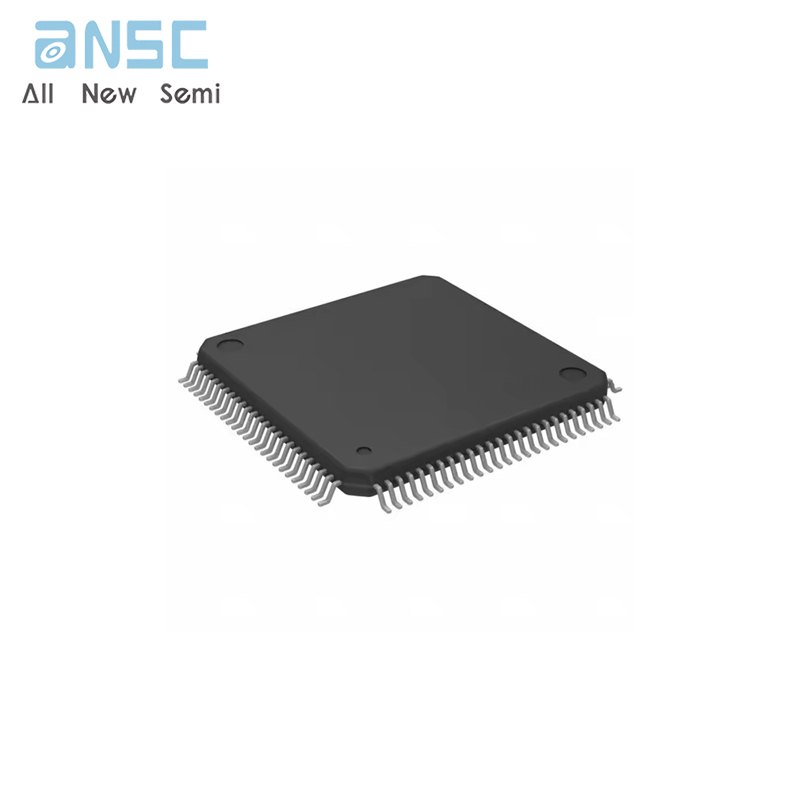

Product Photos
For more product information, please download the PDF
