Hot-selling and scarce ATXMEGA192A3-AU Microcontroller IC 8/16-Bit 32MHz 64-TQFP spot stock

Product Features

•  High-performance, Low-power 8/16-bit Atmel® AVR® XMEGATM Microcontroller

•  Non-volatile Program and Data Memories

– 64 KB - 256 KB of In-System Self-Programmable Flash

– 4 KB - 8 KB Boot Code Section with Independent Lock Bits

– 2 KB - 4 KB EEPROM

– 4 KB - 16 KB Internal SRAM

•  Peripheral Features

– Four-channel DMA Controller with support for external requests

– Eight-channel Event System

– Seven 16-bit Timer/Counters

Four Timer/Counters with 4 Output Compare or Input Capture channels

Three Timer/Counters with 2 Output Compare or Input Capture channels

High Resolution Extensions on all Timer/Counters

Advanced Waveform Extension on one Timer/Counter

– Seven USARTs

IrDA Extension on 1 USART

– AES and DES Crypto Engine

– Two Two-wire Interfaces with dual address match (I2C and SMBus compatible)

– Three SPI (Serial Peripheral Interfaces)

– 16-bit Real Time Counter with Separate Oscillator

– Two Eight-channel, 12-bit, 2 Msps Analog to Digital Converters

– One Two-channel, 12-bit, 1 Msps Digital to Analog Converter

– Four Analog Comparators with Window compare function

– External Interrupts on all General Purpose I/O pins

– Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator

•  Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal and External Clock Options with PLL

– Programmable Multi-level Interrupt Controller

– Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby

– Advanced Programming, Test and Debugging Interfaces

JTAG (IEEE 1149.1 Compliant) Interface for test, debug and programming

PDI (Program and Debug Interface) for programming, test and debugging

•  I/O and Packages

– 50 Programmable I/O Lines

– 64-lead TQFP

– 64-pad QFN

•  Operating Voltage

– 1.6 – 3.6V

•  Speed performance

– 0 – 12 MHz @ 1.6 – 3.6V

– 0 – 32 MHz @ 2.7 – 3.6V

Product Applications

•  Industrial control

•  Climate control

•  Hand-held battery applications

•  Factory automation

•  ZigBee

•  Power tools

•  Building control

•  Motor control

•  HVAC

•  Board control

•  Networking

•  Metering

•  White Goods

•  Optical

•  Medical Applications

​

Product Specifications

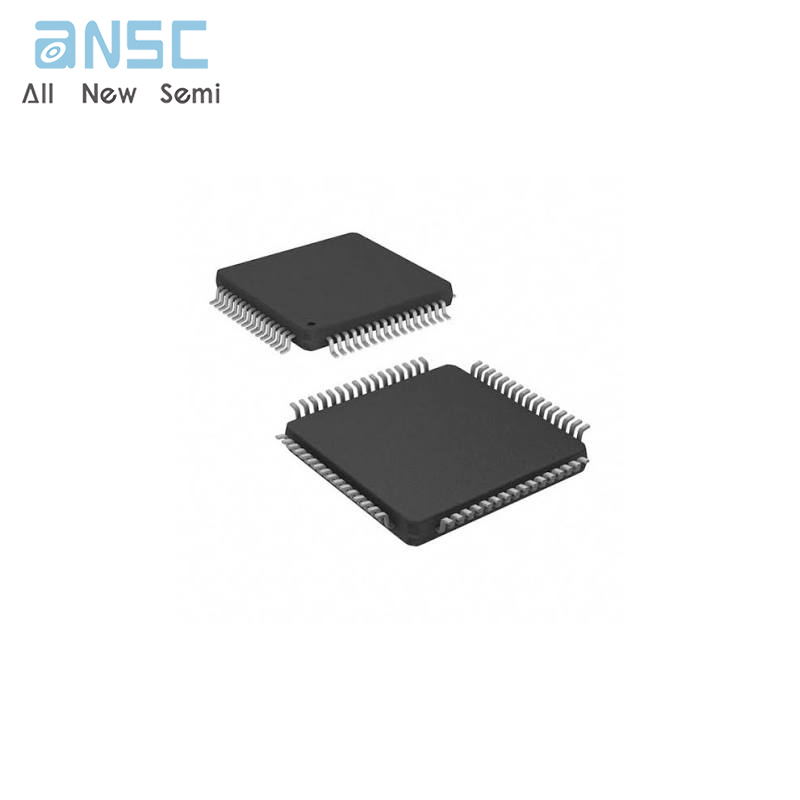

Product Photos

For more product information, please download the PDF
