Hot-selling and scarce MC9S12XDT512CAA Microcontroller IC 16-Bit 80MHz 512KB FLASH 80-QFP spot stock

Product Descriptions

The MC9S12XD family will retain the low cost, power consumption, EMC and code-size efficiency advantages currently enjoyed by users of Freescale's existing 16-Bit MC9S12 MCU Family.

Based around an enhanced S12 core, the MC9S12XD family will deliver 2 to 5 times the performance of a 25-MHz S12 whilst retaining a high degree of pin and code compatibility with the S12.

The MC9S12XD family introduces the performance boosting XGATE module. Using enhanced DMA functionality, this parallel processing module offloads the CPU by providing high-speed data processing and transfer between peripheral modules, RAM, Flash EEPROM and I/O ports. Providing up to 80 MIPS of performance additional to the CPU, the XGATE can access all peripherals, Flash EEPROM and the RAM block.

Product Features

• HCS12X Core

— 16-bit HCS12X CPU

– Upward compatible with MC9S12 instruction set

– Interrupt stacking and programmer’s model identical to MC9S12

– Instruction queue

– Enhanced indexed addressing

– Enhanced instruction set

— EBI (external bus interface)

— MMC (module mapping control)

— INT (interrupt controller)

— DBG (debug module to monitor HCS12X CPU and XGATE bus activity)

— BDM (background debug mode)

• XGATE (peripheral coprocessor)

— Parallel processing module off loads the CPU by providing high-speed data processing and transfer

— Data transfer between Flash EEPROM, RAM, peripheral modules, and I/O ports

• PIT (periodic interrupt timer)

— Four timers with independent time-out periods

— Time-out periods selectable between 1 and 224 bus clock cycles

• CRG (clock and reset generator)

— Low noise/low power Pierce oscillator

— PLL

— COP watchdog

— Real time interrupt

— Clock monitor

— Fast wake-up from stop mode

• Port H & Port J with interrupt functionality

— Digital filtering

— Programmable rising or falling edge trigger

• Memory

— 512, 256 and 128-Kbyte Flash EEPROM

— 4 and 2-Kbyte EEPROM

— 32, 16 and 12-Kbyte RAM

• One 16-channel and one 8-channel ADC (analog-to-digital converter)

— 10-bit resolution

— External and internal conversion trigger capabilityFiveFourTwo 1M bit per second, CAN 2.0 A, B software compatible modules

— Five receive and three transmit buffers

— Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit, or 8 x 8 bit

— Four separate interrupt channels for Rx, Tx, error, and wake-up

— Low-pass filter wake-up function

— Loop-back for self-test operation

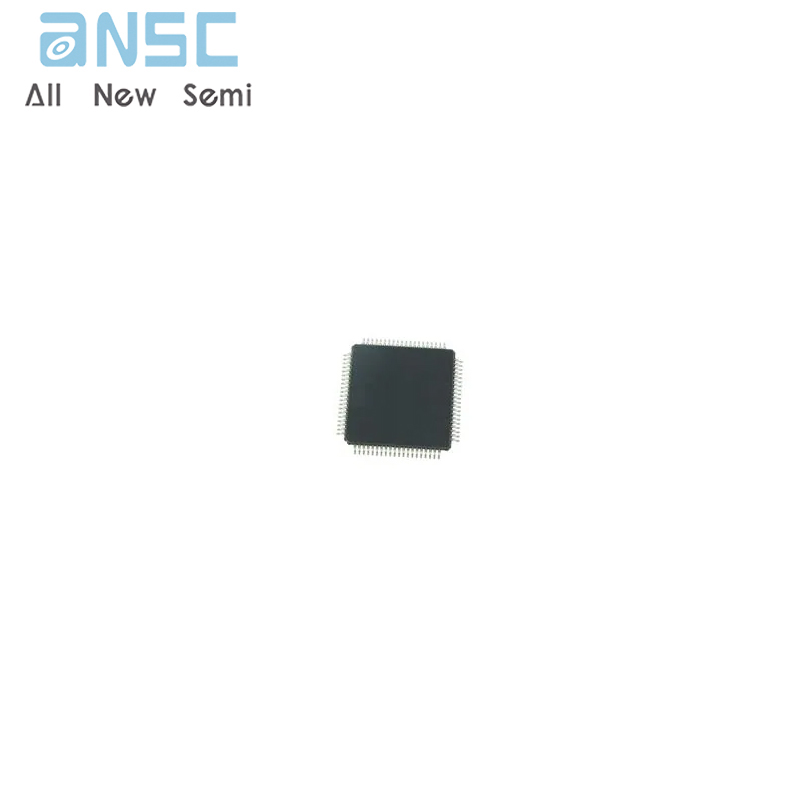

Product Photos

For more product information, please download the PDF
