Hot-selling and scarce MC908JL16CFJE Microcontroller IC QFP32 spot stock

Product Descriptions

The MC68HC908JL16 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs).All MCUs in the family use the enhanced M68HC08 central processor unit(CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Product Features

•    High-performance M68HC08 architecture

•    Fully upward-compatible object code with M6805, M146805, and M68HC05 Families

•    Low-power design; fully static with stop and wait modes

•    Maximum internal bus frequency:

–    8-MHz at 5-V operating voltage

–   4-MHz at 3-V operating voltage

•    Oscillator options:

–    Crystal or resonator

–    RC oscillator

•     16,384 bytes user program FLASH memory with security(1)

•    512 bytes of on-chip random-access memory (RAM)

•    Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,output compare, and pulse-width modulation (PWM) capability on each channel; external clock input option on TIM2

•     13-channel, 10-bit analog-to-digital converter with internal bandgap reference channel (ADC10)

•    Serial communications interface module (SCI)

•    Multi-master IIC module (MMIIC)

•    Up to 26 general-purpose input/output (I/O) ports:

–    8 keyboard interrupt with internal pull up

–    11 LED drivers (sink)

–   2 × 25 mA open-drain I/O with pull up

–    Inputs contain hysteresis buffer for improved noise immunity

•    Resident routines for in-circuit programming and EEPROM emulation

•    System protection features:

–    Optional computer operating properly (COP) reset, driven by internal RC oscillator

–    Optional low-voltage detection with reset and selectable trip points for 3-V and 5-V operation

–    Illegal opcode detection with reset

–    Illegal address detection with reset

Product Specification

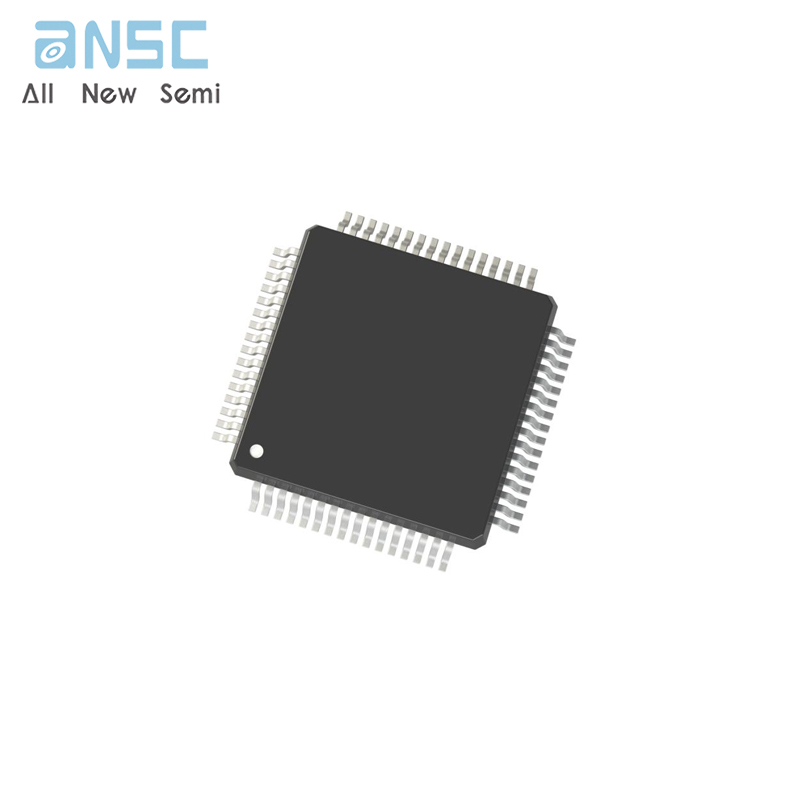

Product Photos

For more product information, please download the PDF
