Product Descriptions

IP5330 is a multi-functional power management SOC for total solution on Power Bank. It also integrates with boost converter, lithium battery charging management and battery level indicators.

IP5330 is highly integrated with abundant functions, which makes the total solution size minimized and BOM costed down.

IP5330 requires only one inductor to achieve buck and boost functions, and can support low-cost inductors and capacitors.

The synchronous boost system of IP5330 provides rated 3A output current with conversion efficiency up to 93 PERCENT. When there is no load, it will automatically enter the standby state, and the static current will drop to less than 150uA.

IP5330’s switch charging system supplies 3A charging current with charging efficiency up to 92 PERCENT. According to the IC temperature and input voltage, IP5330 can intelligently adjust charging current.

IP5330 contains 14bits ADC, which can accurately measure battery’s voltage and current. The built-in coulomb meter algorithm of IP5330 can accurately obtain the battery power information.

IP5330 can support digital tube display and illuminator function.

Product Features

 Charge /discharge with synchronous switch

 Charge /discharge with 3A current by synchronous switch

 Up to 93 PERCENT boost efficiency

 Up to 92 PERCENT charging efficiency

 Built-in power path management supports charging and discharging at the same time

 Supports line compensation

 Charge

 Adjusts charging current automatically to adapt to different load capacity adapters

 Supports TYPEC port 3A, MICRO B port 2A charging current

 Supports 4.20V, 4.30V 4.35V, 4.40V batteries

 Battery indicators

 Built-in 14bits ADC and accurate coulomb calculation method

 Supports digital tube display, 1A/2A outlet identification

 Supports selecting battery initial capacity by external PIN

 Supports self calibration of battery capacity

 Others

 Built-in illuminator driver

 Supports NTC

 Automatically load insertion and removal detection

 Supports Type-C DRP protocol and single port input/output

 Supports mobile phone charging current intelligent identification of DCP protocol

 Low-power dissipation

 Enter standby mode automatically with light load

 Standby power consumption is less than 150µA

 Simplified BOM

 Integrated switch power MOSFETs

 Single inductor for charging and discharging

 Built-in various digital tube drive circuits

 Multiple protection, high reliability

 Output over current, over voltage and short circuit protection

 Input over voltage protection

 Battery over charge, over discharge and over current protection

 Over temperature protection

 Vin transient withstand up to 16V

 In-depth customization

 Flexible and low-cost customized program

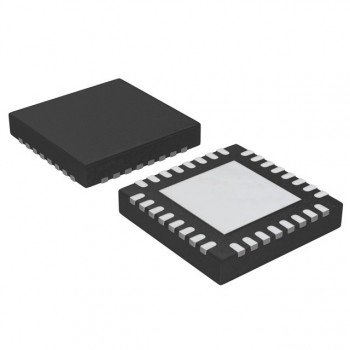

 Package: 5mm*5mm, QFN32

Product Applications

 Power Bank

 Mobile phones, tablets and other portable devices

 Hydrator/hand warmer
