Hot-selling and scarce PIC16F73-I/SP 8-bit CMOS FLASH Microcontrollers IC DIP spot stock

​Product Features

•  Power-on Reset (POR)

•  Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

•  Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

•  Programmable code protection

•  Power saving SLEEP mode

•  Selectable oscillator options

•  In-Circuit Serial Programming (ICSP)via two pins

•  Timer0: 8-bit timer/counter with 8-bit prescaler

•  Timer1: 16-bit timer/counter with prescaler,can be incremented during SLEEP via external crystal/clock

•  Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

•  Two Capture, Compare, PWM modules

-  Capture is 16-bit, max. resolution is 12.5 ns

-  Compare is 16-bit, max. resolution is 200 ns

-  PWM max. resolution is 10-bit

•  8-bit, up to 8-channel Analog-to-Digital converter

•  Synchronous Serial Port (SSP)with SPI (Master mode) and I 2 C (Slave)

•  Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)

•  Parallel Slave Port (PSP), 8-bits wide with external RD, WR and CS controls (40/44-pin only)

•  Brown-out detection circuitry for Brown-out Reset (BOR)

Product Specification

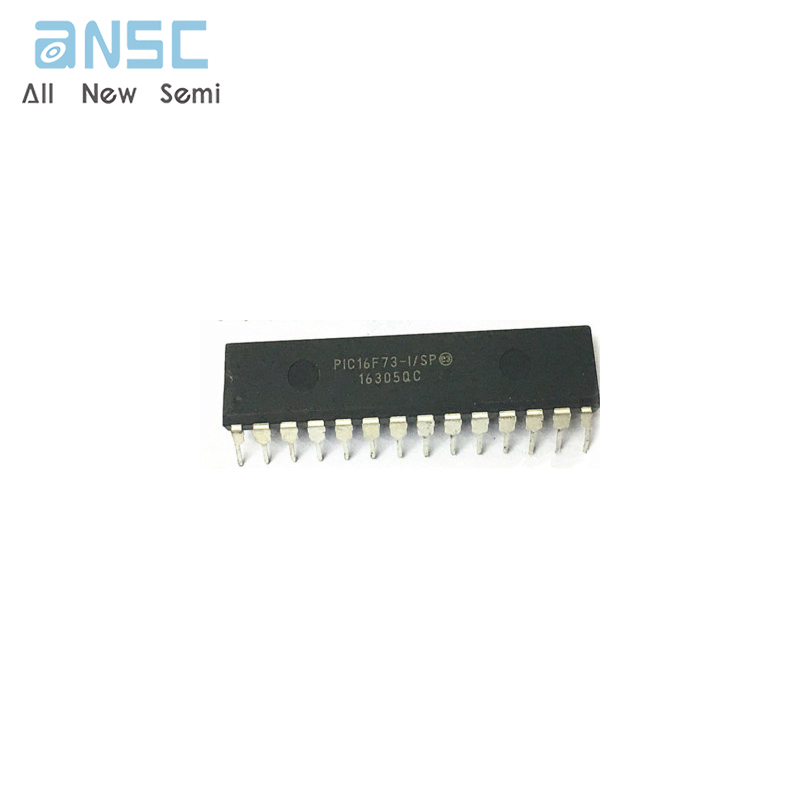

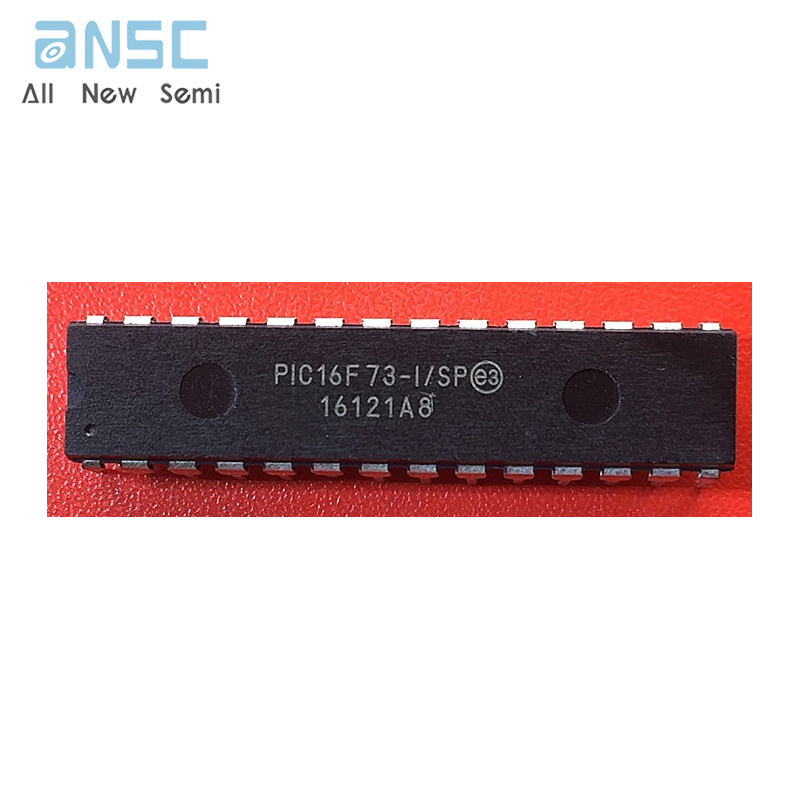

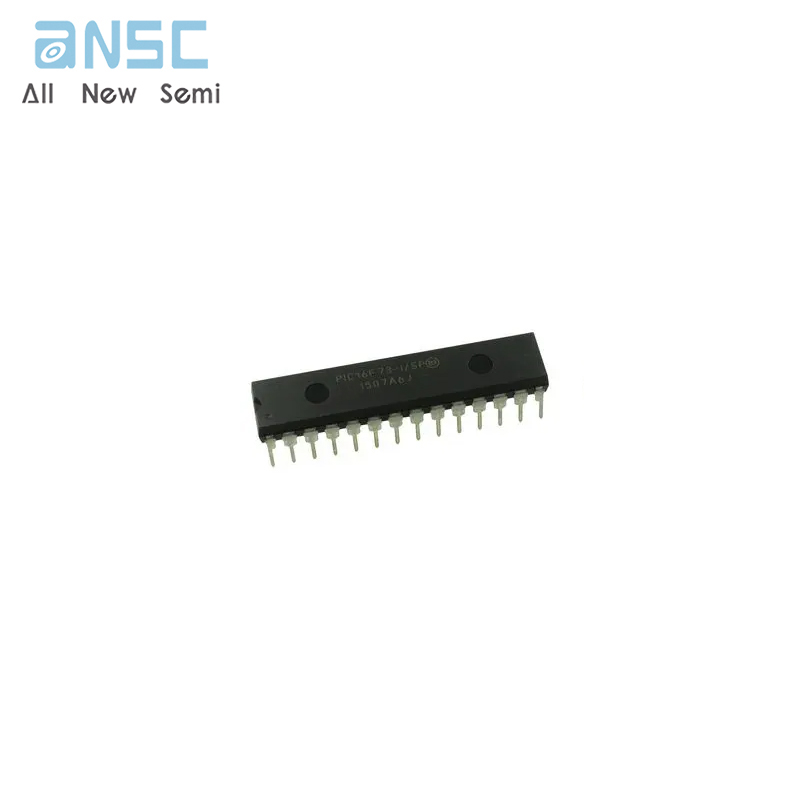

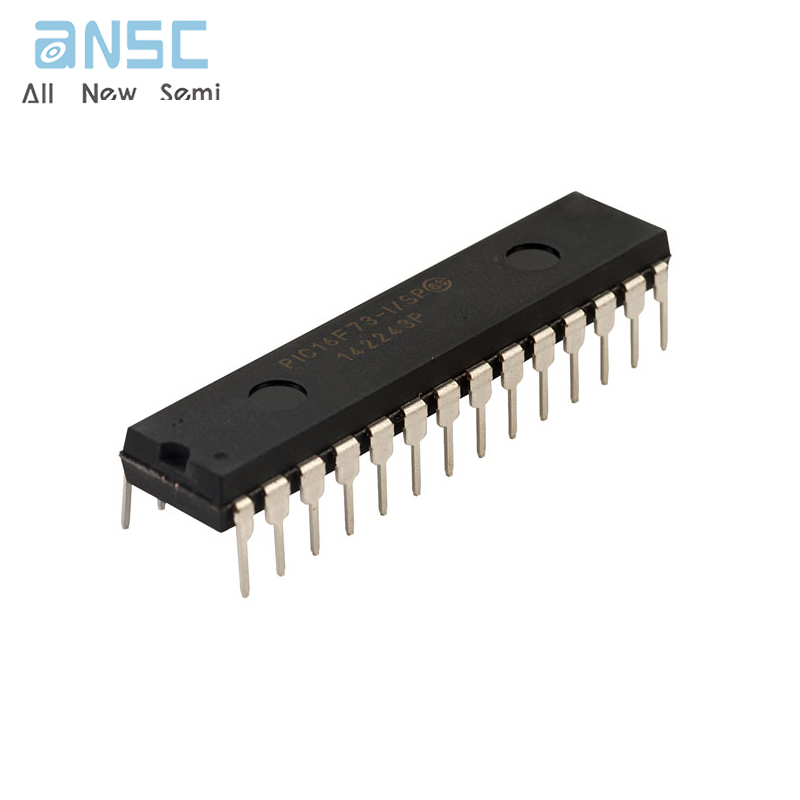

Product Photos

For more product information, please download the PDF
