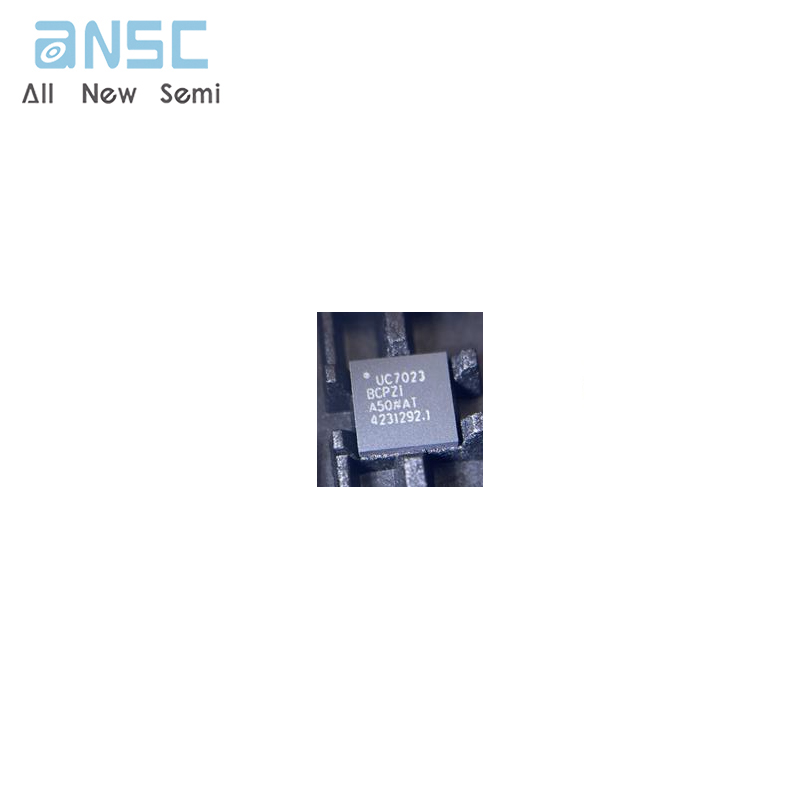

Hot-selling and scarce ADUC7023BCPZ62I Precision Analog Microcontroller IC LFCSP32 spot stock

Product Descriptions

The ADuC7023 is a fully integrated, 1 MSPS, 12-bit data acquisition system, incorporating high performance multichannel ADCs,16-bit/32-bit MCUs, and Flash/EE memory on a single chip.

The ADC consists of up to 12 single-ended inputs.An additional four inputs are available but are multiplexed with the four DAC output pins.The ADC can operate in single-ended or differential input modes.The ADC input voltage is 0 V to V_REF.A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set.

Product Features

Analog I/O

Multichannel, 12-bit, 1 MSPS ADC

Up to 12 ADC channels

Fully differential and single-ended modes

0 V to VREF analog input range

12-bit voltage output DACs

4 DAC outputs available

On-chip voltage reference

On-chip temperature sensor

Voltage comparator

Microcontroller

ARM7TDMI core, 16-bit/32-bit RISC architecture

JTAG port supports code download and debug

Clocking options

Trimmed on-chip oscillator (±3%)

External watch crystal

External clock source up to 44 MHz

41.78 MHz PLL with programmable divider

Memory

62 kB Flash/EE memory, 8 kB SRAM

In-circuit download,JTAG-based debug

Software-triggered in-circuit reprogrammability

Vectored interrupt controller for FIQ and IRQ

8 priority levels for each interrupt type

Interrupt on edge or level external pin inputs

On-chip peripherals

2× fully I2C-compatible channels

SPI (20 Mbps in master mode, 10 Mbps in slave mode)

With 4-byte FIFO on input and output stages

Up to 20 GPIO pins—Digital only GPIOs are 5 V tolerant

3× general-purpose timers

Watchdog timer (WDT)

Programmable logic array (PLA)

16 PLA elements

16-bit, 5-channel PWM

Power

Specified for 3 V operation

Active mode: 11 mAat 5 MHz, 28 mAat 41.78 MHz

Packages and temperature range

32-lead 5 mm × 5 mm LFCSP

40-lead LFCSP

36-Lead WLCSP

Fully specified for −40°C to +125°C operation

Tools

Low cost QuickStart development system

Full third-party support

Product Applications

Optical networking

Industrial control and automation systems

Smart sensors, precision instrumentation

Base station systems

Product Specifications

Product Photos

For more product information, please download the PDF
