Hot-selling and scarce MC68HC05B6FN Microcontrollers IC PLCC52 spot stock

Product Features

• Fully static design featuring the industry standard M68HC05 family CPU core

• On chip crystal oscillator with divide by 2 or a software selectable divide by 32 option (SLOW mode)

• 2.1 MHz internal operating frequency at 5V; 1.0 MHz at 3V

• High speed version available

• 176 bytes of RAM

• 5936 bytes of user ROM plus 14 bytes of user vectors

• 256 bytes of byte erasable EEPROM with internal charge pump and security bit

• Write/erase protect bit for 224 of the 256 bytes EEPROM

• Self test/bootstrap mode

• Power saving STOP, WAIT and SLOW modes

• Three 8-bit parallel I/O ports and one 8-bit input-only port

• Software option available to output the internal E-clock to port pin PC2

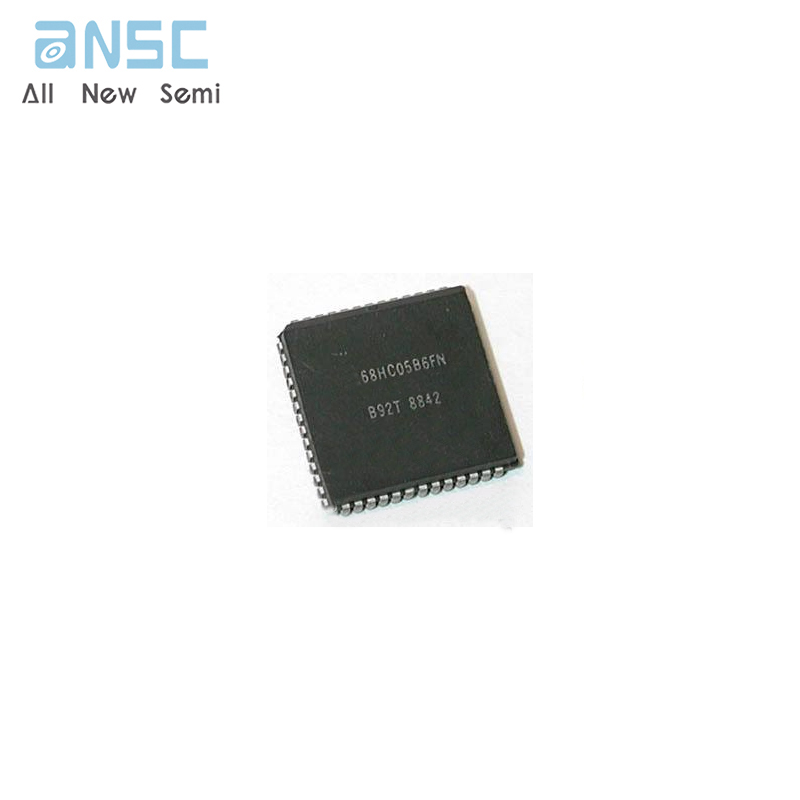

Product Photos

​

For more product information, please download the PDF
