Hot-selling and scarce PIC24FJ48GA002-I/ML 28/44-Pin General Purpose 16-Bit Flash Microcontrollers QFN spot stock

Product Features

High-Performance CPU

• Modified Harvard Architecture

• Up to 16 MIPS Operation @ 32 MHz

• 8 MHz Internal Oscillator with 4x PLL Option and Multiple Divide Options

• 17-Bit by 17-Bit Single-Cycle Hardware Multiplier

• 32-Bit by 16-Bit Hardware Divider

• 16-Bit x 16-Bit Working Register Array

• C Compiler Optimized Instruction Set Architecture:

- 76 base instructions

- Flexible addressing modes

• Two Address Generation Units (AGUs) for Separate Read and Write Addressing of Data Memory

Special Microcontroller Features

• Operating Voltage Range of 2.0V to 3.6V

• 5.5V Tolerant Input (digital pins only)

• High-Current Sink/Source (18 mA/18 mA) on All I/O Pins

• Flash Program Memory:

- 10,000 erase/write

- 20-year data retention minimum

• Power Management modes:

- Sleep, Idle, Doze and Alternate Clock modes

- Operating current: 650 A/MIPS, typical at 2.0V

- Sleep current: 150 nA, typical at 2.0V

• Fail-Safe Clock Monitor (FSCM) Operation:

- Detects clock failure and switches to on-chip, low-power RC oscillator

• On-Chip, 2.5V Regulator with Tracking mode

• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Flexible Watchdog Timer (WDT) with On-Chip,

Low-Power RC Oscillator for Reliable Operation

• In-Circuit Serial Programming™ (ICSP™) and In-Circuit Debug (ICD) via 2 Pins

• JTAG Boundary Scan Support

Product Specification

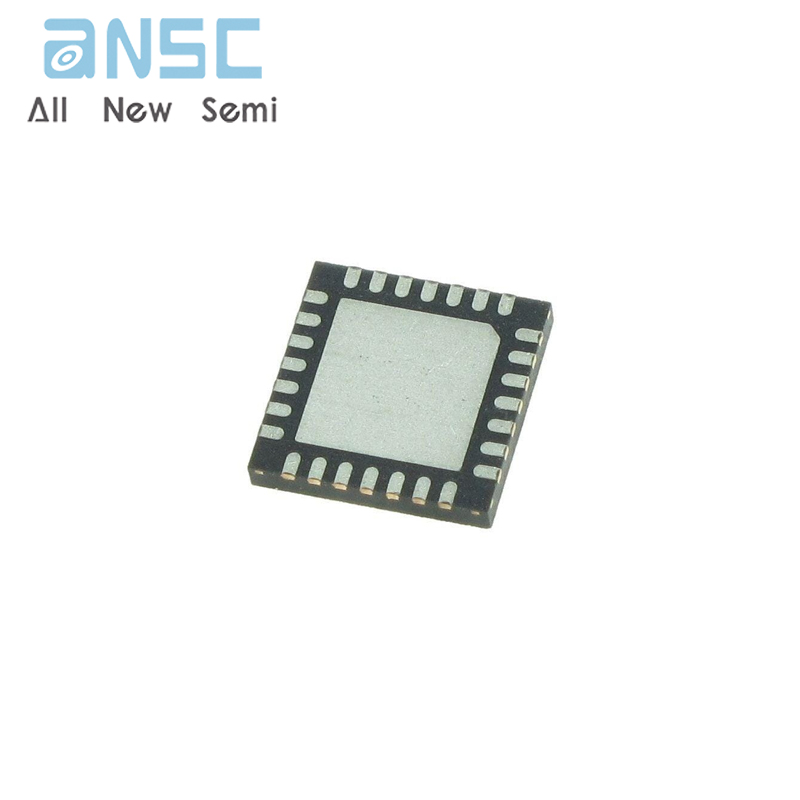

Product Photos

For more product information, please download the PDF
