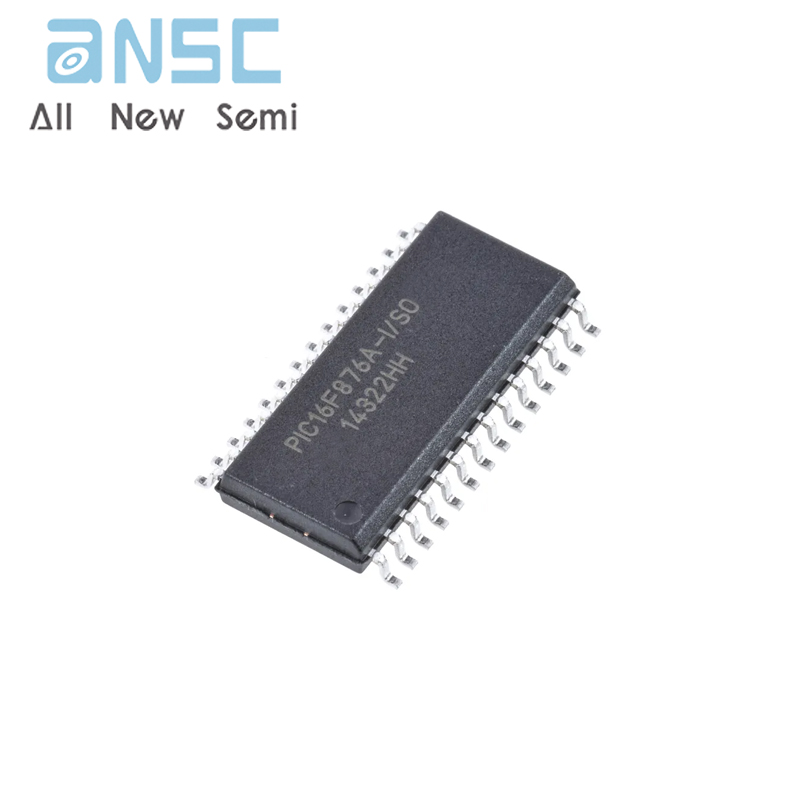

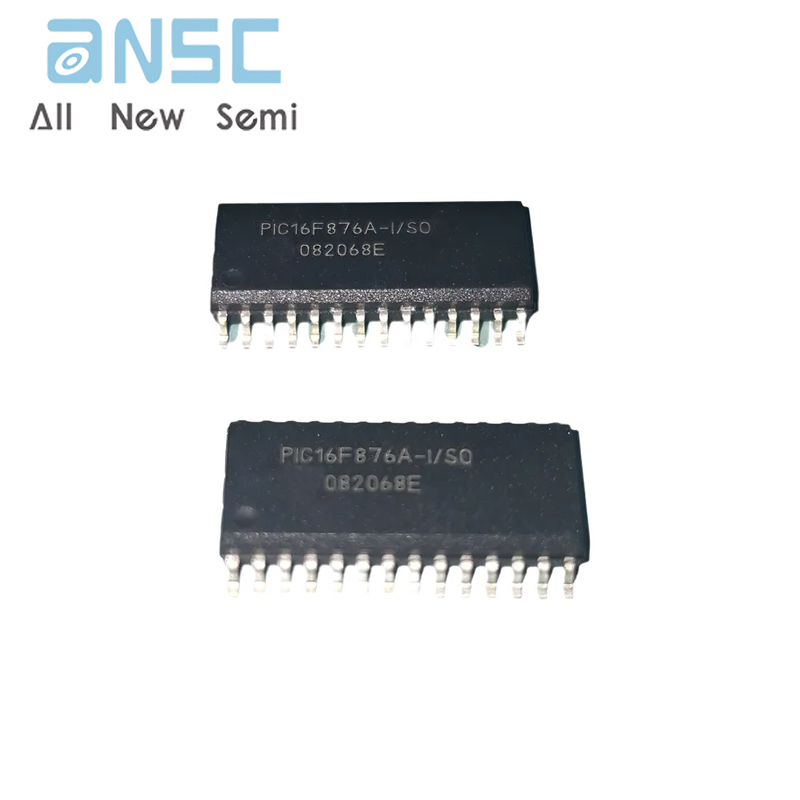

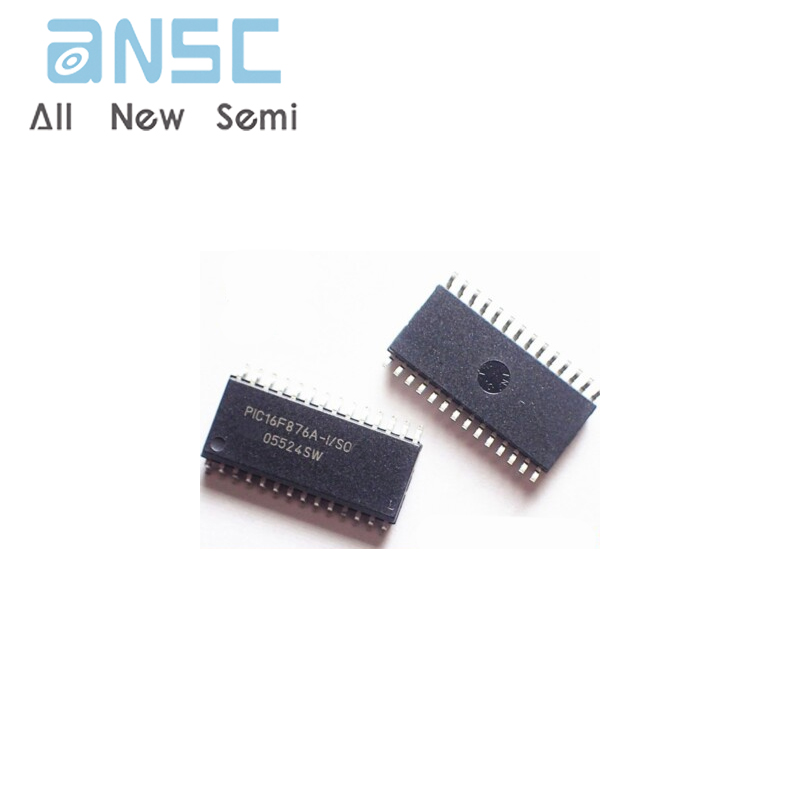

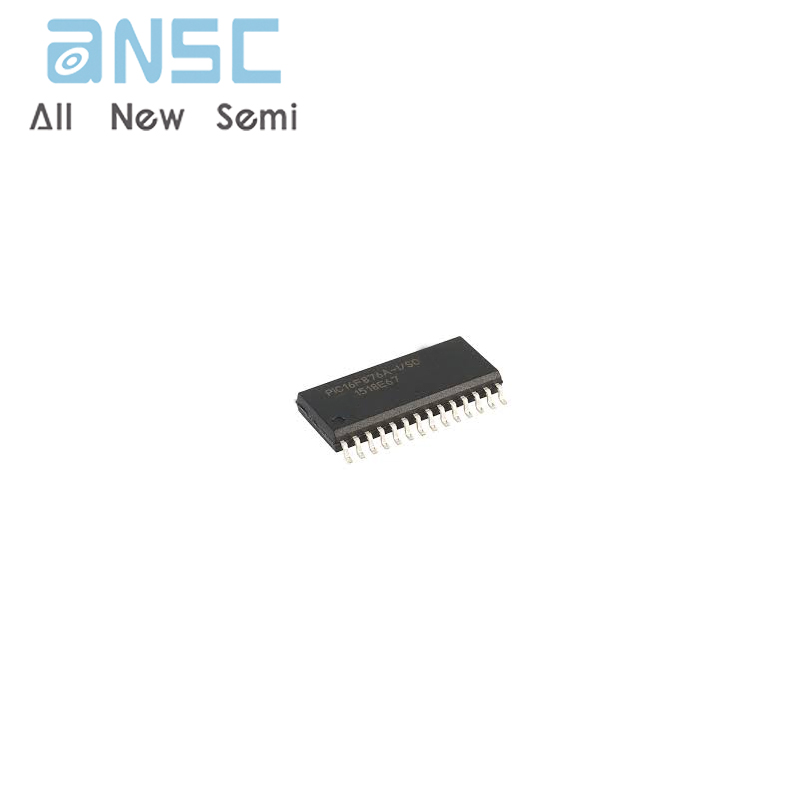

Spot sales of PIC16F876A-I/SO 28/40/44-Pin Enhanced Flash Microcontrollers SOP28

Product Features

High-Performance RISC CPU:

• Only 35 single-word instructions to learn

• All single-cycle instructions except for program branches, which are two-cycle

• Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

• Up to 8K x 14 words of Flash Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM),

Up to 256 x 8 bytes of EEPROM Data Memory

• Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Two Capture, Compare, PWM modules

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• Synchronous Serial Port (SSP) with SPI (Master mode) and I2C™ (Master/Slave)

• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for Brown-out Reset (BOR)

Analog Features:

• 10-bit, up to 8-channel Analog-to-Digital Converter (A/D)

• Brown-out Reset (BOR)

• Analog Comparator module with:

- Two analog comparators

- Programmable on-chip voltage reference (VREF) module

- Programmable input multiplexing from devic inputs and internal voltage reference

- Comparator outputs are externally accessible

Special Microcontroller Features:

• 100,000 erase/write cycle Enhanced Flash program memory typical

• 1,000,000 erase/write cycle Data EEPROM memory typical

• Data EEPROM Retention > 40 years

• Self-reprogrammable under software control

• In-Circuit Serial Programming™ (ICSP™) via two pins

• Single-supply 5V In-Circuit Serial Programming

• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• Programmable code protection

• Power saving Sleep mode

• Selectable oscillator options

• In-Circuit Debug (ICD) via two pins

CMOS Technology:

• Low-power, high-speed Flash/EEPROM technology

• Fully static design

• Wide operating voltage range (2.0V to 5.5V)

• Commercial and Industrial temperature ranges

• Low-power consumption

Product Specifications

Product photos

For more product information, please download the PDF
