You can contact me for the best price UPD70320GJ-8-5BG IC 16-Bit MCU, 8MHz, 5V, 94-Pin PQFP, Industrial
Manufacturer
Manufacturer Product Number
UPD70320GJ-8-5BG
Description
UPD70320GJ-8-5BG IC 16-Bit MCU, 8MHz, 5V, 94-Pin PQFP, Industrial Hot sale Original
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| UPD70320GJ-8-5BG Overview ICs for MICROCONTROLLER uPs/uCs/peripheral parts. In addition, MCU chip comes with a 16-bit size. The system has YES channels for DMA communication. This MCU Chip uses NO PWM channels to operate. In total, it has 94 pins. UPD70320GJ-8-5BG Applications UPD70320GJ-8-5BG Microcontroller applications. Radio Television Heater/Fan Calculator Kindle Christmas lights 3D printers Washing machine Microwave ovens Home appliances |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - UPD70320GJ-8-5BG |
| Part Package Code | QFP |
| Package Description | Qfp |
| Pin Count | 94 |
| Has ADC | No |
| Address Bus Width | 20 |
| Bit Size | 16 |
| Clock Frequency-Max | 16 Mhz |
| DAC Channels | No |
| DMA Channels | Yes |
| External Data Bus Width | 8 |
| JESD-30 Code | S-PQFP-G94 |
| Length | 20 Mm |
| Number of I/O Lines | 32 |
| Number of Terminals | 94 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| PWM Channels | No |
| Package Body Material | Plastic/Epoxy |
| Package Code | QFP |
| Package Shape | Square |
| Package Style | Flatpack |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4 Mm |
| Speed | 8 Mhz |
| Supply Current-Max | 120 Ma |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Industrial |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.8 Mm |
| Terminal Position | Quad |
| Width | 20 Mm |
| uPs/uCs/Peripheral ICs Type | Microcontroller |

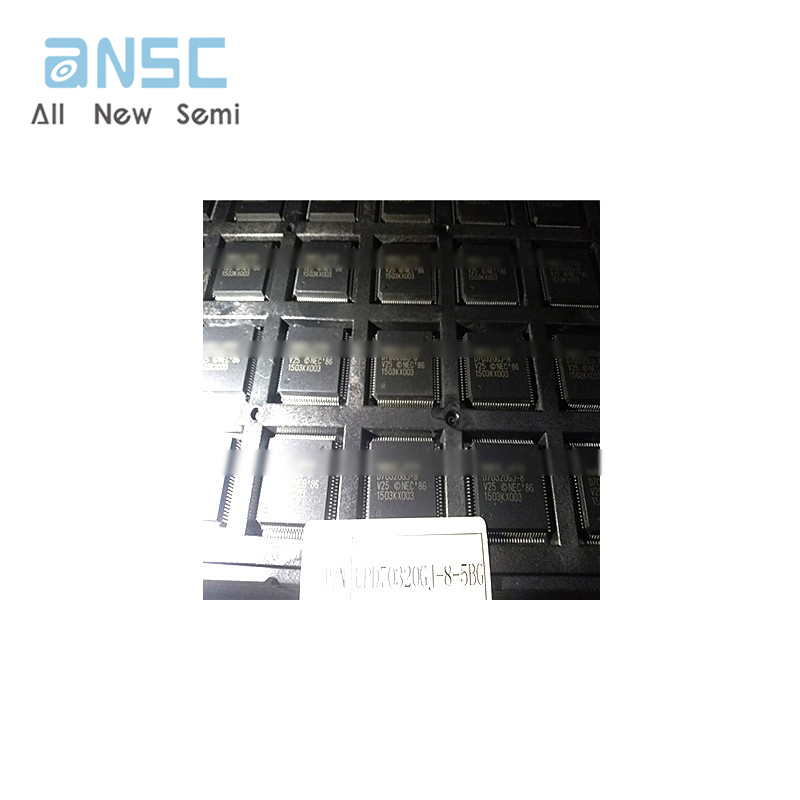

Actual image of the product

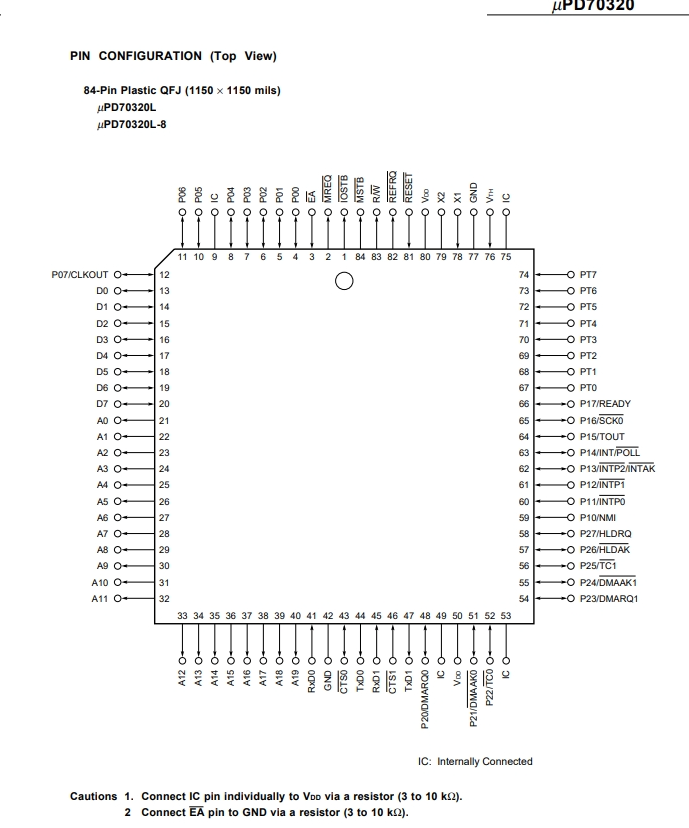

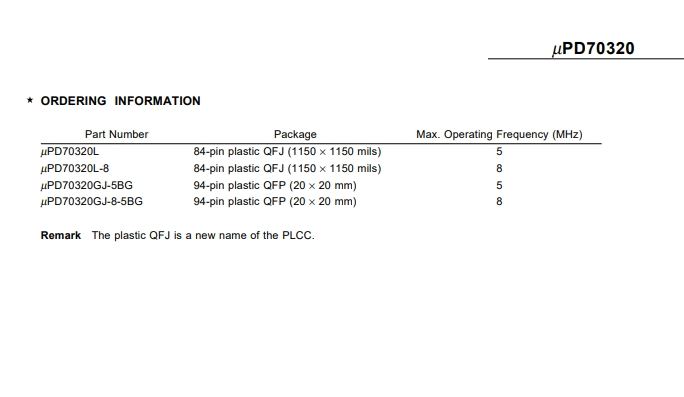

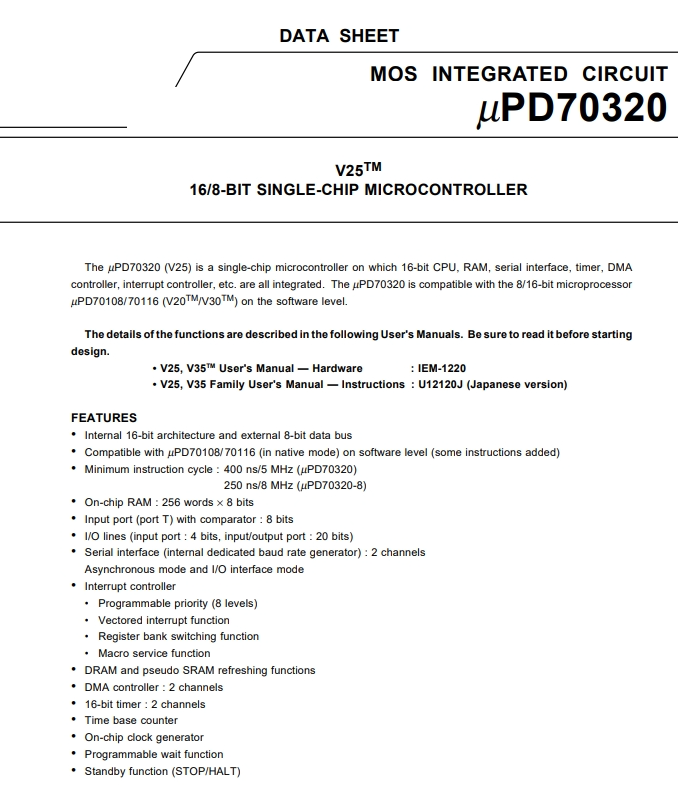

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
