Hot-selling and scarce SST89V516RD2-33-C-NJE Microcontroller IC 8-Bit 33MHz 72KB FLASH 44-PLCC

Product Descriptions

The SST89E516RDx and SST89V516RDx are members of the FlashFlex family of 8-bit microcontroller products designed and manufactured with SST’s patented and proprietary SuperFlash CMOS semiconductor process technology. The split-gate cell design and thick-oxide tunneling injector offer significant cost and reliability benefits for SST’s customers. The devices use the 8051 instruction set and are pin-for-pin compatible with standard 8051 microcontroller devices.

The devices come with 72 KByte of on-chip flash EEPROM program memory which is partitioned into 2 independent program memory blocks. The primary Block 0 occupies 64 KByte of internal program memory space and the secondary Block 1 occupies 8 KByte of internal program memory space.

The 8-KByte secondary block can be mapped to the lowest location of the 64 KByte address space; it can also be hidden from the program counter and used as an independent EEPROM-like data memory.

In addition to the 72 KByte of EEPROM program memory on-chip and 1024 x8 bits of on-chip RAM, the devices can address up to 64 KByte of external program memory and up to 64 KByte of external RAM.

Product Features

• 8-bit 8051-Compatible Microcontroller (MCU) with Embedded SuperFlash Memory

– Fully Software Compatible

– Development Toolset Compatible

– Pin-For-Pin Package Compatible

• SST89E516RD2 Operation

– 0 to 40 MHz at 5V

• SST89V516RD2 Operation

– 0 to 33 MHz at 3V

• 1 KByte Internal RAM

• Dual Block SuperFlash EEPROM

– 64 KByte primary block + 8 KByte secondary block (128-Byte sector size for both blocks)

– Individual Block Security Lock with SoftLock

– Concurrent Operation during In-Application Programming (IAP)

– Memory Overlay for Interrupt Support during IAP

• Support External Address Range up to 64 KByte of Program and Data Memory

• Three High-Current Drive Ports (16 mA each)

• Three 16-bit Timers/Counters

• Full-Duplex, Enhanced UART

– Framing Error Detection

– Automatic Address Recognition

• Ten Interrupt Sources at 4 Priority Levels

– Four External Interrupt Inputs

• Programmable Watchdog Timer (WDT)

• Programmable Counter Array (PCA)

• Four 8-bit I/O Ports (32 I/O Pins) and One 4-bit Port

• Second DPTR register

• Low EMI Mode (Inhibit ALE)

• SPI Serial Interface

• Standard 12 Clocks per cycle, the device has an option to double the speed to 6 clocks per cycle.

• TTL- and CMOS-Compatible Logic Levels

• Brown-out Detection

• Low Power Modes

– Power-down Mode with External Interrupt Wake-up

– Idle Mode

• Temperature Ranges:

– Commercial (0°C to +70°C)

– Industrial (-40°C to +85°C)

• Packages Available

– 40-contact WQFN (Port 4 feature not available)

– 44-lead PLCC

– 40-pin PDIP (Port 4 feature not available)

– 44-lead TQFP

• All non-Pb (lead-free) devices are RoHS compliant

Product Specification

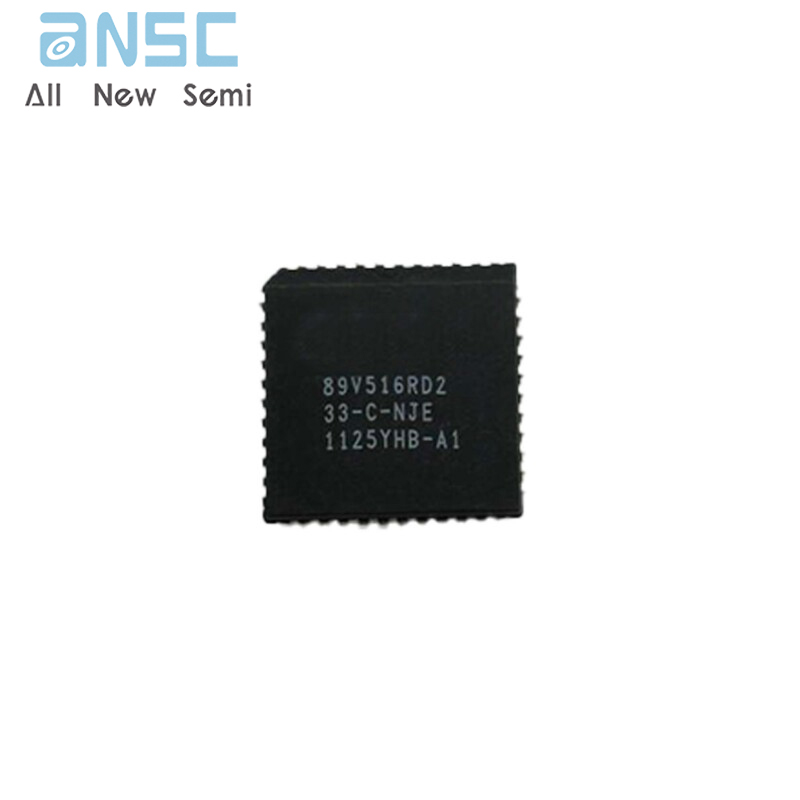

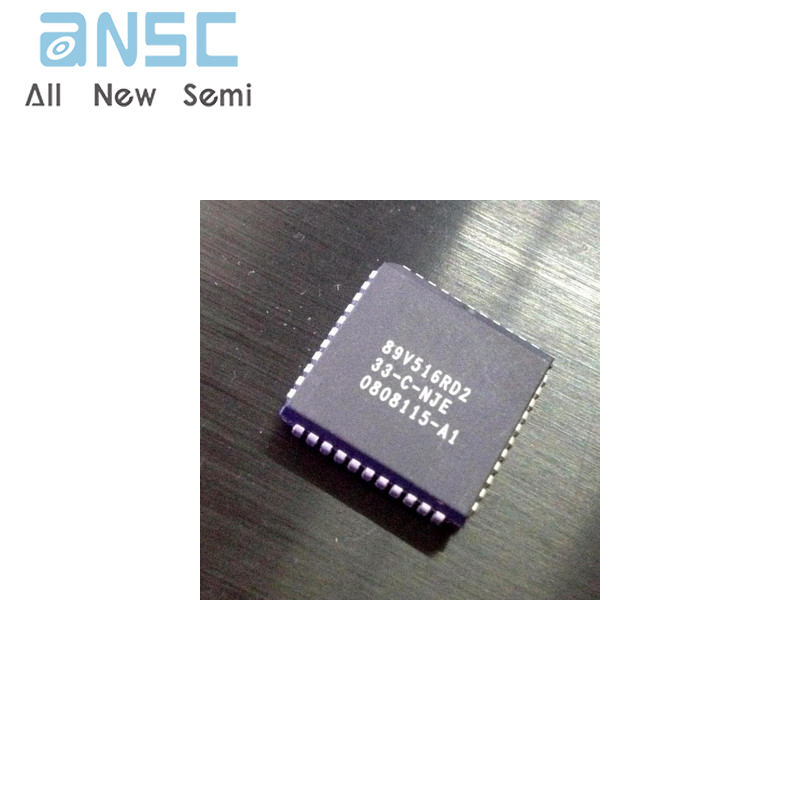

Product Photos

For more product information, please download the PDF
