Hot-selling and scarce MC9S12C128CFU Microcontrollers IC QFP80 spot stock

Product Descriptions

The MC9S12C-Family / MC9S12GC-Family are 48/52/80 pin Flash-based MCU families, which deliver the power and flexibility of the 16-bit core to a whole new range of cost and space sensitive, general purpose industrial and automotive network applications. All MC9S12C-Family / MC9S12GC-Family members feature standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of Flash EEPROM, up to 4K bytes of RAM, an asynchronous serial communications interface (SCI), a serial peripheral interface (SPI), an 8-channel 16-bit timer module (TIM), a 6-channel 8-bit pulse width modulator (PWM), an 8-channel, 10-bit analog-to-digital converter (ADC).

The MC9S12C128-Family members also feature a CAN 2.0 A, B software compatible module (MSCAN12).

All MC9S12C-Family / MC9S12GC-Family devices feature full 16-bit data paths throughout. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements. In addition to the I/O ports available in each module, up to 10 dedicated I/O port bits are available with wake-up capability from stop or wait mode. The devices are available in 48-, 52-, and 80- pin QFP packages, with the 80-pin version pin compatible to the HCS12 A, B, and D Family derivatives.

Product Features

• 16-bit HCS12 core:

— HCS12 CPU

– Upward compatible with M68HC11 instruction set

– Interrupt stacking and programmer’s model identical to M68HC11

– Instruction queue

– Enhanced indexed addressing

— MMC (memory map and interface)

— INT (interrupt control)

— BDM (background debug mode)

— DBG12 (enhanced debug12 module, including breakpoints and change-of-flow trace buffer)

— MEBI (multiplexed expansion bus interface) available only in 80-pin package version

• Wake-up interrupt inputs:

— Up to 12 port bits available for wake up interrupt function with digital filtering

• Memory options:

— 16K or 32Kbyte Flash EEPROM (erasable in 512-byte sectors) 64K, 96K, or 128Kbyte Flash EEPROM (erasable in 1024-byte sectors)

— 1K, 2K or 4K Byte RAM

• Analog-to-digital converters:

— One 8-channel module with 10-bit resolution

— External conversion trigger capability

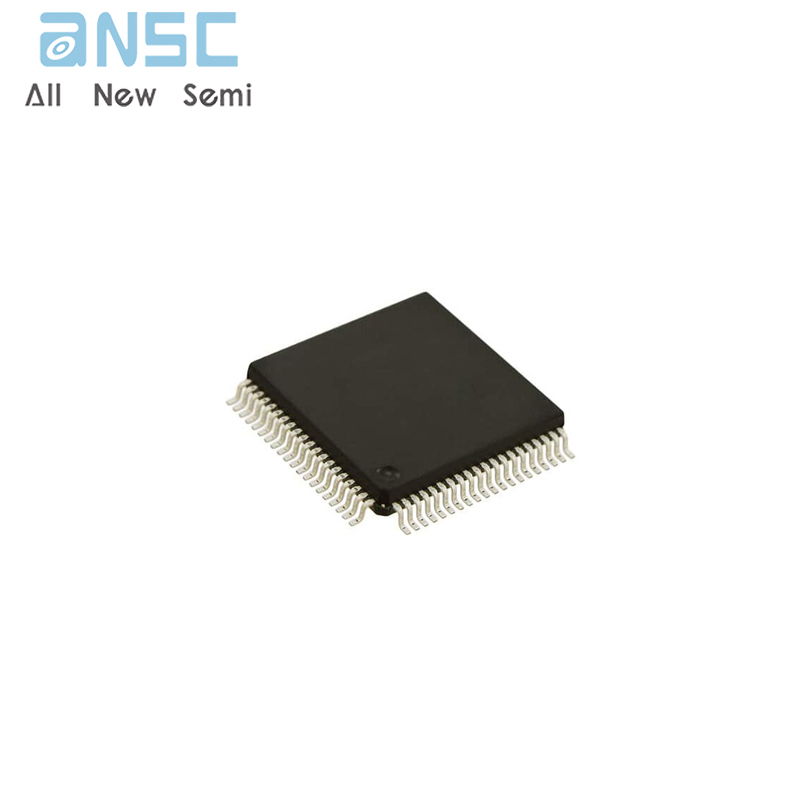

Product Photos

For more product information, please download the PDF
