Products Features

◆ Memory

- OTP: 2Kx16

- Universal RAM: 176x8

◆ 8-level stack buffer

◆ Look-up table function

◆ Short and clear instruction system (68 instructions)

◆ Built-in low voltage detection circuit

◆ Interrupt sources

- 2 timer interrupts

- RA, RB ports interrupt on change

- Other peripheral interrupts

◆ Timer

- 8-bit timer TIMER0, TIMER2

◆ PWM module

- 5-channel PWM output, selectable polarity

- 4-channel PWM with shared period, independent duty cycle

- 1-channel PWM with shared period, independent duty cycle

- 10-bit PWM accuracy

◆ Operating voltage: 2.6V—5.5V@16MHz

1.8V—5.5V@8MHz

Operating temperature: -40℃—85℃

◆ Built-in high-precision RC oscillator: designed frequency of 8MHz/16MHz

◆ Instruction period (single or dual instruction)

◆ Built-in LCD1/2 Bias COM drive module

- SEG/COM outputs are optional for all I/O ports (except RB2).

- Drive current is selectable for all I/O ports (except RB2)

◆ Built-in high precision 1.2V reference voltage

- ±1.5 PERCENT @VDD=2.5V~5.5V TA=25℃

- ±2 PERCENT @VDD=2.5V~5.5V TA=-40℃~85℃

◆ High-precision 12-bit ADC

- The reference voltage can be selected from 2V, 2.4V, and VDD.

◆ LVD module

- Supports multiple voltage options: 2.2V/ 2.4V/2.7V/ 3.0V/ 3.3V/3.7V/4.0V/4.3V

Specifications

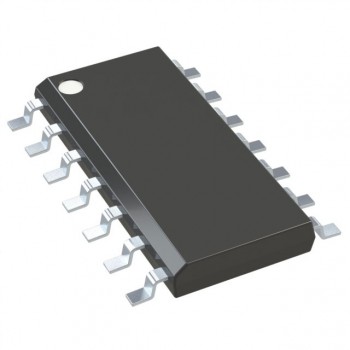

Actual product photos
