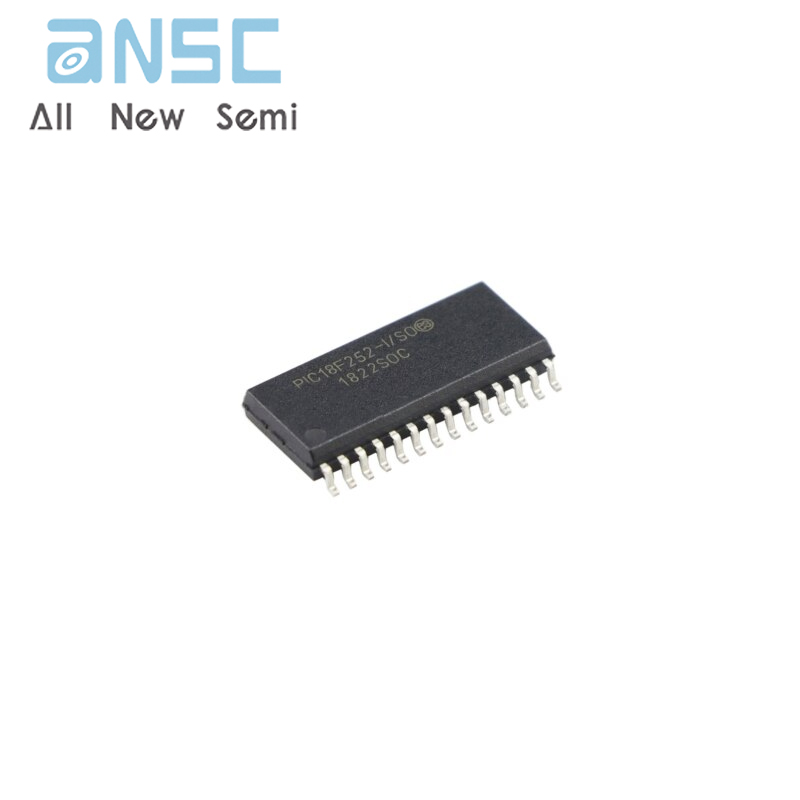

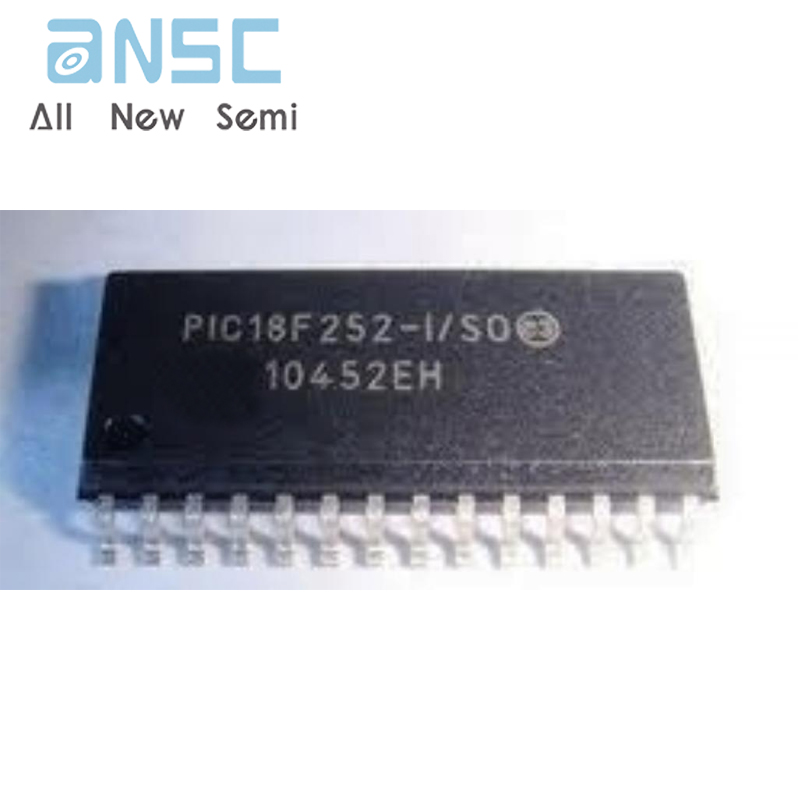

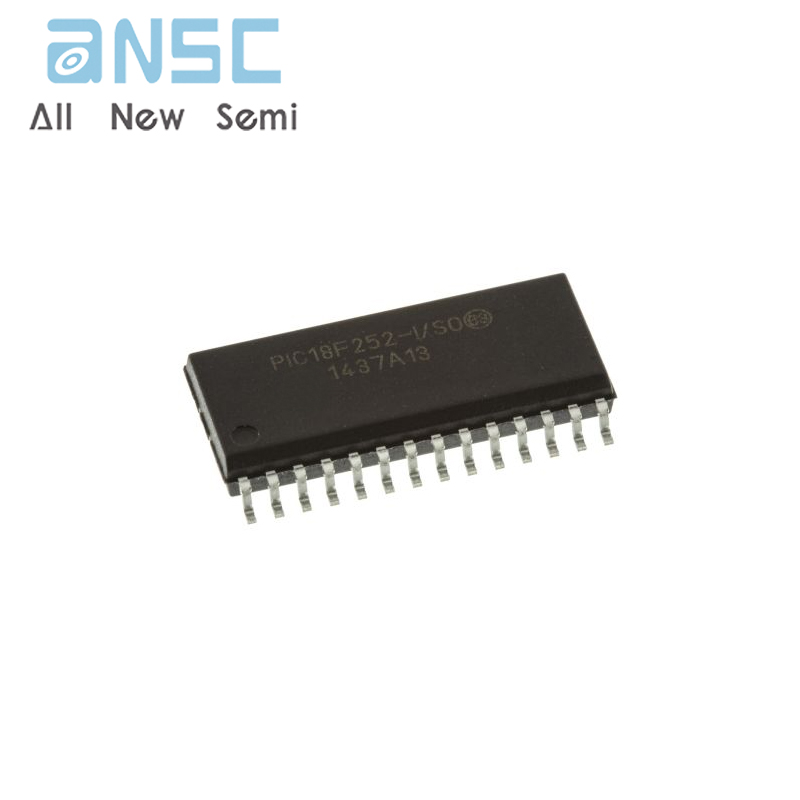

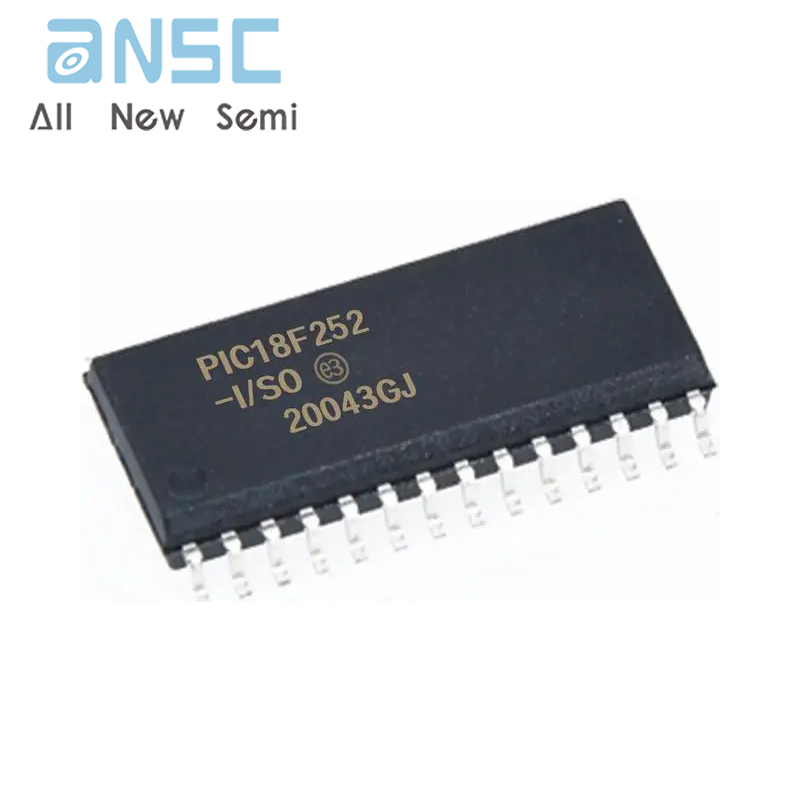

Spot sales of PIC18F252-I/SO High-Performance, Enhanced Flash Microcontrollers with 10-Bit A/D SOP28

Manufacturer Product Number

PIC18F252-I/SO

Description

PIC18F252-I/SO High-Performance, Enhanced Flash Microcontrollers with 10-Bit A/D SOP28

Package Condition

Tube

Datasheet

PIC18F252-I/SO

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

• High current sink/source 25 mA/25 mA

• Three external interrupt pins

• Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler

• Timer1 module: 16-bit timer/counter

• Timer2 module: 8-bit timer/counter with 8-bit period register (time-base for PWM)

• Timer3 module: 16-bit timer/counter

• Secondary oscillator clock option - Timer1/Timer3

• Two Capture/Compare/PWM (CCP) modules. CCP pins that can be configured as:

- Capture input: capture is 16-bit, max. resolution 6.25 ns (TCY/16)

- Compare is 16-bit, max. resolution 100 ns (TCY)

- PWM output: PWM resolution is 1- to 10-bit, max. PWM freq. @: 8-bit resolution = 156 kHz 10-bit resolution = 39 kHz

• Master Synchronous Serial Port (MSSP) module, Two modes of operation:

- 3-wire SPI™ (supports all 4 SPI modes)

- I2C™ Master and Slave mode

Product Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-PIC18F252-I/SO
Category	Integrated Circuits (ICs)
	Embedded
	Microcontrollers
Mfr	-
Series	PIC® 18F
Packaging	Tube
Part Status	Active
DigiKey Programmable	Verified
Core Processor	PIC
Core Size	8-Bit
Speed	40MHz
Connectivity	I2C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Number of I/O	23
Program Memory Size	32KB (16K x 16)
Program Memory Type	FLASH
EEPROM Size	256 x 8
RAM Size	1.5K x 8
Voltage - Supply (Vcc/Vdd)	4.2V ~ 5.5V
Data Converters	A/D 5x10b
Oscillator Type	External
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	28-SOIC
Package / Case	28-SOIC (0.295", 7.50mm Width)
Base Product Number	PIC18F252
