Hot sale Original MC68332ACEH20 IC MCU 32BIT ROMLESS 132PQFP Microcontroller IC 32-Bit 20MHz ROMless 132-PQFP

Manufacturer Product Number
MC68332ACEH20
Description

MC68332ACEH20 IC MCU 32BIT ROMLESS 132PQFP Microcontroller IC 32-Bit 20MHz ROMless 132-PQFP

Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

The MC68332, a highly-integrated 32-bit microcontroller, combines high-performance data manipula tion capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications.

Features
• Central Processing Unit (CPU32)
— 32-Bit Architecture
— Virtual Memory Implementation
— Table Lookup and Interpolate Instruction
— Improved Exception Handling for Controller Applications
— High-Level Language Support
— Background Debugging Mode
— Fully Static Operation
• System Integration Module (SIM)
— External Bus Support
— Programmable Chip-Select Outputs
— System Protection Logic
— Watchdog Timer, Clock Monitor, and Bus Monitor
— Two 8-Bit Dual Function Input/Output Ports
— One 7-Bit Dual Function Output Port
— Phase-Locked Loop (PLL) Clock System
• Time Processor Unit (TPU)
— Dedicated Microengine Operating Independently of CPU32
— 16 Independent, Programmable Channels and Pins
— Any Channel can Perform any Time Function
— Two Timer Count Registers with Programmable Prescalers
— Selectable Channel Priority Levels
• Queued Serial Module (QSM)
— Enhanced Serial Communication Interface
— Queued Serial Peripheral Interface
— One 8-Bit Dual Function Port
• Static RAM Module with TPU Emulation Capability (TPURAM)
— 2-Kbytes of Static RAM
— May be Used as Normal RAM or TPU Microcode Emulation RAM

Product Description

Type Description
ANSC PART# ANSC - MC68332ACEH20
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Original
Series M683xx
Packaging Tray
Part Status Not For New Designs
DigiKey Programmable Not Verified
Core Processor CPU32
Core Size 32-Bit
Speed 20MHz
Connectivity EBI/EMI, SCI, SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 15
Program Memory Size -
Program Memory Type ROMless
EEPROM Size -
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters -
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 132-PQFP (24.13x24.13)
Package / Case 132-BQFP Bumpered
Base Product Number MC68332

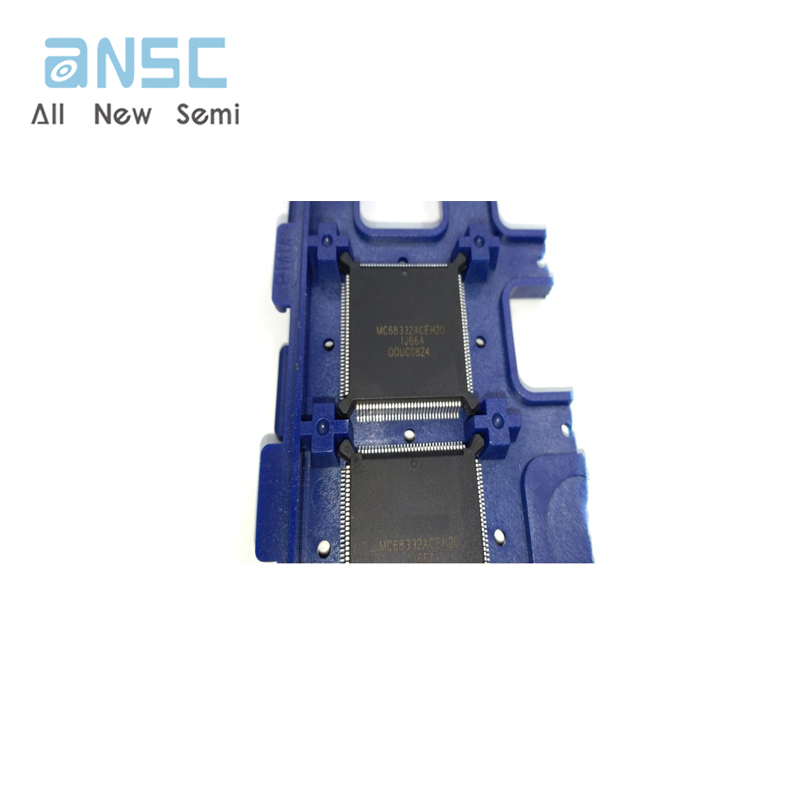

Actual image of the product

MC68332ACEH20

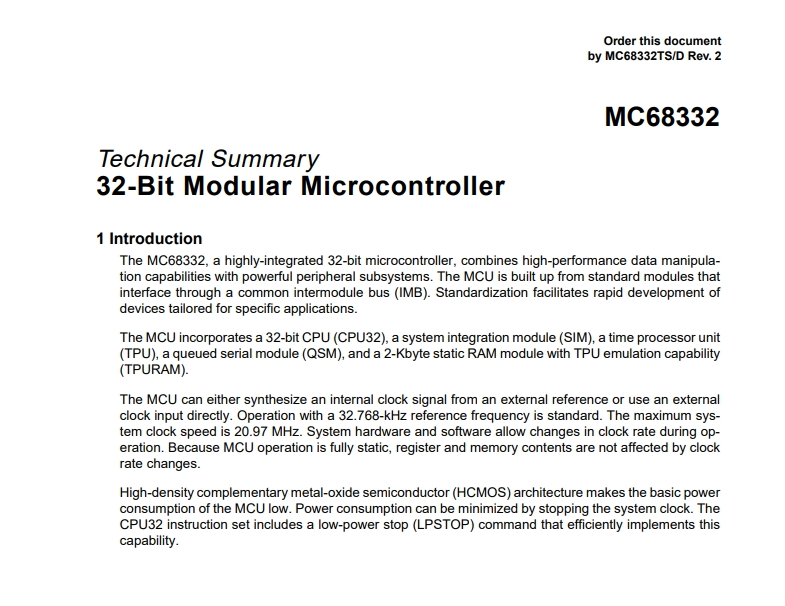

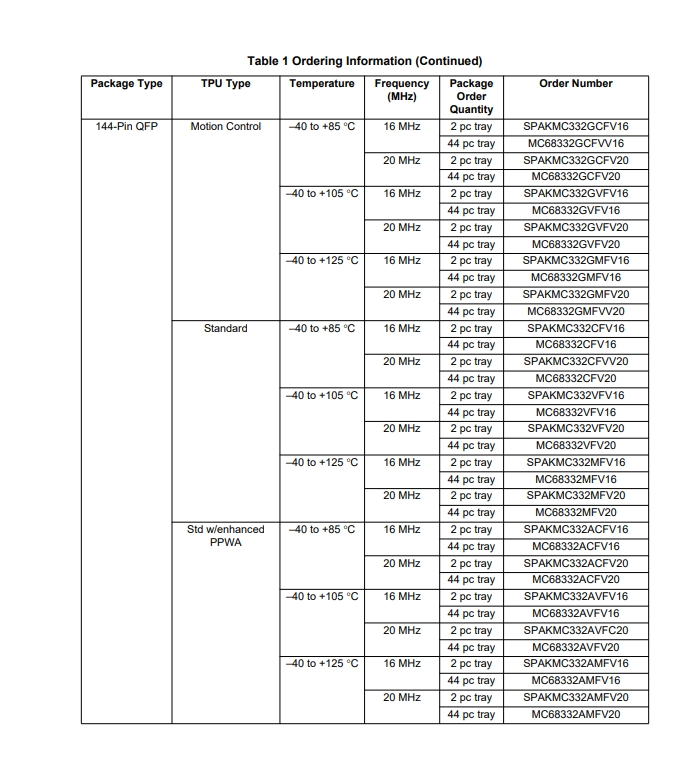

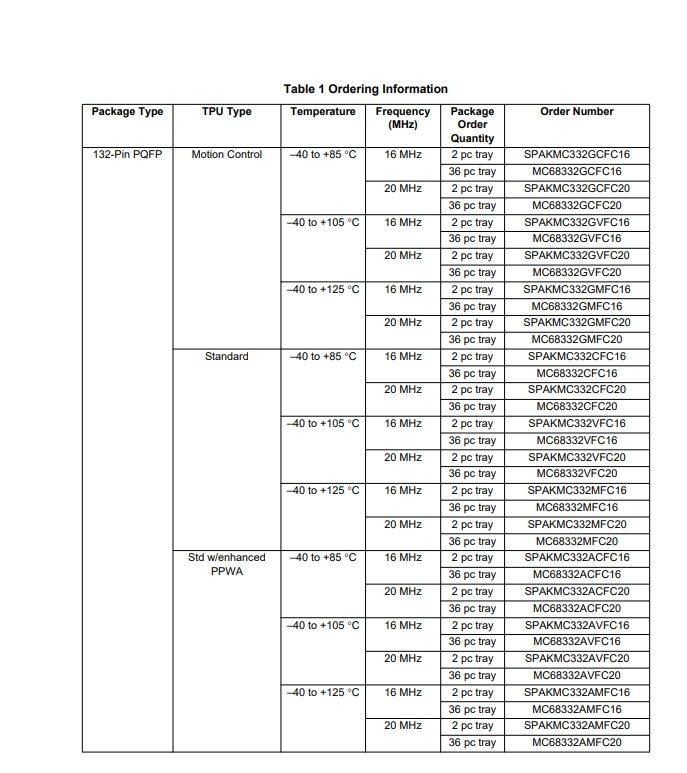

Product datasheet

For more information, please download
