Hot-selling and scarce MC908AZ60ACFU Microcontroller IC 8-Bit 8.4MHz 60KB FLASH 64-QFP spot stock

Product Descriptions

The MC68HC908AS60A, MC68HC908AZ60A, and MC68HC908AZ60E are members of the low-cost,  high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the  enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory  sizes and types, and package types.

These parts are designed to emulate the MC68HC08ASxx and MC68HC08AZxx automotive families and  may offer extra features which are not available on those devices. It is the user’s responsibility to ensure  compatibility between the features used on the MC68HC908AS60A, MC68HC908AZ60A, and  MC68HC908AZ60E and those which are available on the device which will ultimately be used in the  application.

Product Features

• High-Performance M68HC08 Architecture

• Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families

• 8.4 MHz Internal Bus Frequency

• 60 Kbytes of FLASH Electrically Erasable Read-Only Memory (FLASH)

• FLASH Data Security

• 1 Kbyte of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM)

• 2 Kbyte of On-Chip RAM

• Clock Generator Module (CGM)

• Serial Peripheral Interface Module (SPI)

• Serial Communications Interface Module (SCI)

• 8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)

• 16-Bit, 6-Channel Timer Interface Module (TIMA-6)

• Programmable Interrupt Timer (PIT)

• System Protection Features

– Computer Operating Properly (COP) with Optional Reset

– Low-Voltage Detection with Optional Reset

– Illegal Opcode Detection with Optional Reset

– Illegal Address Detection with Optional Reset

• Low-Power Design (Fully Static with Stop and Wait Modes)

Product Specification

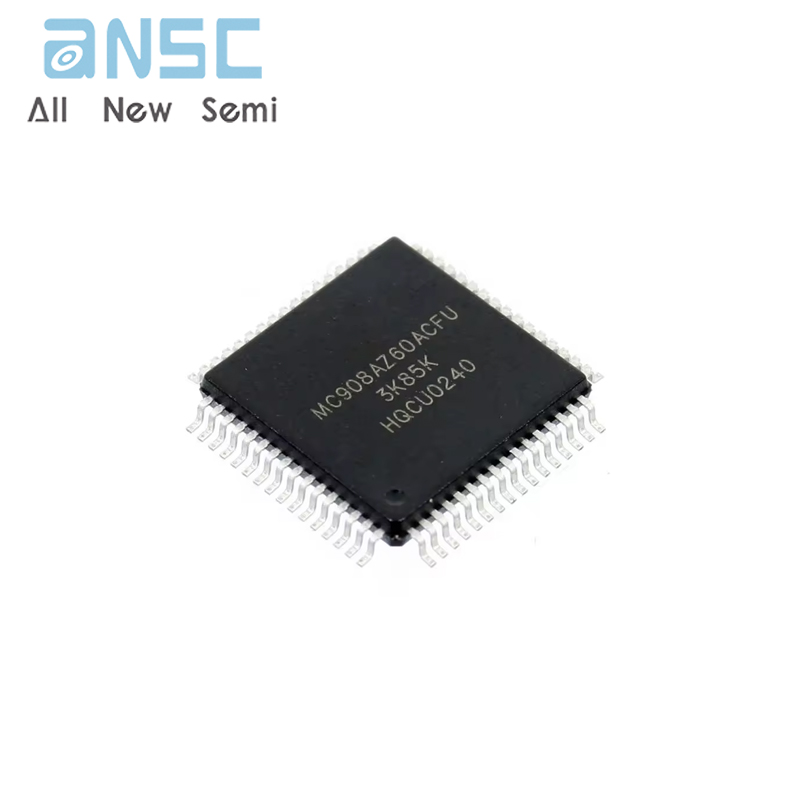

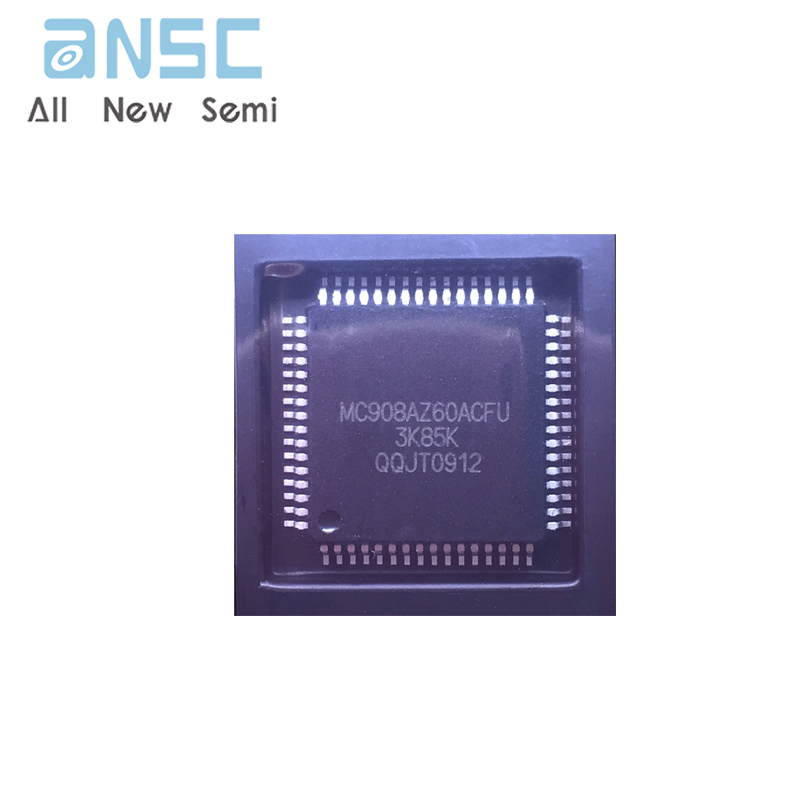

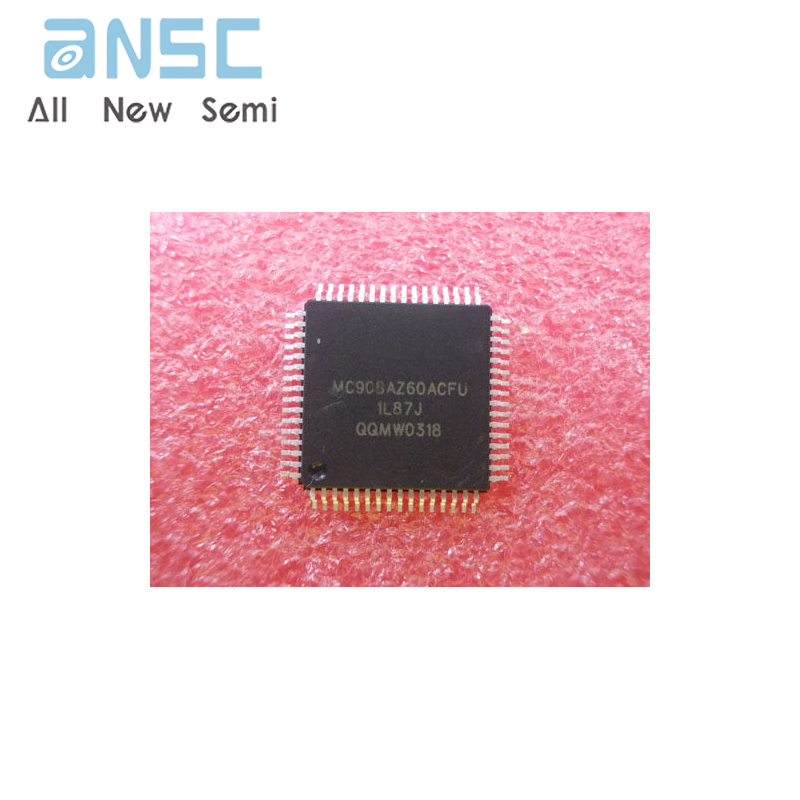

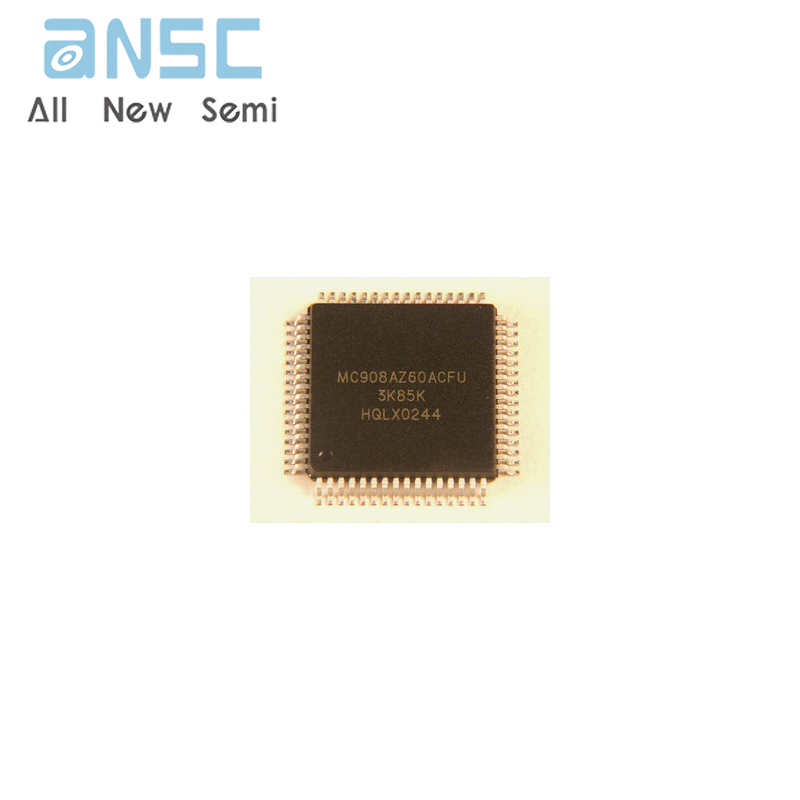

Product Photos

、

For more product information, please download the PDF
