Hot sale Original PT2258-S Volume Control Circuit 6 Channel(s) CMOS PDSO20 SOP-20 Audio Control ICs

Manufacturer Product Number
PT2258-S
Description

PT2258-S Volume Control Circuit 6 Channel(s) CMOS PDSO20 SOP-20 Audio Control ICs

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​


DESCRIPTION
PT2258 is a 6-Channel Electronic Volume Controller IC utilizing CMOS Technology specially designed for the new generation of AV Multi-Channel Audio System. PT2258 provides an I2C Control Interface, an attenuation range of 0 to -79dB at 1dB/step, low noise, and high channel separation. Housed in 20 pins, DIP or SOP, PT2258’s pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.

FEATURES
• CMOS Technology
• Low Power Consumption
• Least External Components
• Attenuation Range: 0 to -79dB at 1dB/step
• Operating Voltage: 5 to 9 V
• Low Noise, S/N Ratio>100dB (A-weighting)
• High Channel Separation
• I2C Bus Control Interface
• Selectable Address
• 6-Channel Outputs
• Available in 20 pins, DIP or SOP

APPLICATIONS
• AV Surround Audio Equipment
• Car Audio
• Mini Compo
• Computer Multi-Media Speaker
• Other Audio Equipments

Product Description

Type# Description
ANSC PART# ANSC- PT2258-S
Ihs Manufacturer Original
Package Description SOP-20
Consumer IC Type VOLUME CONTROL CIRCUIT
JESD-30 Code R-PDSO-G20
Number of Channels 6
Number of Functions 1
Number of Terminals 20
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Supply Voltage-Max (Vsup) 9 V
Supply Voltage-Min (Vsup) 5 V
Surface Mount YES
Technology CMOS
Terminal Form GULL WING
Terminal Position DUAL

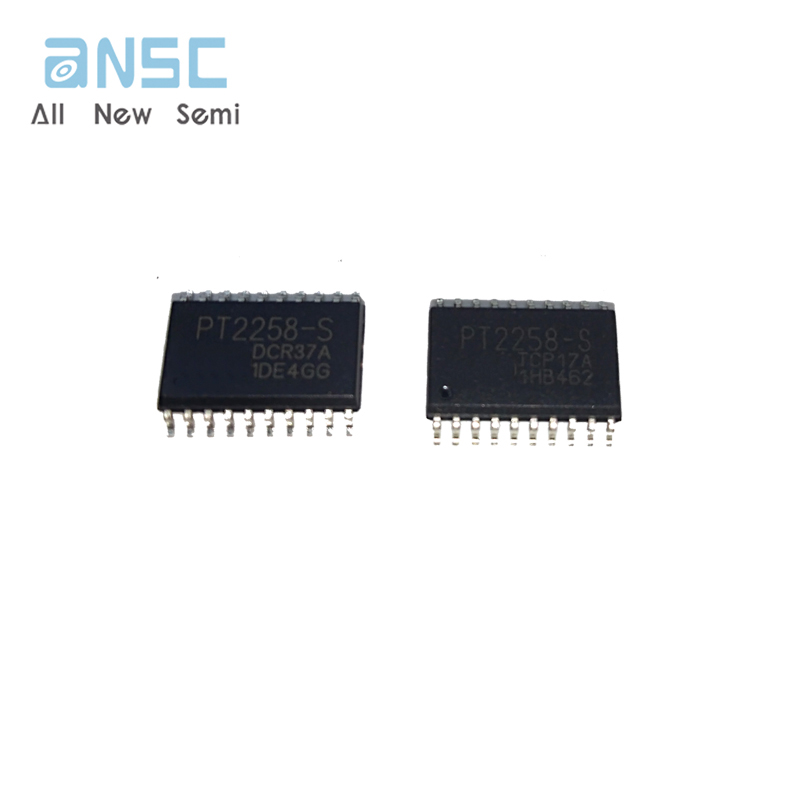

Actual image of the product





Payment&Transportation

详情8

Official Certificate&Certificate

2

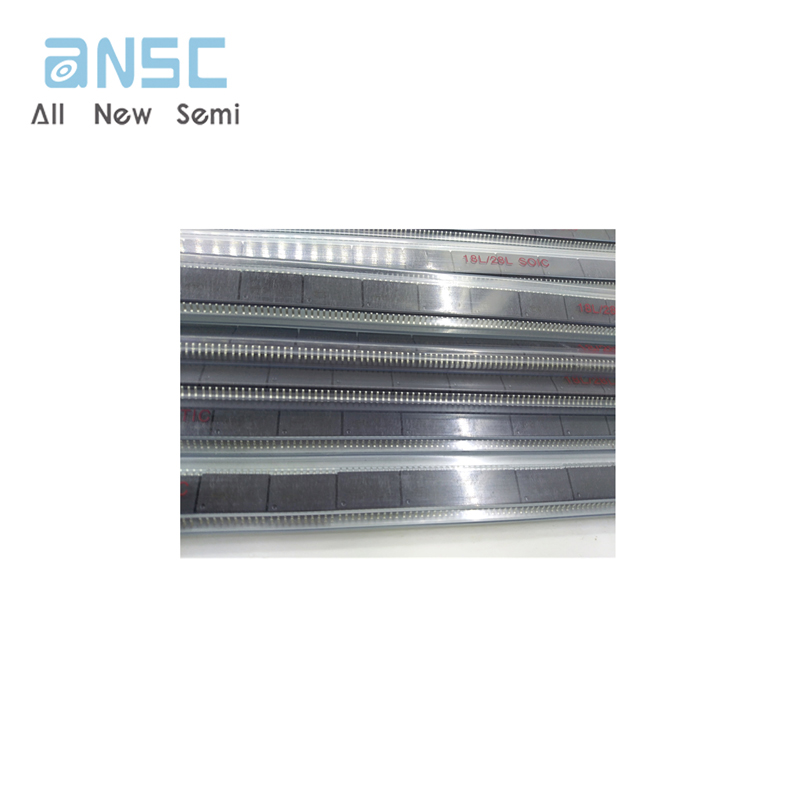

Standard packaging
