You can contact me for the best price RF2304 GENERAL PURPOSE LOW-NOISE AMPLIFIER Hot sale Original

Manufacturer Product Number
RF2304
Description

RF2304 GENERAL PURPOSE LOW-NOISE AMPLIFIER Hot sale Original

Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

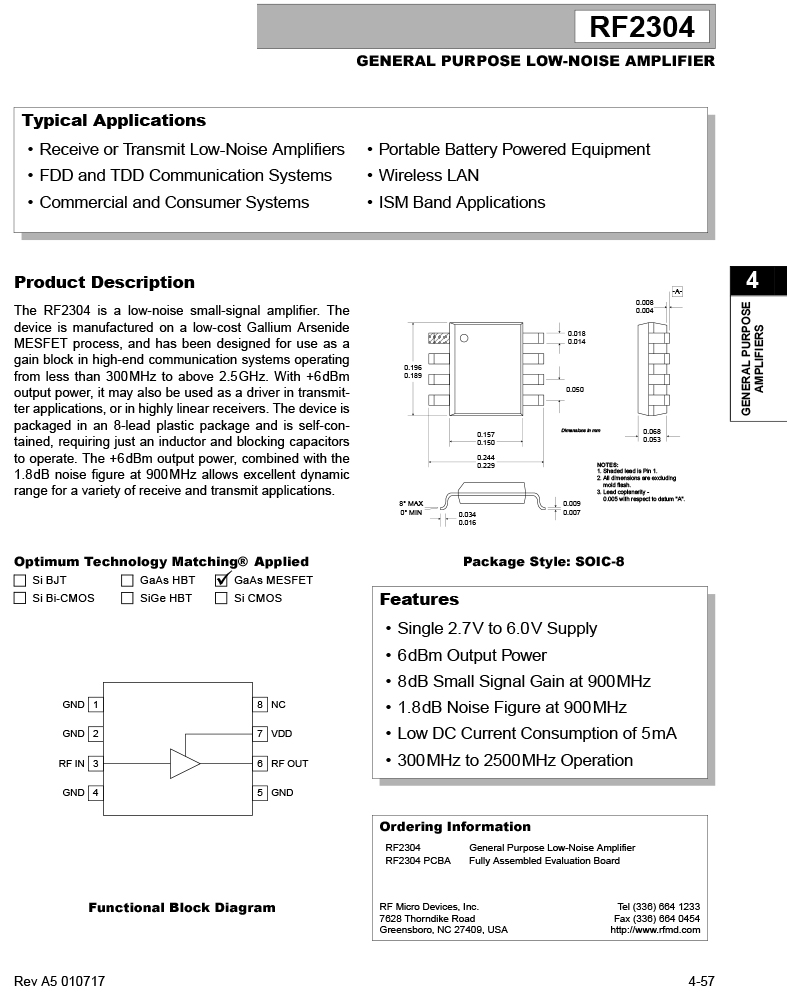

Product Description


Product Description
The RF2304 is a low-noise small-signal amplifier. The device is manufactured on a low-cost Gallium Arsenide MESFET process, and has been designed for use as a gain block in high-end communication systems operating from less than 300MHz to above 2.5GHz. With +6dBm output power, it may also be used as a driver in transmitter applications, or in highly linear receivers. The device is packaged in an 8-lead plastic package and is self-contained, requiring just an inductor and blocking capacitors to operate. The +6dBm output power, combined with the 1.8dB noise figure at 900MHz allows excellent dynamic range for a variety of receive and transmit applications.

Features
• Single 2.7V to 6.0V Supply
• 6dBm Output Power
• 8dB Small Signal Gain at 900MHz
• 1.8dB Noise Figure at 900MHz
• Low DC Current Consumption of 5mA
• 300MHz to 2500MHz Operation

Typical Applications
• Receive or Transmit Low-Noise Amplifiers
• FDD and TDD Communication Systems
• Commercial and Consumer Systems
• Portable Battery Powered Equipment
• Wireless LAN
• ISM Band Applications

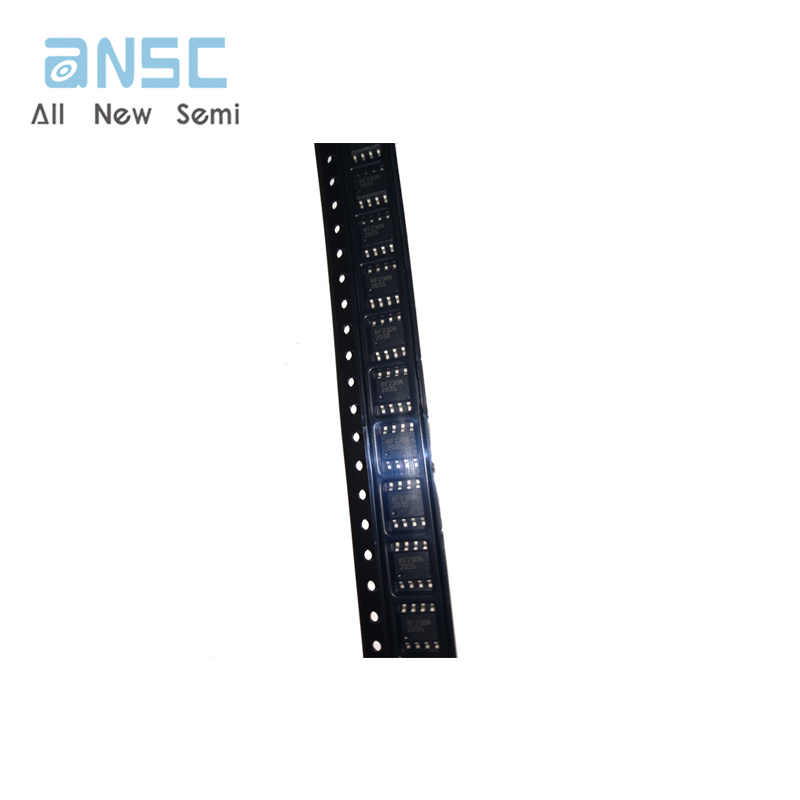

Actual image of the product

RF2304

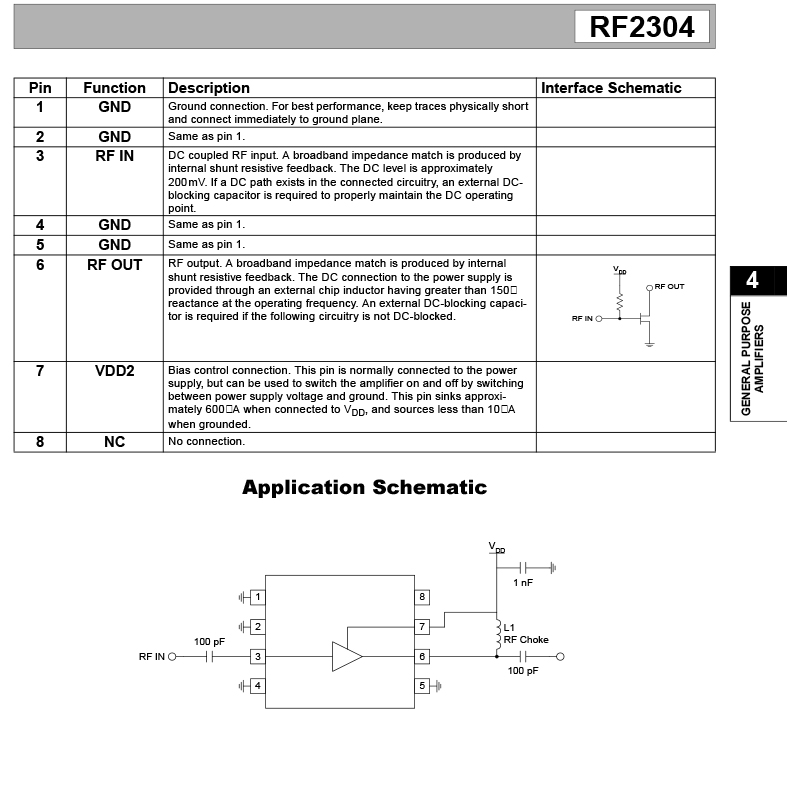

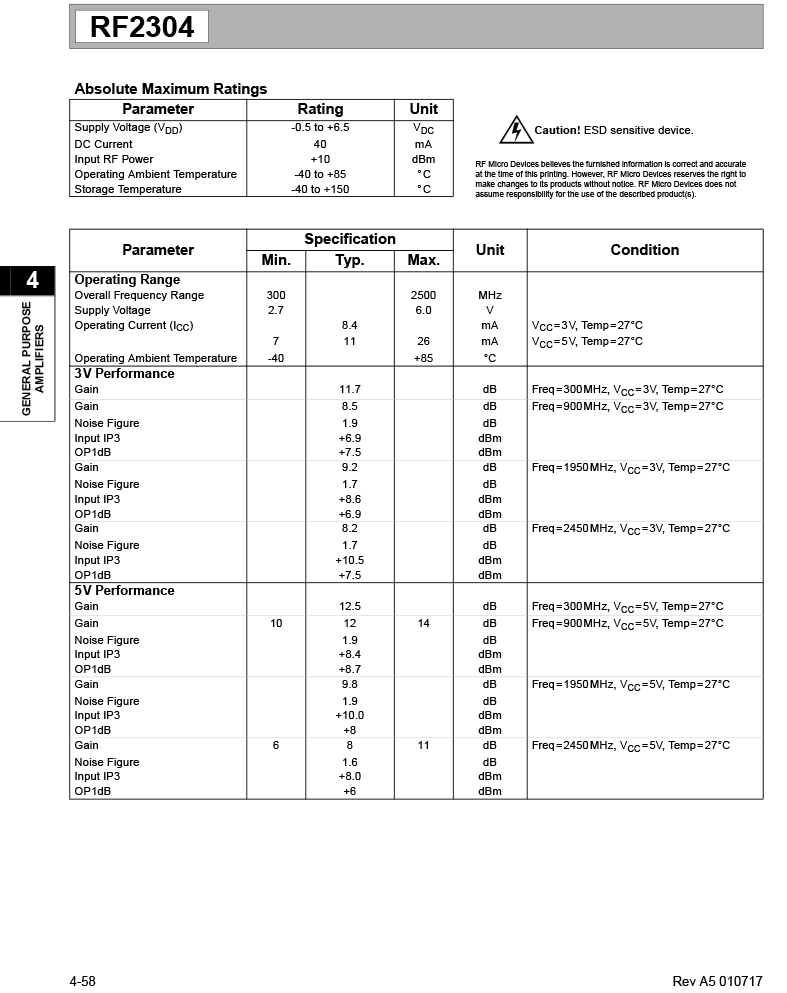

Product datasheet

For more information, please download
