Hot sale Original TS80C188EC20 Microprocessor, 16-Bit, 20MHz, CMOS, PQFP100, EIAJ, QFP-100
Manufacturer Product Number
TS80C188EC20
Description
TS80C188EC20 Microprocessor, 16-Bit, 20MHz, CMOS, PQFP100, EIAJ, QFP-100
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| TS80C188EC20 Overview Since the microprocessor is packed in QFP, shipping overseas is convenient. High reliability is achieved by using advanced packaging methods Bulk. It is a MICROPROCESSOR in terms of uPs/uCs/Peripheral ICs. The total number of terminations is 100. Turning on and running the embedded microprocessor with a 5V voltage supply should be possible. The architecture of the microprocessor is 16-bit. A CPU operates at a frequency of 20MHz. There is a wide width of 8 on the external data bus of this CPU. Injection of 100 pins into the body of the embedded microprocessor is carried out. There are many applications for this CPU, since it is Surface Mount mounted. In the datasheet, 5V power supplies are required for this embedded microprocessor. 5V is the core voltage of the CPU. There is a maximum voltage you can supply to the CPU of 100mA. Additional features of the embedded microprocessor include: DRAM REFRESH CONTROLLER; 3 PROGRAMMABLE TIMERS; EMULATION HARDWARE. There are 9 external interrupt terminations due to hardware interrupts. 2 serial I/O is set up to communicate data between peripherals. The Direct Memory Access (DMA) process is programmed with 4 channels. TS80C188EC20 Features 16-Bit Structure TS80C188EC20 Applications TS80C188EC20 Microprocessor applications. Instrument control Consumer electronics products Toys Robots Radio Television Heater/Fan Calculator Kindle Christmas lights |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TS80C188EC20 |
| Part Package Code | QFP |
| Package Description | Qfp, Qfp100,.7x.9,32 |
| Pin Count | 100 |
| Additional Feature | Dram Refresh Controller; 3 Programmable Timers; Emulation Hardware |
| Address Bus Width | 20 |
| Bit Size | 16 |
| Boundary Scan | No |
| Clock Frequency-Max | 40 Mhz |
| External Data Bus Width | 8 |
| Format | Fixed Point |
| Integrated Cache | No |
| JESD-30 Code | R-PQFP-G100 |
| JESD-609 Code | e0 |
| Length | 20 Mm |
| Low Power Mode | Yes |
| Number of DMA Channels | 4 |
| Number of External Interrupts | 9 |
| Number of Serial I/Os | 2 |
| Number of Terminals | 100 |
| On Chip Data RAM Width | |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | Plastic/Epoxy |
| Package Code | QFP |
| Package Equivalence Code | QFP100,.7X.9,32 |
| Package Shape | Rectangular |
| Package Style | Flatpack |
| Qualification Status | Not Qualified |
| RAM (words) | 0 |
| Seated Height-Max | 3.15 Mm |
| Speed | 20 Mhz |
| Supply Current-Max | 100 Ma |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Industrial |
| Terminal Finish | Tin Lead |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.65 Mm |
| Terminal Position | Quad |
| Width | 14 Mm |
| uPs/uCs/Peripheral ICs Type | Microprocessor |

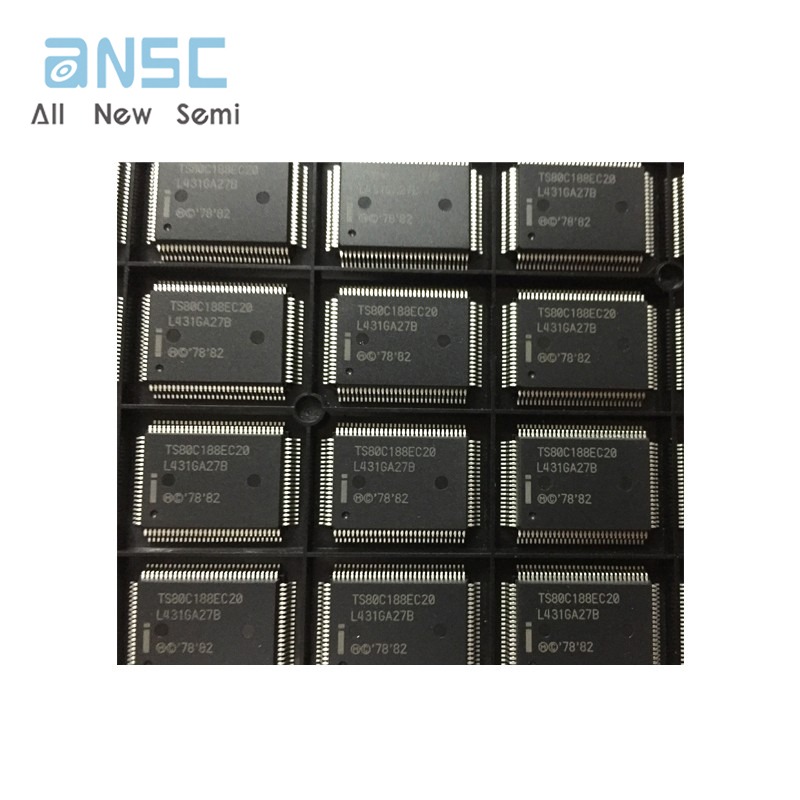

Actual image of the product

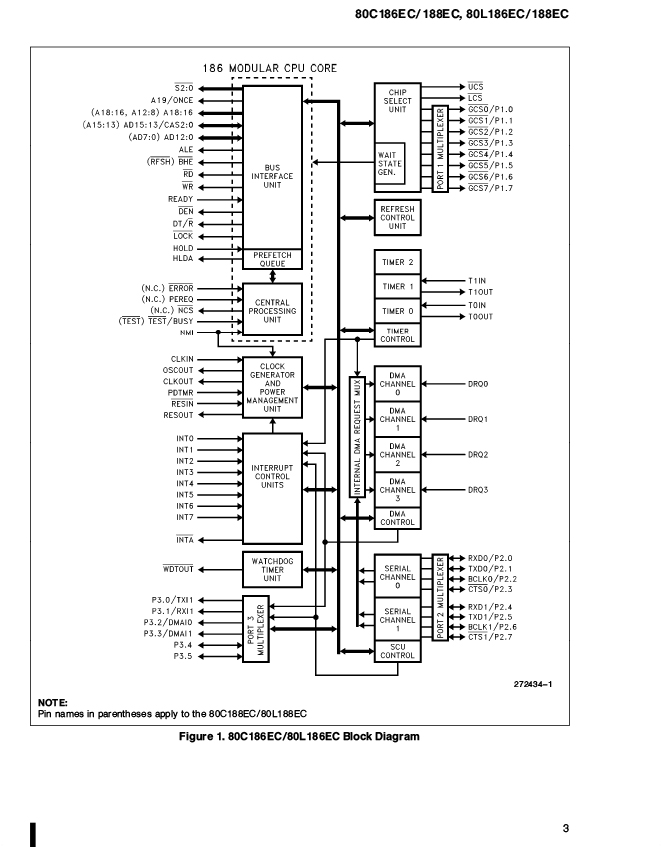

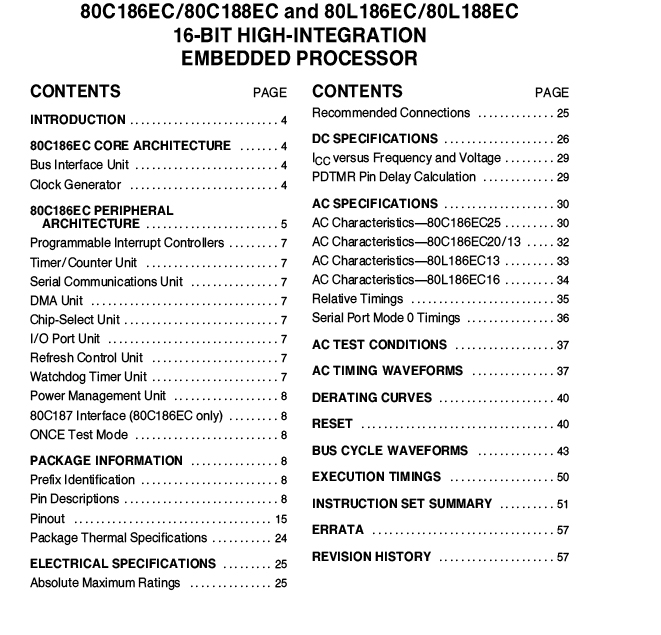

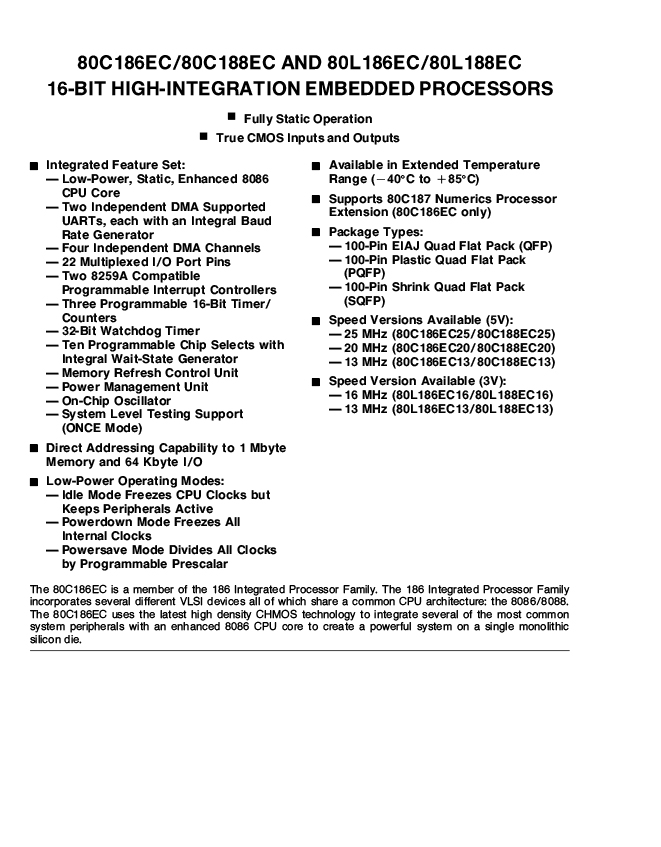

Product datasheet
