Hot sale Original AM27C512-200DI Memory IC UVPROM, 64KX8, 200ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28
Manufacturer Product Number
AM27C512-200DI
Description
AM27C512-200DI Memory IC UVPROM, 64KX8, 200ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

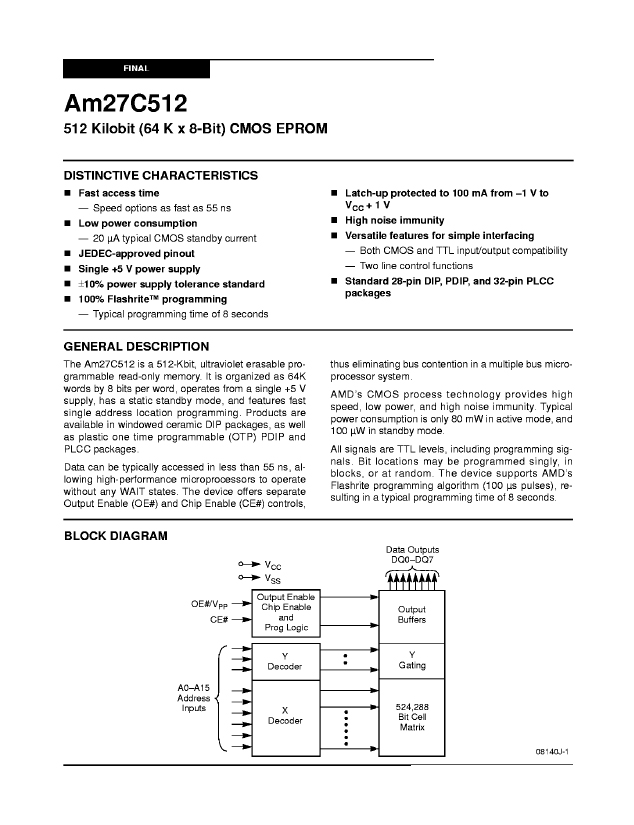

| GENERAL DESCRIPTION The Am27C512 is a 512-Kbit, ultraviolet erasable programmable read-only memory. It is organized as 64K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages. DISTINCTIVE CHARACTERISTICS Fast access time — Speed options as fast as 55 ns Low power consumption — 20 µA typical CMOS standby current JEDEC-approved pinout Single +5 V power supply ±10 power supply tolerance standard 100 Flashrite™ programming — Typical programming time of 8 seconds Latch-up protected to 100 mA from –1 V to VCC+ 1 V High noise immunity Versatile features for simple interfacing — Both CMOS and TTL input/output compatibility — Two line control functions Standard 28-pin DIP, PDIP, and 32-pin PLCC packages |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- AM27C512-200DI |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | WINDOWED, CERAMIC, DIP-28 |
| Pin Count | 28 |
| Access Time-Max | 200 ns |
| I/O Type | COMMON |
| Length | 37.1475 mm |
| Memory Density | 524288 bit |
| Memory IC Type | UVPROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 65536 words |
| Number of Words Code | 64000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 64KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | WDIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE, WINDOW |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.588 mm |
| Standby Current-Max | 0.0001 A |
| Supply Current-Max | 0.025 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |

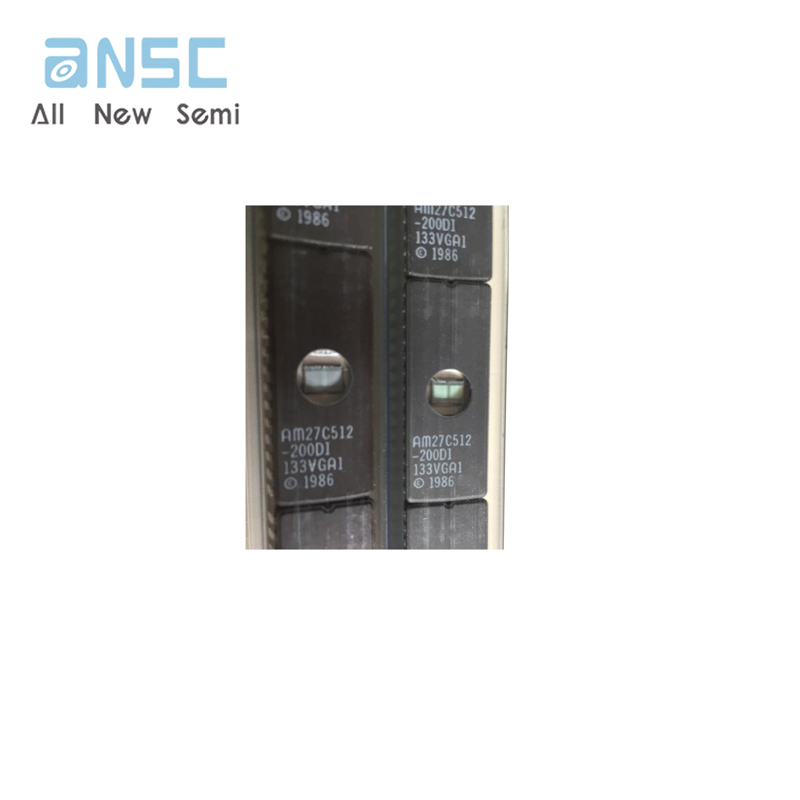

Product Photos

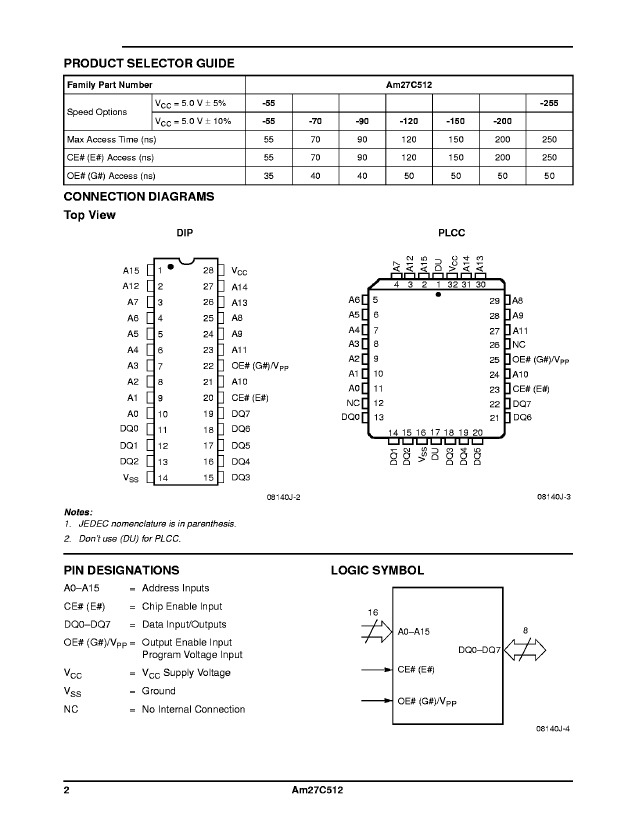

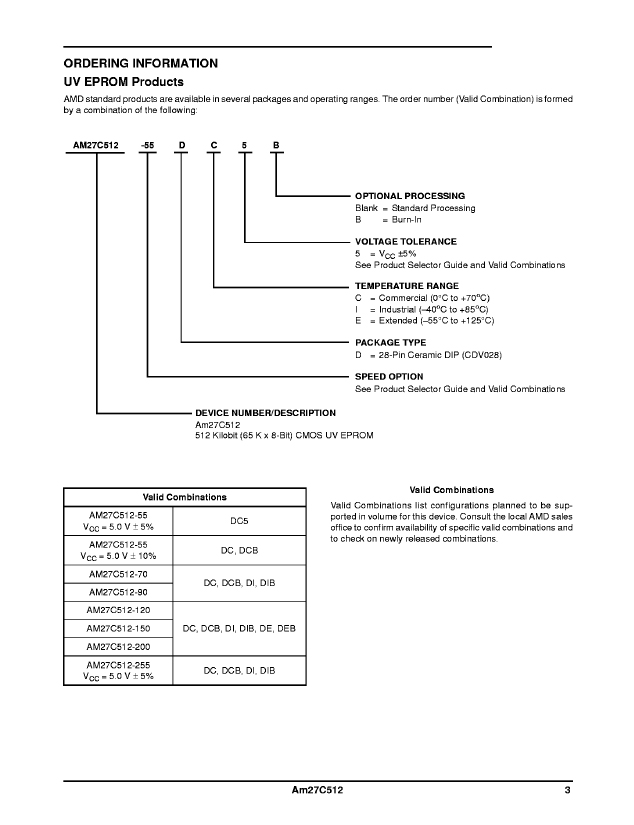

Product datasheet
For more information, please download
