Hot sale Original EP4CE55F23C7N Field Programmable Gate Array 3491 CLBs 472.5MHz 55856-Cell PBGA484 PITCH LEAD FREE FBGA-484

Manufacturer Product Number
EP4CE55F23C7N
Description

Original EP4CE55F23C7N Field Programmable Gate Array 3491 CLBs 472.5MHz 55856-Cell PBGA484 PITCH LEAD FREE FBGA-484

Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
new Cyclone® IV FPGA device family extends the Cyclone FPGA series leadership in providing the market’s lowest-cost, lowest-power FPGAs, now with a transceiver variant. Cyclone IV devices are targeted to high-volume, cost-sensitive applications, enabling system designers to meet increasing bandwidth requirements while lowering costs.


Features
The Cyclone IV device family offers the following features:
■ Low-cost, low-power FPGA fabric:
■ 6K to 150K logic elements
■ Up to 6.3 Mb of embedded memory
■ Up to 360 18 × 18 multipliers for DSP processing intensive applications
■ Protocol bridging applications for under 1.5 W total power
■ Cyclone IV GX devices offer up to eight high-speed transceivers that provide:
■ Data rates up to 3.125 Gbps
■ 8B/10B encoder/decoder
■ 8-bit or 10-bit physical media attachment (PMA) to physical coding sublayer (PCS) interface
■ Byte serializer/deserializer (SERDES)
■ Word aligner
■ Rate matching FIFO
■ TX bit slipper for Common Public Radio Interface (CPRI)
■ Electrical idle
■ Dynamic channel reconfiguration allowing you to change data rates andprotocols on-the-fly
■ Static equalization and pre-emphasis for superior signal integrity
■ 150 mW per channel power consumption
■ Flexible clocking structure to support multiple protocols in a single transceiver block
■ Cyclone IV GX devices offer dedicated hard IP for PCI Express (PIPE) (PCIe) Gen 1:
■ ×1, ×2, and ×4 lane configurations
■ End-point and root-port configurations
■ Up to 256-byte payload
■ One virtual channel
■ 2 KB retry buffer
■ 4 KB receiver (Rx) buffer
■ Cyclone IV GX devices offer a wide range of protocol support:
■ PCIe (PIPE) Gen 1 ×1, ×2, and ×4 (2.5 Gbps)
■ Gigabit Ethernet (1.25 Gbps)
■ CPRI (up to 3.072 Gbps)
■ XAUI (3.125 Gbps)
■ Triple rate serial digital interface (SDI) (up to 2.97 Gbps)
■ Serial RapidIO (3.125 Gbps)
■ Basic mode (up to 3.125 Gbps)
■ V-by-One (up to 3.0 Gbps)
■ DisplayPort (2.7 Gbps)
■ Serial Advanced Technology Attachment (SATA) (up to 3.0 Gbps)
■ OBSAI (up to 3.072 Gbps)
■ Up to 532 user I/Os
■ LVDS interfaces up to 840 Mbps transmitter (Tx), 875 Mbps Rx
■ Support for DDR2 SDRAM interfaces up to 200 MHz
■ Support for QDRII SRAM and DDR SDRAM up to 167 MHz
■ Up to eight phase-locked loops (PLLs) per device
■ Offered in commercial and industrial temperature grades

Product Description

Type Description
ANSC PART# ANSC- EP4CE55F23C7N
Category Integrated Circuits (ICs)
Embedded
FPGAs (Field Programmable Gate Array)
Mfr Original
Series Cyclone® IV E
Packaging Tray
Part Status Active
DigiKey Programmable Not Verified
Number of LABs/CLBs 3491
Number of Logic Elements/Cells 55856
Total RAM Bits 2396160
Number of I/O 324
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Operating Temperature 0°C ~ 85°C (TJ)
Package / Case 484-BGA
Supplier Device Package 484-FBGA (23x23)
Base Product Number EP4CE55

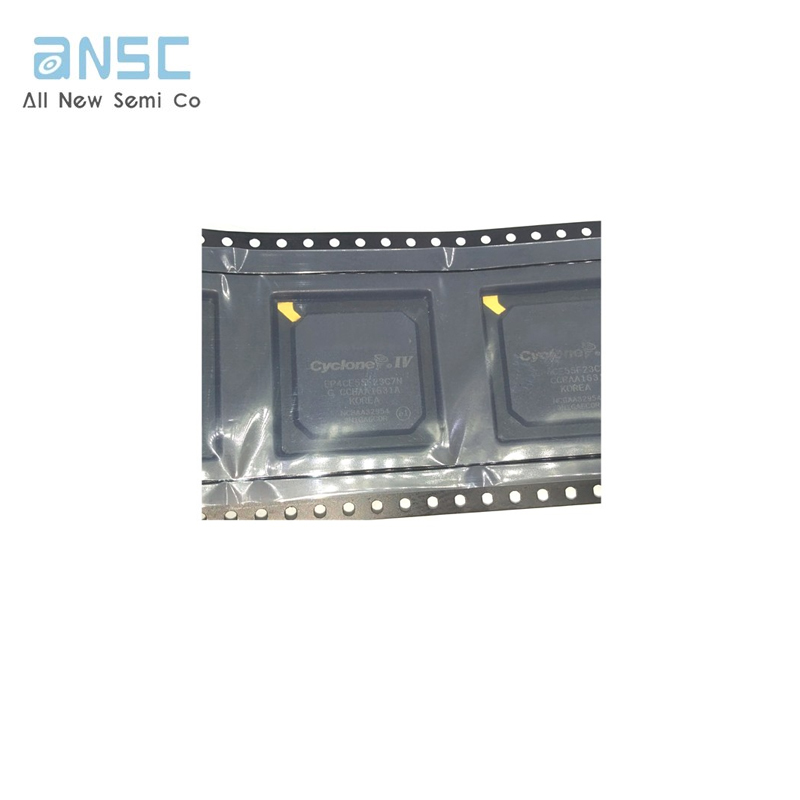

Actual image of the product

EP4CE55F23C7N

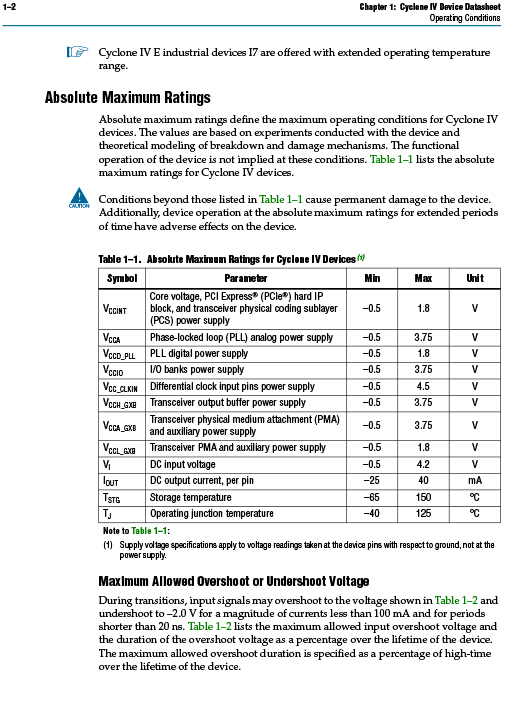

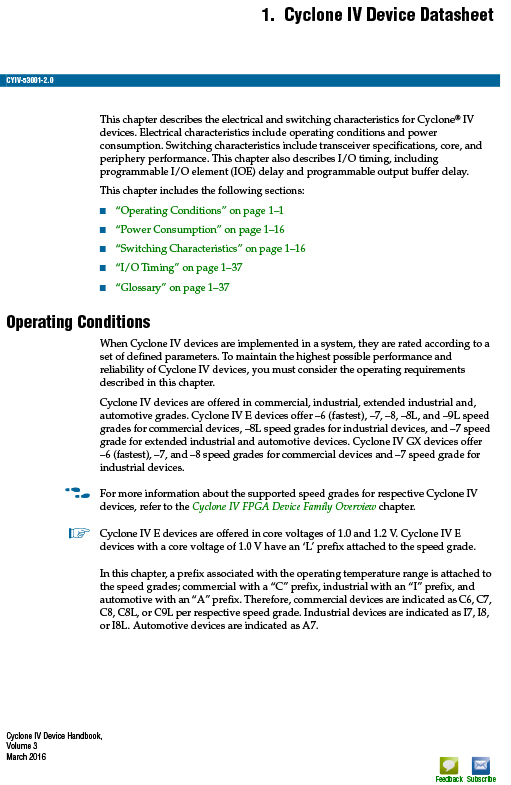

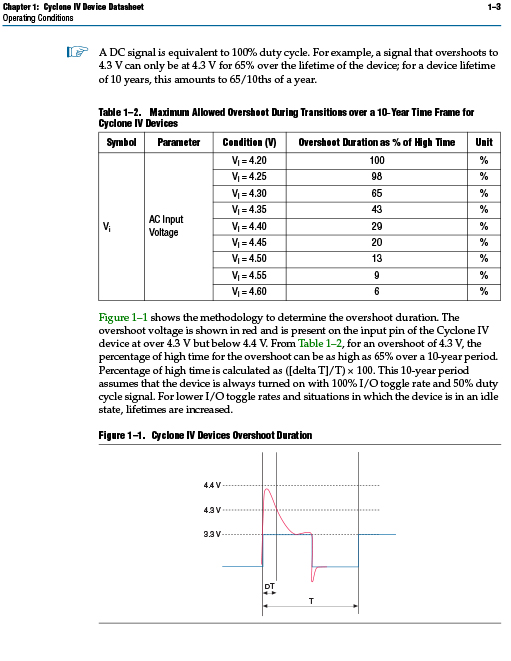

Product datasheet

For more information, please download
