Hot sale original LT1964IS5-5 Power Circuits Fixed Negative LDO Regulator, 5V, 0.49V Dropout, PDSO5
Manufacturer Product Number
LT1964IS5-5
Description
LT1964IS5-5 Power Circuits Fixed Negative LDO Regulator, 5V, 0.49V Dropout, PDSO5
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The LT®1964 is a micropower low noise, low dropout negative regulator. The device is capable of supplying 200mA of output current with a dropout voltage of 340mV. Low quiescent current (30µA operating and 3µA shut down) makes the LT1964 an excellent choice for battery powered applications. Quiescent current is well controlled in dropout. FEATURES ■ Low Profile (1mm) ThinSOTTM Package ■ Low Noise: 30µVRMS (10Hz to 100kHz) ■ Low Quiescent Current: 30µA ■ Low Dropout Voltage: 340mV ■ Output Current: 200mA ■ Fixed Output Voltage: –5V ■ Adjustable Output from –1.22V to –20V ■ Positive or Negative Shutdown Logic ■ 3µA Quiescent Current in Shutdown ■ Stable with 1µF Output Capacitor ■ Stable with Aluminum, Tantalum, or Ceramic Capacitors ■ Thermal Limiting APPLICATIONS ■ Battery-Powered Instruments ■ Low Noise Regulator for Noise-Sensitive Instrumentation ■ Negative Complement to LT1761 Family of Positive LDOs |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LT1964IS5-5 |
| Ihs Manufacturer | Original |
| Package Description | PLASTIC, MO-193, TSOT-23, 5 PIN |
| Dropout Voltage1-Max | 0.49 V |
| Dropout Voltage1-Nom | 0.34 V |
| Input Voltage-Max | 20 V |
| Input Voltage-Min | 5.5 V |
| Length | 2.9 mm |
| Load Regulation-Max | 0.05% |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | -40 °C |
| Output Current1-Max | 0.2 A |
| Output Voltage1-Max | 5.15 V |
| Output Voltage1-Min | 4.85 V |
| Output Voltage1-Nom | 5 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | VSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 235 |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR |
| Seated Height-Max | 1 mm |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Voltage Tolerance-Max | 3% |
| Width | 1.625 mm |

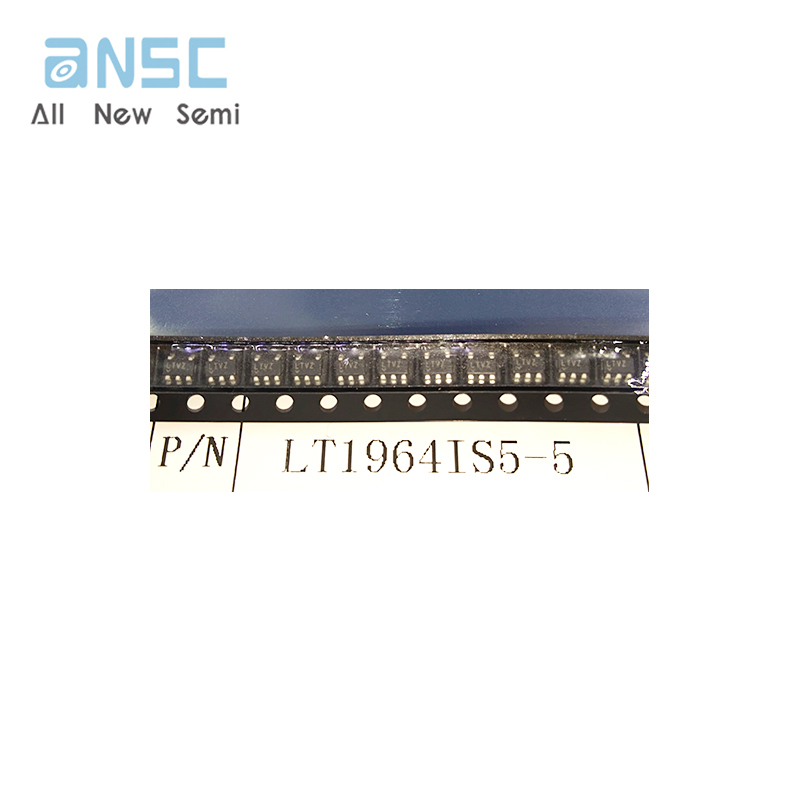

Product Photos

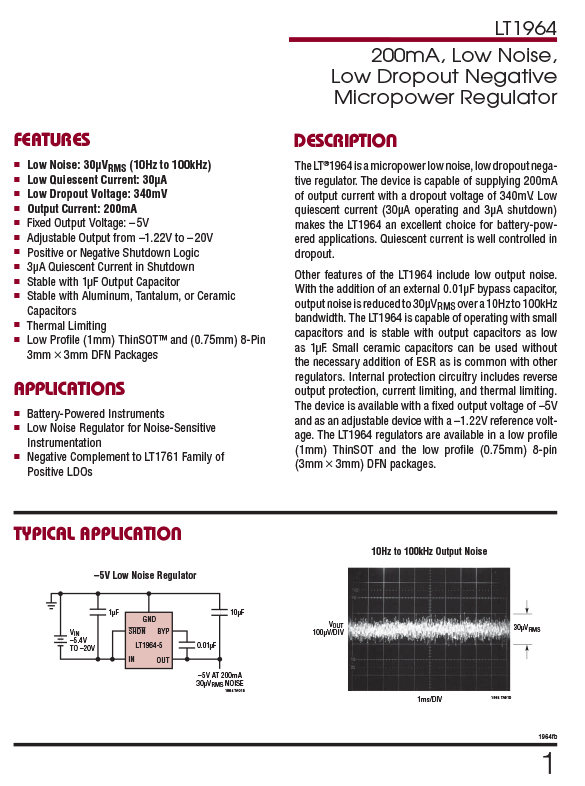

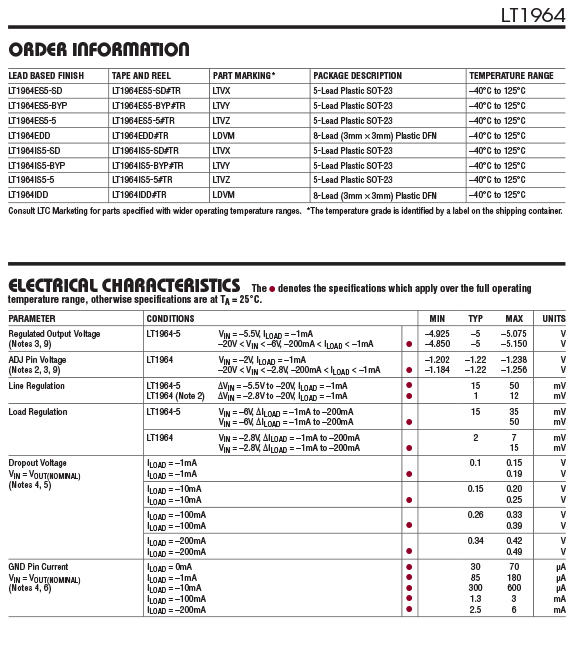

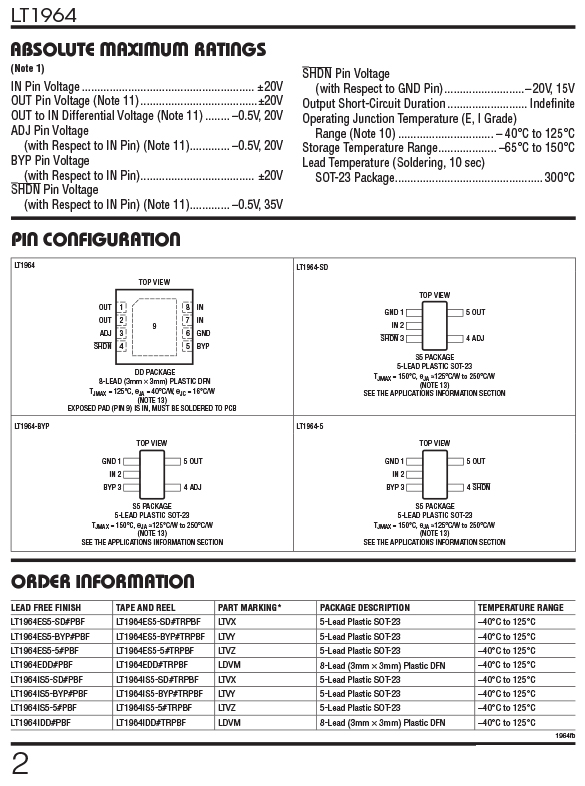

Product datasheet
For more information, please download
