You can contact me for the best price Original MAX489EESD Interface IC TRANSCEIVER FULL 14-SOIC Surface Mount Hot sale Original
Manufacturer Product Number
MAX489EESD
Description
Original MAX489EESD Interface IC TRANSCEIVER FULL 14-SOIC Surface Mount Hot sale Original
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

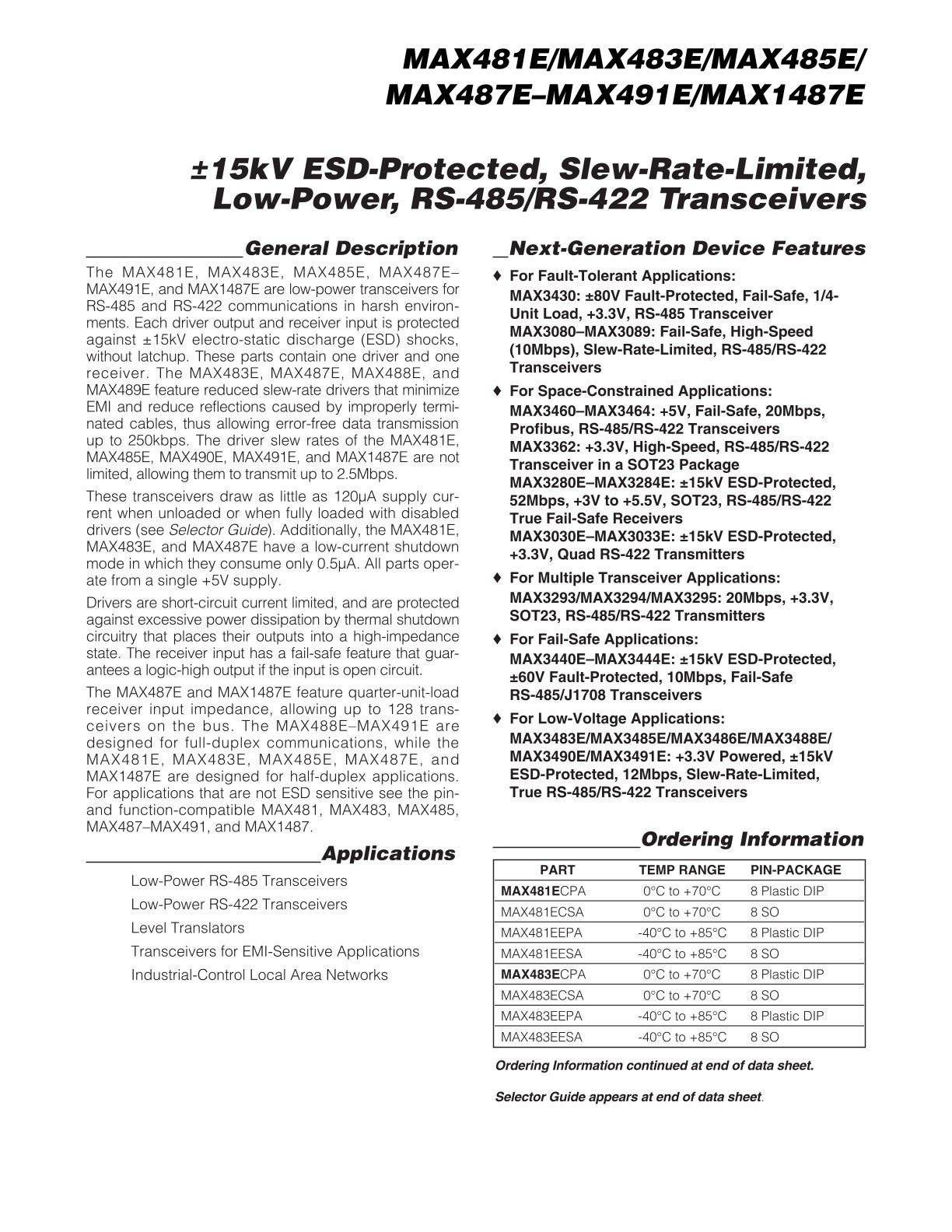

| General Description The MAX481E, MAX483E, MAX485E, MAX487E–MAX491E, and MAX1487E are low-power transceivers for RS-485 and RS-422 communications in harsh environments. Each driver output and receiver input is protected against ±15kV electro static discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX483E, MAX487E, MAX488E, and MAX489E feature reduced slew rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481E, MAX485E, MAX490E, MAX491E, and MAX1487E are not limited, allowing them to transmit up to 2.5Mbps. Features ♦ ESD Protection: ±15kV—Human Body Model ♦ Slew-Rate Limited for Error-Free Data Transmission (MAX483E/487E/488E/489E) ♦ Low Quiescent Current: 120µA (MAX483E/487E/488E/489E) 230µA (MAX1487E) 300µA (MAX481E/485E/490E/491E) ♦ -7V to +12V Common-Mode Input Voltage Range ♦ Three-State Outputs ♦ 30ns Propagation Delays, 5ns Skew (MAX481E/485E/490E/491E/1487E) ♦ Full-Duplex and Half-Duplex Versions Available ♦ Allows up to 128 Transceivers on the Bus (MAX487E/MAX1487E) ♦ Current Limiting and Thermal Shutdown for Driver Overload Protection Applications Low-Power RS-485 Transceivers Low-Power RS-422 Transceivers Level Translators Transceivers for EMI-Sensitive Applications Industrial-Control Local Area Networks |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MAX489EESD |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 70 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | MAX489 |

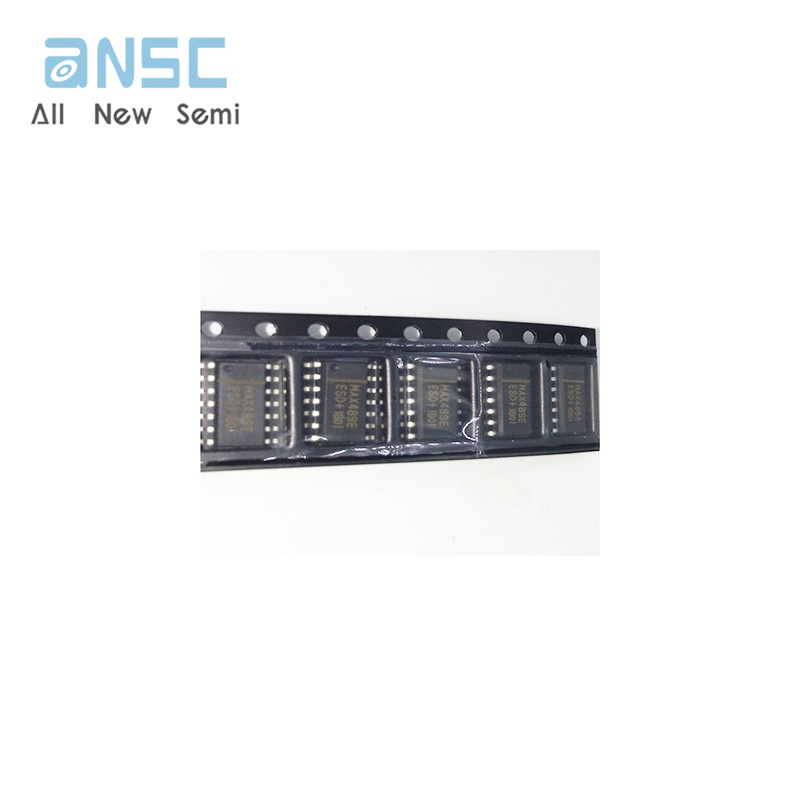

Actual image of the product

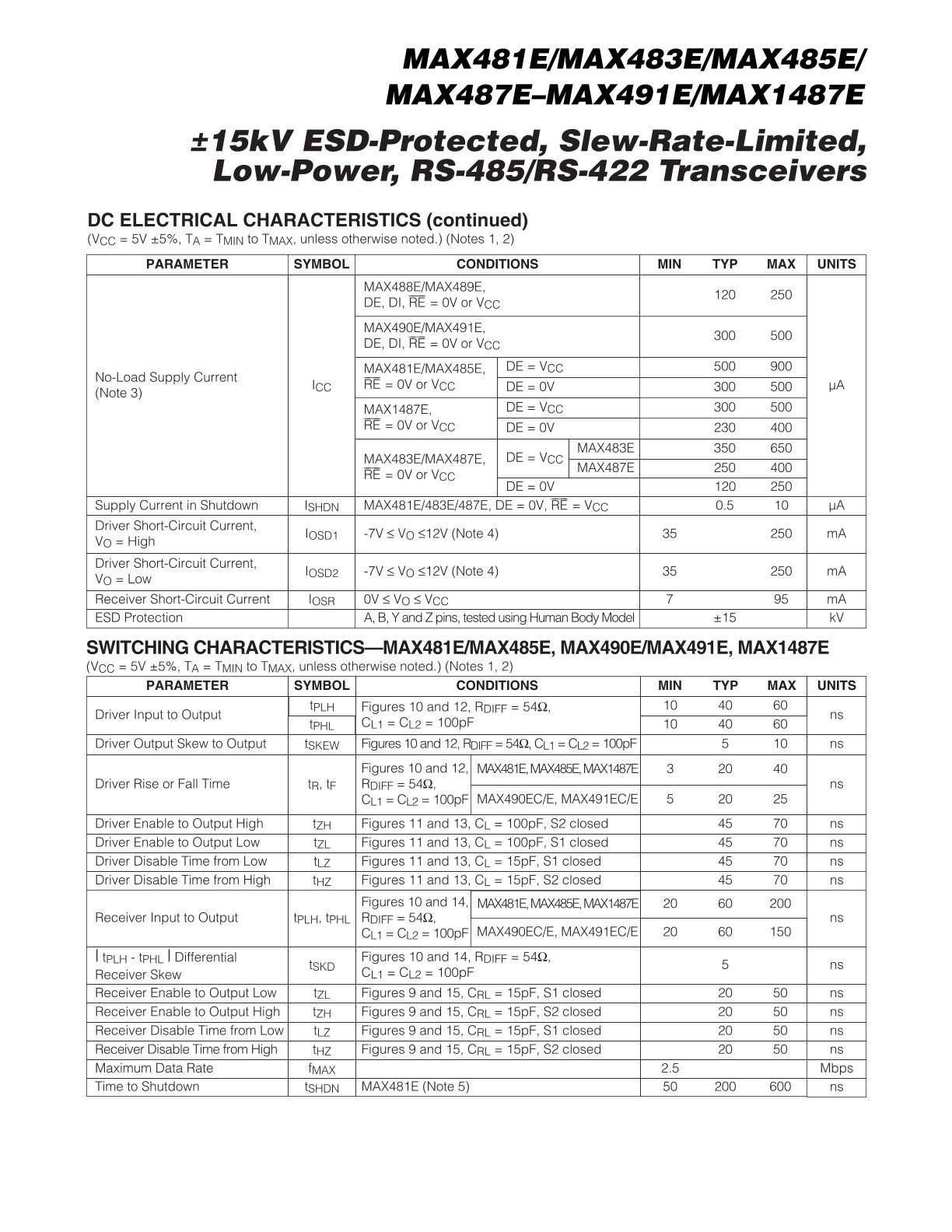

Product datasheet
For more information, please download
