Hot sale Original LP2988AIM-3.0 IC Fixed Positive LDO Regulator, 3V, 0.35V Dropout, BIPolar, PDSO8

Manufacturer
Original
Manufacturer Product Number
LP2988AIM-3.0
Description

LP2988AIM-3.0 IC Fixed Positive LDO Regulator, 3V, 0.35V Dropout, BIPolar, PDSO8

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General Description
The LP2950 and LP2951 are micropower voltage regulators with very low dropout voltage (typically 40mV at light loads and 380mV at 100mA), and very low quiescent current (75A typical). The quiescent current of the LP2950 /LP2951 increases only slightly in dropout, thus prolonging battery life. This feature, among others, makes the LP2950 and LP2951 ideally suited for use in battery-powered systems.
Available in a 3-pin TO-92 package, the LP2950 is pin compatible with the older 5V regulators. Additional system functions, such as programmable output voltage and logic controlled shutdown, are available in the 8-pin DIP and 8-pin SOIC versions of the LP2951.
Features
• High accuracy 5V, guaranteed 100mA output
• Extremely low quiescent current
• Low-dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Use as regulator or reference
• Needs only 1µF for stability
LP2951 Versions Only
• Current and thermal limiting
• Error flag warns of output dropout
• Logic-controlled electronic shutdown
• Output programmable from 1.24 to 29V
Applications
• Automotive electronics
• Voltage reference
• Avionics


Product Description

Type# Description
ANSC PART# ANSC- LP2988AIM-3.0
Package Description So-8
Adjustability Fixed
Dropout Voltage1-Max 0.35 V
Dropout Voltage1-Nom 0.18 V
Input Voltage Absolute-Max 16 V
Input Voltage-Max 16 V
Input Voltage-Min 4 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.9 Mm
Line Regulation-Max 0.01%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.2 A
Output Voltage1-Max 3.054 V
Output Voltage1-Min 2.946 V
Output Voltage1-Nom 3 V
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Packing Method Rail
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Ldo Regulator
Seated Height-Max 1.75 Mm
Surface Mount Yes
Technology Bipolar
Terminal Finish Tin/Lead (Sn85pb15)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 1.80%
Width 3.9 Mm

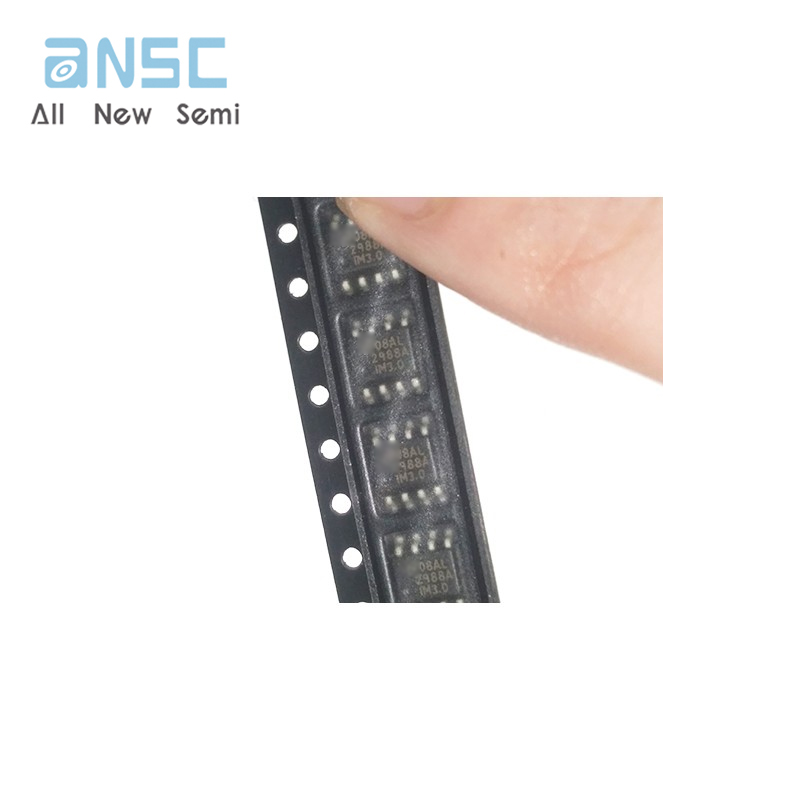

Actual image of the product

LP2988AIM-3.0

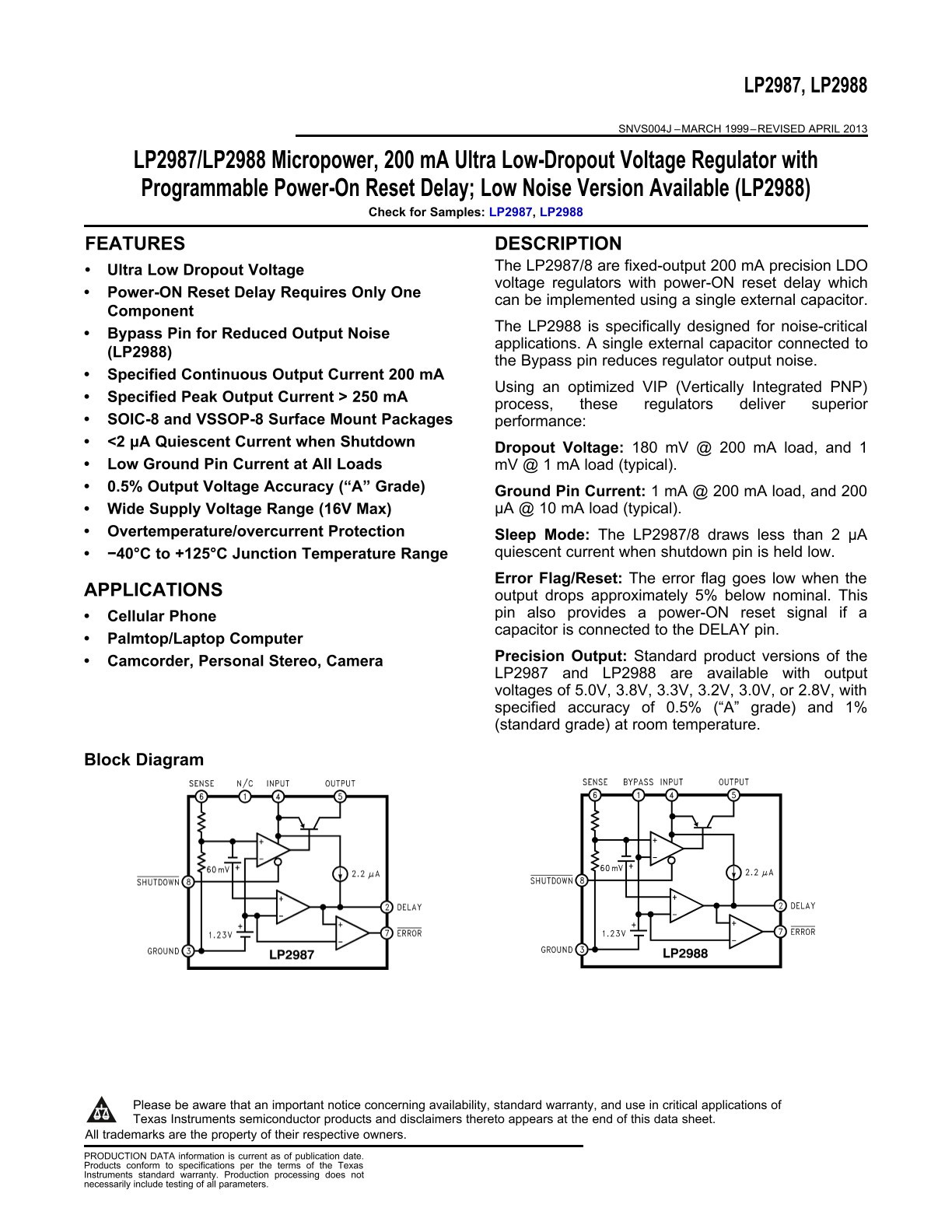

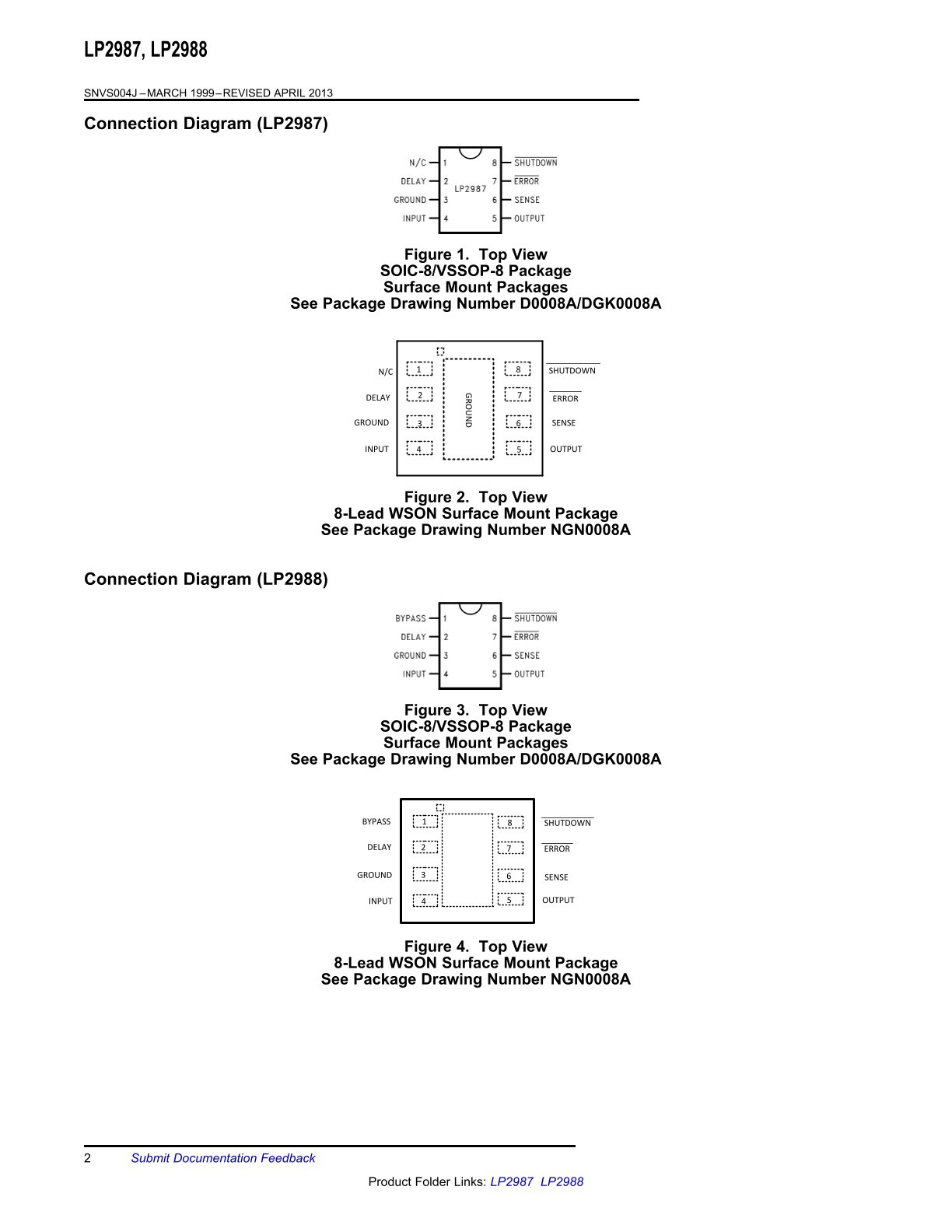

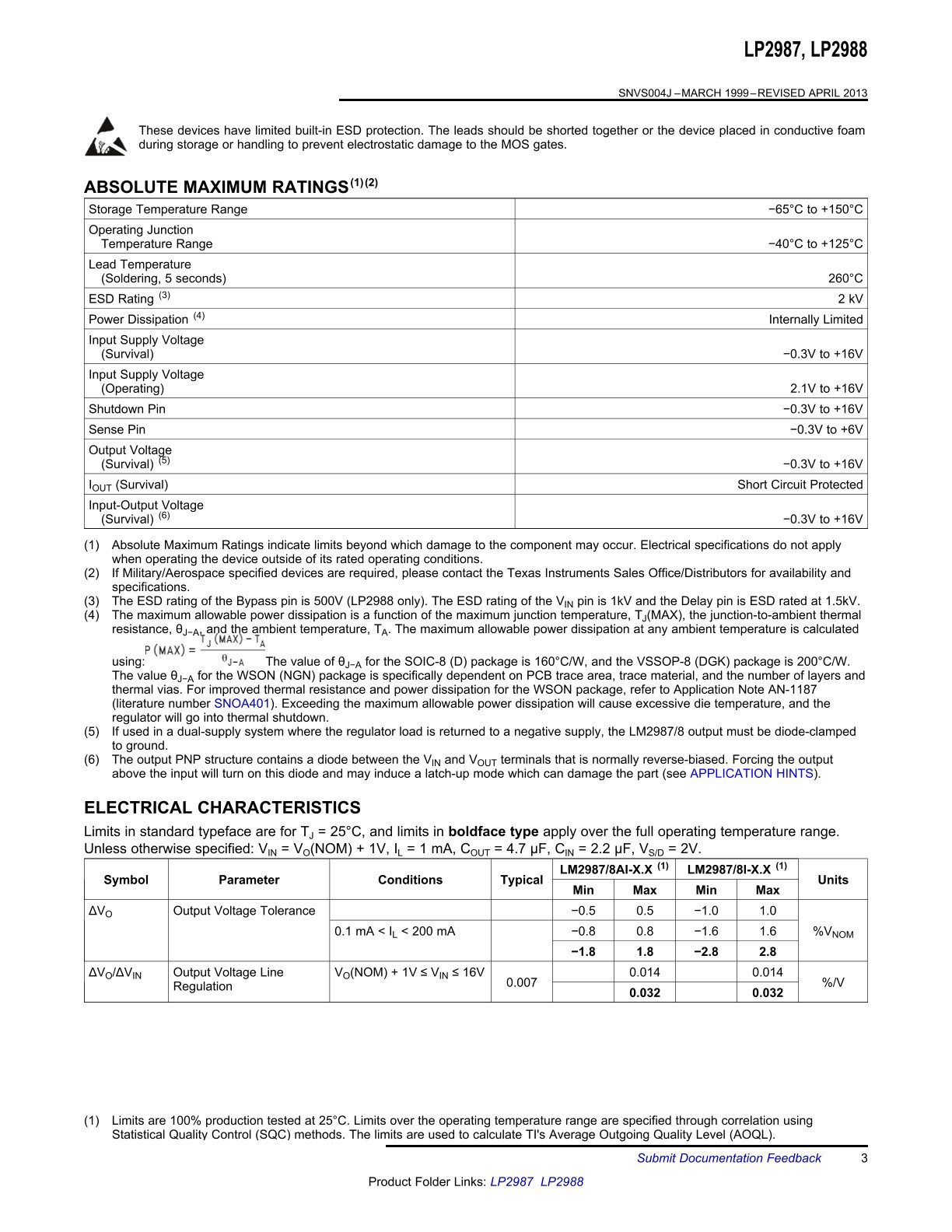

Product datasheet

For more information, please download
