Product Details

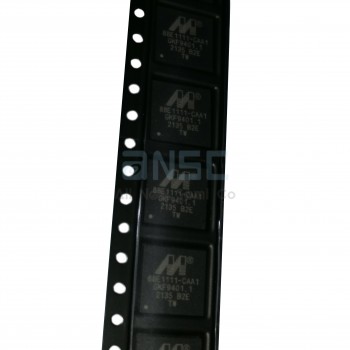

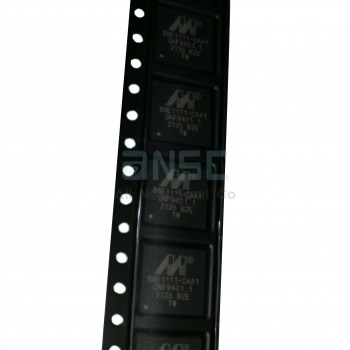

The Alaska® Ultra 88E1111 Gigabit Ethernet Transceiver is a physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications. It is manufactured using standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on standard CAT 5 unshielded twisted pair.

The 88E1111 device incorporates the Marvell Virtual Cable Tester® (VCT™) feature, which uses Time Domain Reflectometry (TDR) technology for the remote identification of potential cable malfunctions, thus reducing equipment returns and service calls. Using VCT, the Alaska 88E1111 device detects and reports potential cabling issues such as pair swaps, pair polarity and excessive pair skew. The device will also detect cable opens, shorts or any impedance mismatch in the cable and report accurately within one meter the distance to the fault.

The 88E1111 device supports the Gigabit Media Independent Interface (GMII), Reduced GMII (RGMII), Serial Gigabit Media Independent Interface (SGMII), the Ten-Bit Interface (TBI), and Reduced TBI (RTBI) for direct connection to a MAC/Switch port.

The 88E1111 device incorporates an optional 1.25 GHz SERDES (Serializer/Deserializer). The serial interface may be connected directly to a fiber-optic transceiver for 1000BASE-T/1000BASE-X media conversion applications. Additionally, the 88E1111 device may be used to implement 1000BASE-T Gigabit Interface Converter (GBIC) or Small Form Factor Pluggable (SFP) modules.

The 88E1111 device uses advanced mixed-signal processing to perform equalization, echo and crosstalk cancellation, data recovery, and error correction at a gigabit per second data rate. The device achieves robust performance in noisy environments with very low power dissipation.

The 88E1111 device is offered in three different package options including a 117-Pin TFBGA, a 96-pin aQFN featuring a body size of only 9 x 9 mm, and a 128 PQFP package.

Products Features

• 10/100/1000BASE-T IEEE 802.3 compliant

• Supports GMII, TBI, reduced pin count GMII (RGMII), reduced pin count TBI (RTBI), and serial GMII (SGMII) interfaces

• Integrated 1.25 GHz SERDES for 1000BASE-X fiber applications

• Four RGMII timing modes

• Energy Detect and Energy Detect+ low power modes

• Three loopback modes for diagnostics

• "Downshift" mode for two-pair cable installations

• Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers

• Advanced digital baseline wander correction

• Automatic MDI/MDIX crossover at all speeds of operation

• Automatic polarity correction

• IEEE 802.3u compliant Auto-Negotiation

• Software programmable LED modes including LED testing

• Automatic detection of fiber or copper operation

• Supports IEEE 1149.1 JTAG

• Two-Wire Serial Interface (TWSI) and MDC/MDIO

• CRC checker, packet counter

• Packet generation

• Virtual Cable Tester (VCT)
