Hot sale Original PCA8565TS IC 1 TIMER(S) REAL TIME CLOCK PDSO8 3 MM PLASTIC SOT-505-1 TSSOP-8 Timer or RTC
Manufacturer Product Number
PCA8565TS
Description
PCA8565TS IC 1 TIMER(S) REAL TIME CLOCK PDSO8 3 MM PLASTIC SOT-505-1 TSSOP-8 Timer or RTC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General description The PCA8565 is a CMOS real time clock/calendar optimized for low power consumption. A programmable clock output, interrupt output and voltage-low detector are also provided. All address and data are transferred serially via a two-line bidirectional I2C-bus. Maximum bus speed is 400 kbit/s. The built-in word address register is incremented automatically after each written or read data byte. Features Provides year, month, day, weekday, hours, minutes and seconds based on 32.768 kHz quartz crystal Century flag Clock operating voltage: 1.8 to 5.5 V Extended operating temperature range:−40 to +125°C Low backup current; typical 0.5µA at VDD= 3.0 V and Tamb=25°C 400 kHz two-wire I2C-bus interface (at VDD= 1.8 to 5.5 V) Programmable clock output for peripheral devices (32.768 kHz, 1024 Hz, 32 Hz and 1 Hz) Alarm and timer functions Integrated oscillator capacitor Internal power-on reset I2C-bus slave address: read A3H and write A2H Open-drain interrupt pin. Applications Automotive Industrial Other applications that require a wide operating temperature range. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - PCA8565TS |
| Part Package Code | SOIC |
| Package Description | Tssop, Tssop8,.19 |
| Pin Count | 8 |
| Clock Frequency-Max | 0.032 Mhz |
| External Data Bus Width | / |
| Information Access Method | Serial(I2c) |
| Interrupt Capability | Y |
| JESD-30 Code | S-PDSO-G8 |
| Length | 3 Mm |
| Number of Terminals | 8 |
| Number of Timers | |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | Plastic/Epoxy |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP8,.19 |
| Package Shape | Square |
| Package Style | Small Outline, Thin Profile, Shrink Pitch |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Screening Level | Aec-Q100 |
| Seated Height-Max | 1.1 Mm |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 1.8 V |
| Supply Voltage-Nom | 2 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Automotive |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.65 Mm |
| Terminal Position | Dual |
| Time-Min | Seconds |
| Volatile | No |
| Width | 3 Mm |
| uPs/uCs/Peripheral ICs Type | Timer, Real Time Clock |

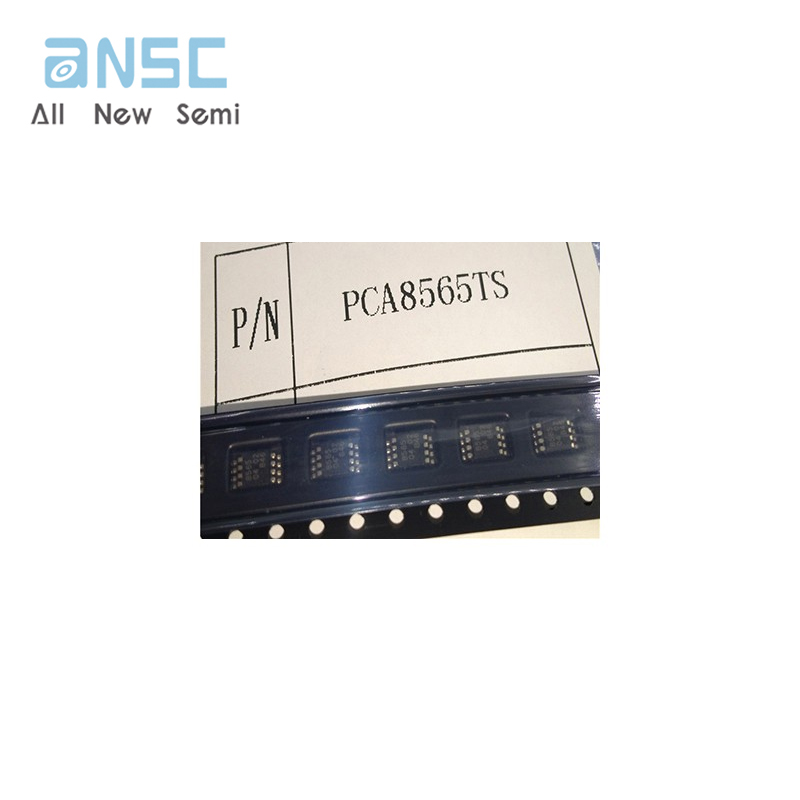

Actual image of the product

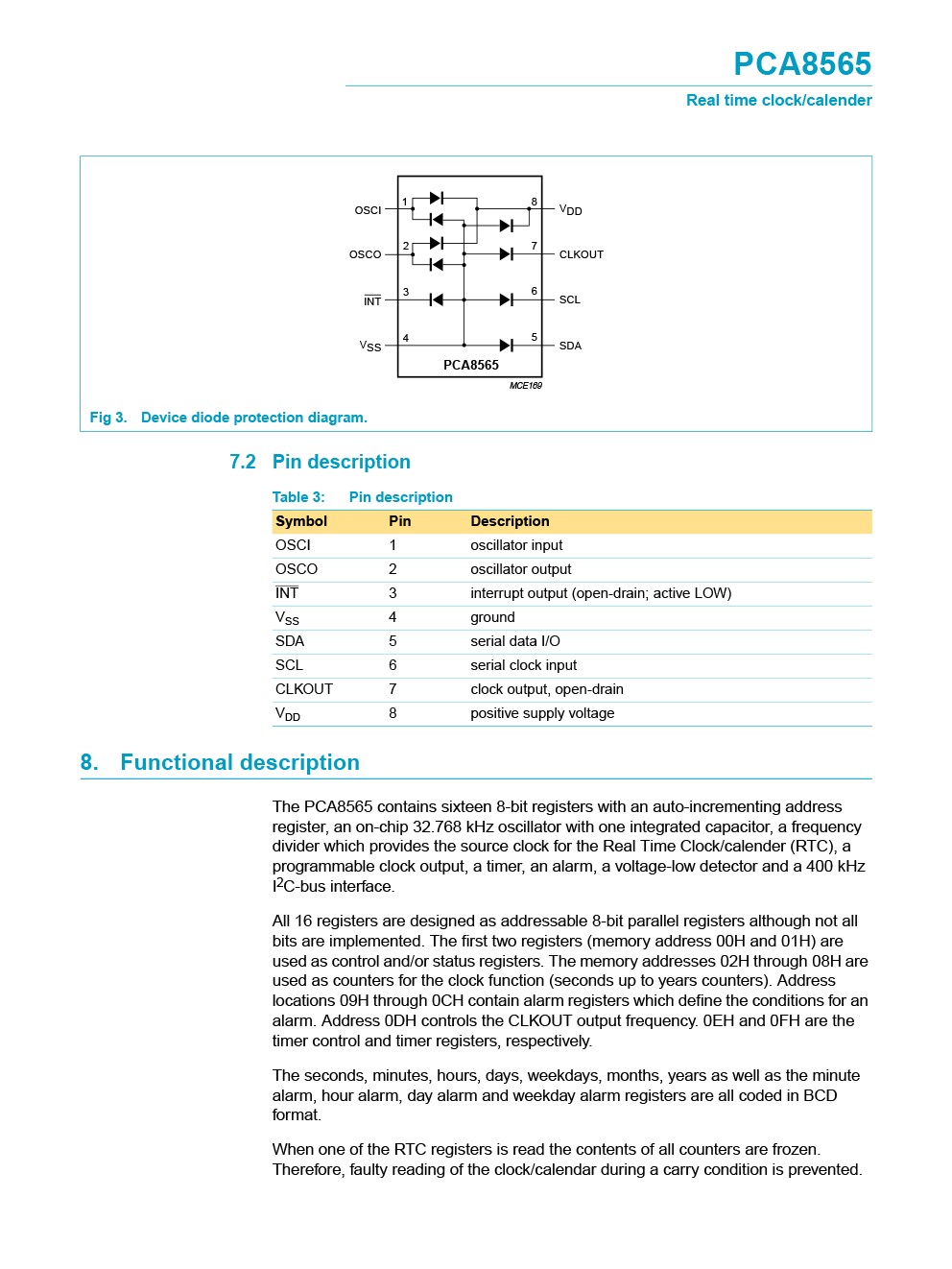

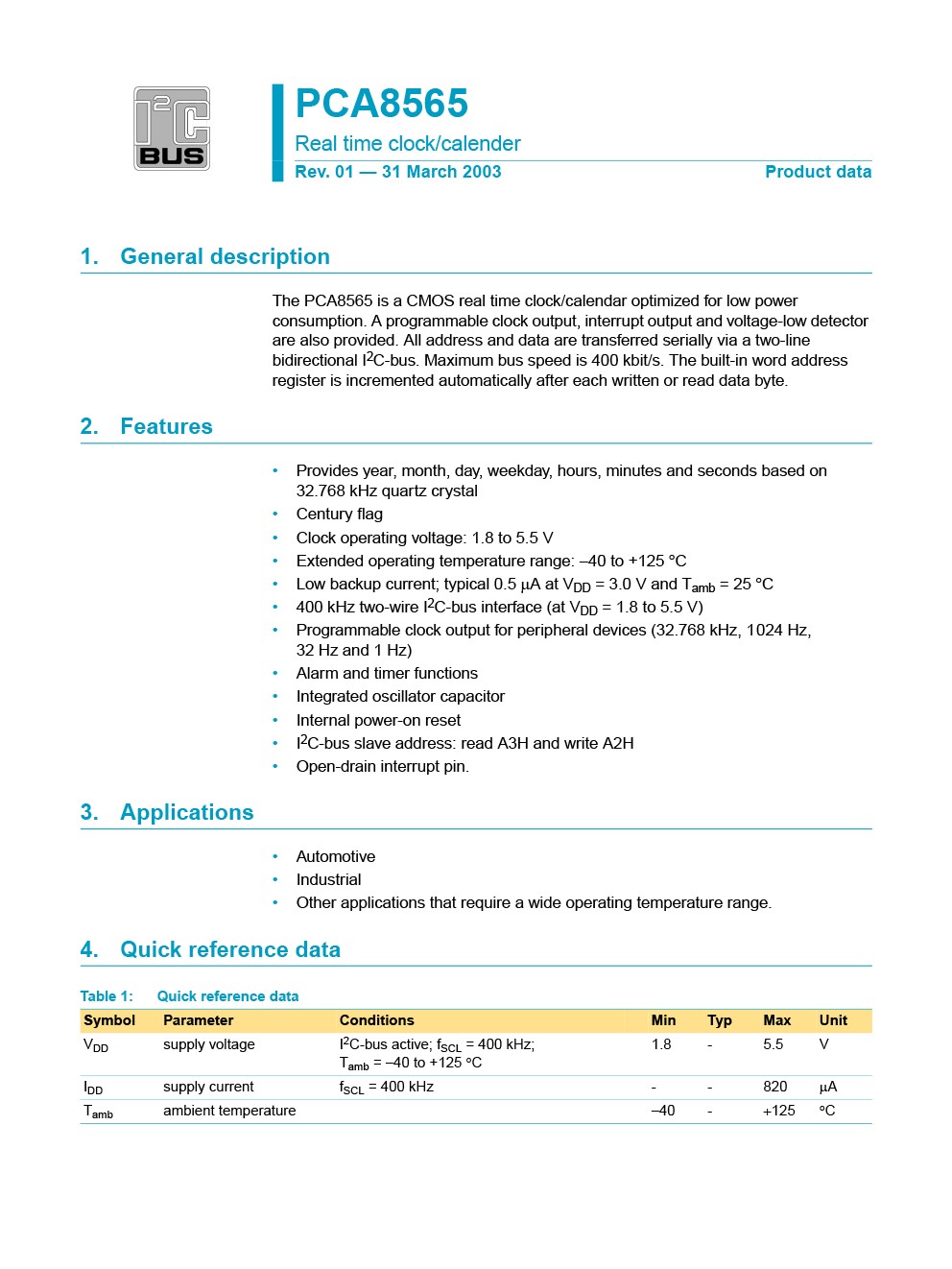

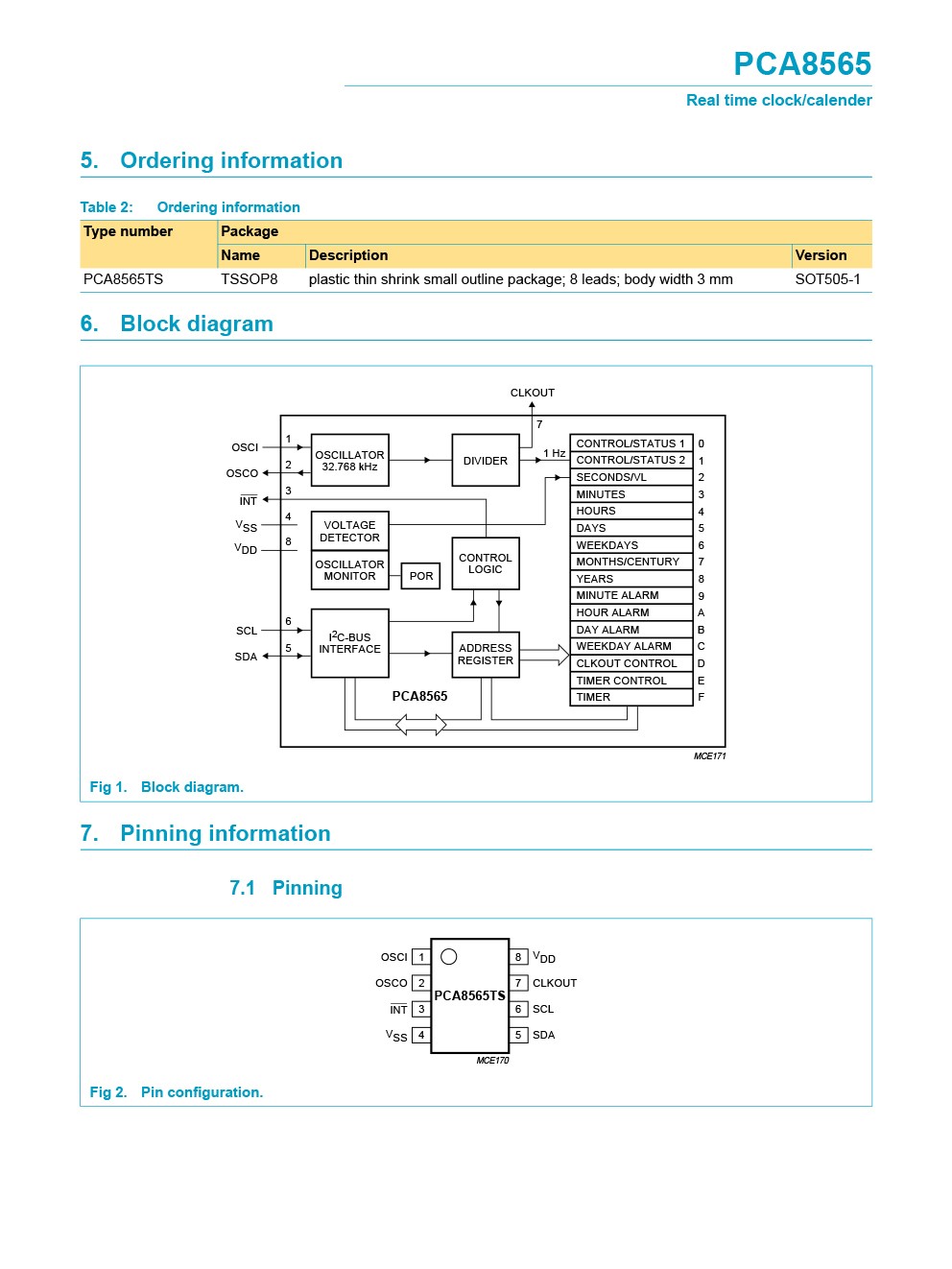

Product datasheet
For more information, please download
