You can contact me for the best price PDIUSBD12 USB interface device with parallel bus IC Hot sale Original
Manufacturer Product Number
PDIUSBD12
Description
PDIUSBD12 USB interface device with parallel bus IC Hot sale Original
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description The PDIUSBD12 is a cost and feature optimized USB device. It is normally used in microcontroller based systems and communicates with the system microcontroller over the high-speed general purpose parallel interface. It also supports local DMA transfer. Features ■ Complies with the Universal Serial Bus specification Rev. 2.0 (basic speed) ■ High performance USB interface device with integrated SIE, FIFO memory, transceiver and voltage regulator ■ Compliant with most Device Class specifications ■ High-speed (2 Mbytes/s) parallel interface to any external microcontroller or microprocessor ■ Fully autonomous DMA operation ■ Integrated 320 bytes of multi-configuration FIFO memory ■ Double buffering scheme for main endpoint increases throughput and eases real-time data transfer ■ Data transfer rates: 1 Mbytes/s achievable in Bulk mode, 1 Mbits/s achievable in Isochronous mode ■ Bus-powered capability with very good EMI performance ■ Controllable LazyClock output during suspend ■ Software controllable connection to the USB bus (SoftConnect™) ■ Good USB connection indicator that blinks with traffic (GoodLink™) ■ Programmable clock frequency output ■ Complies with the ACPI, OnNOW and USB power management requirements ■ Internal Power-on reset and low-voltage reset circuit ■ Available in SO28 and TSSOP28 pin packages ■ Full industrial grade operation from −40 to +85 °C ■ Higher than 8 kV in-circuit ESD protection lowers cost of extra components ■ Full-scan design with high fault coverage (>99%) ensures high quality ■ Operation with dual voltages: 3.3 ±0.3 V or extended 5 V supply range of 4.0 to 5.5 V ■ Multiple interrupt modes to facilitate both bulk and isochronous transfers. |

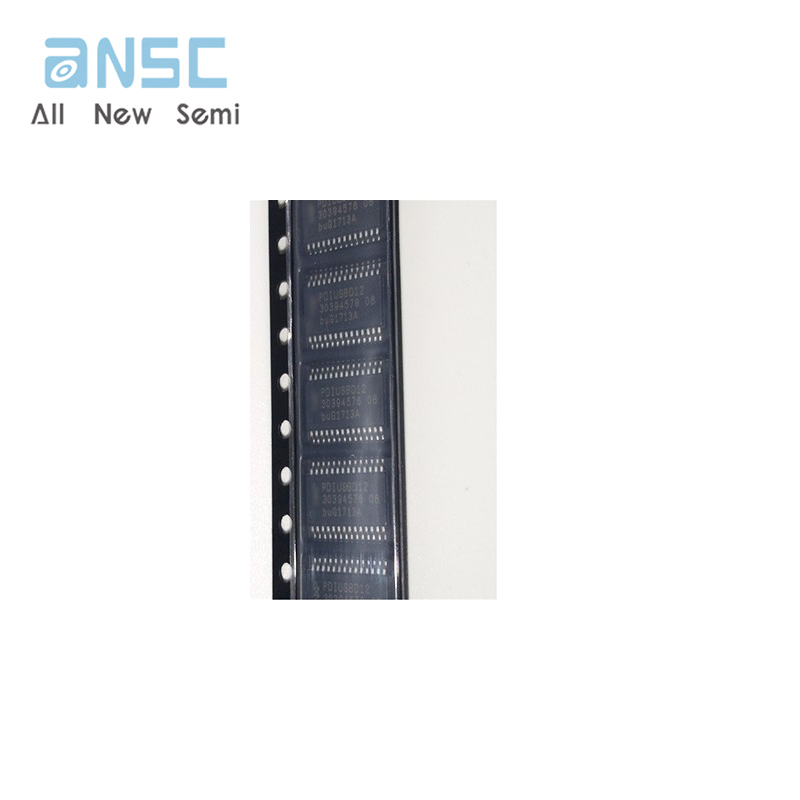

Actual image of the product

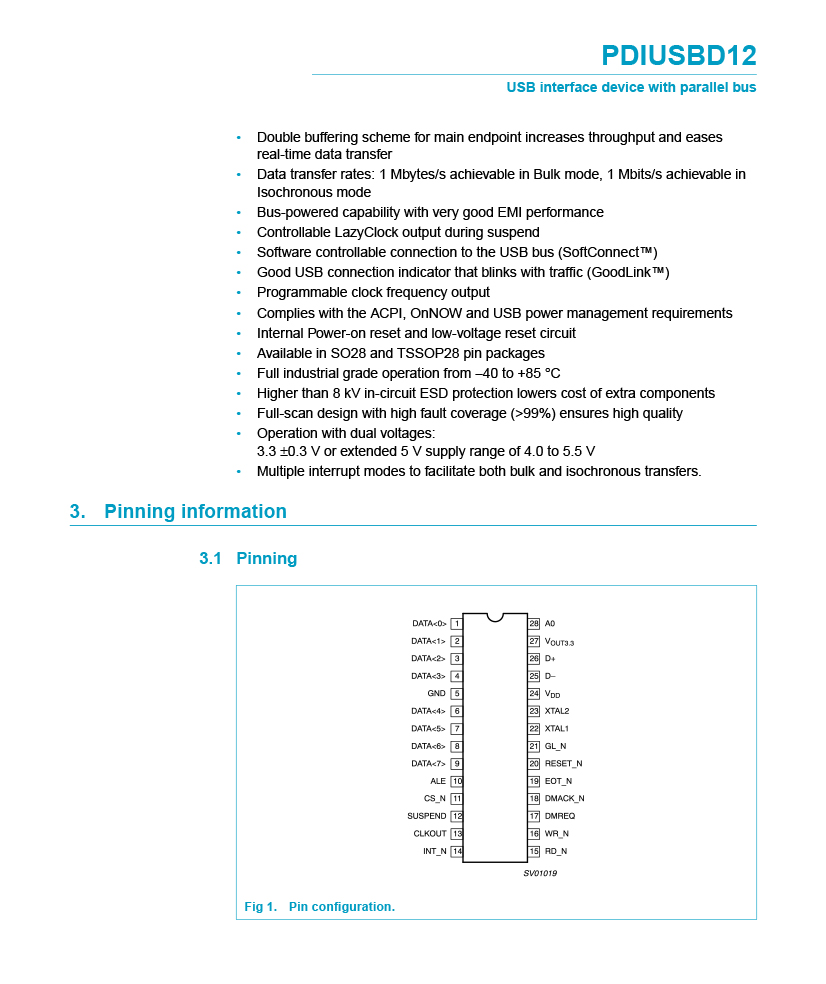

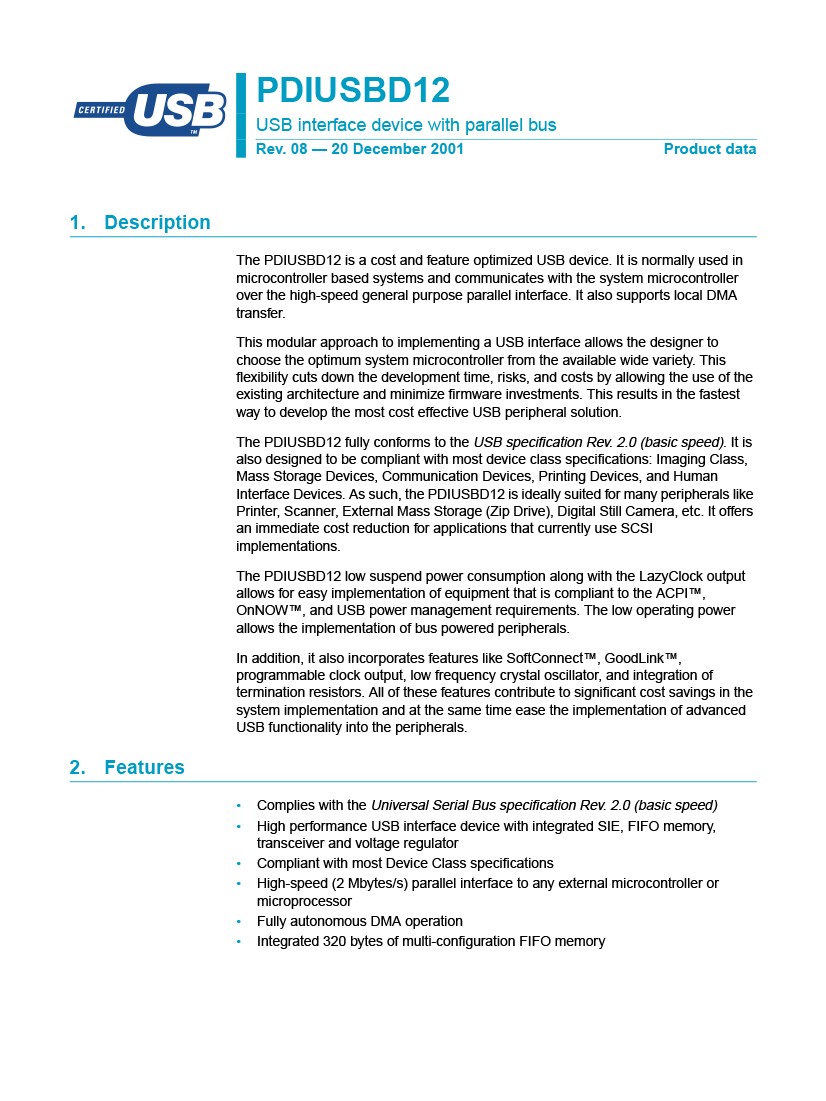

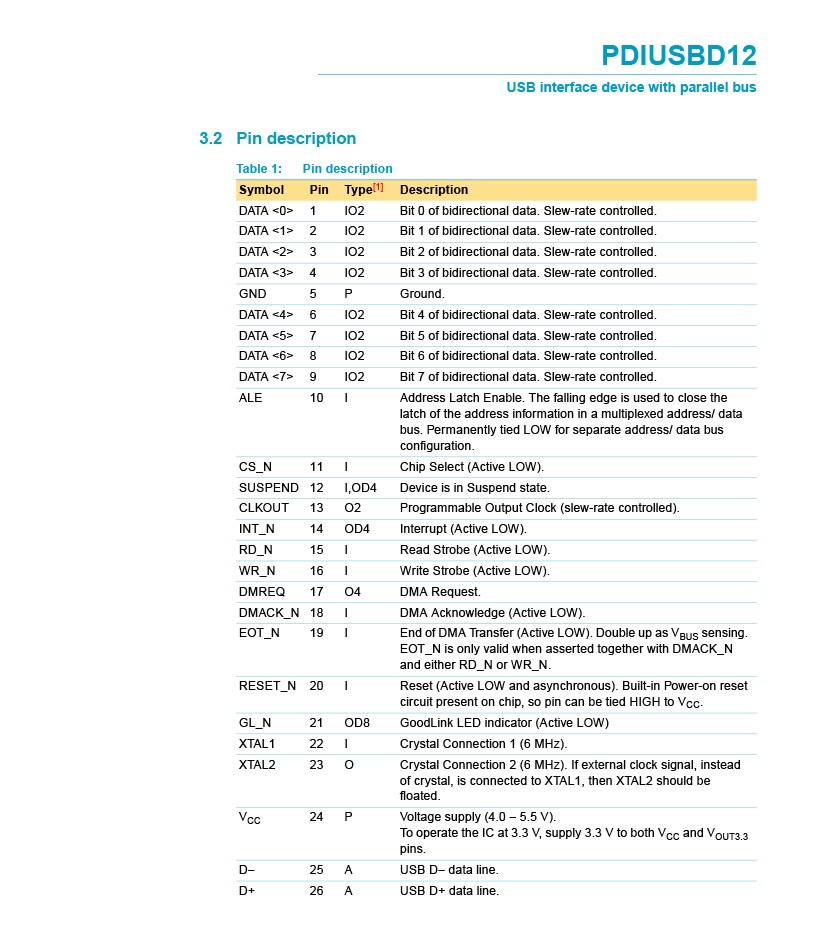

Product datasheet
For more information, please download



Payment&Transportation

Official Certificate&Certificate

Standard packaging

Multiple product supply

Welcome to visit our company

Warehouse Real Shot
