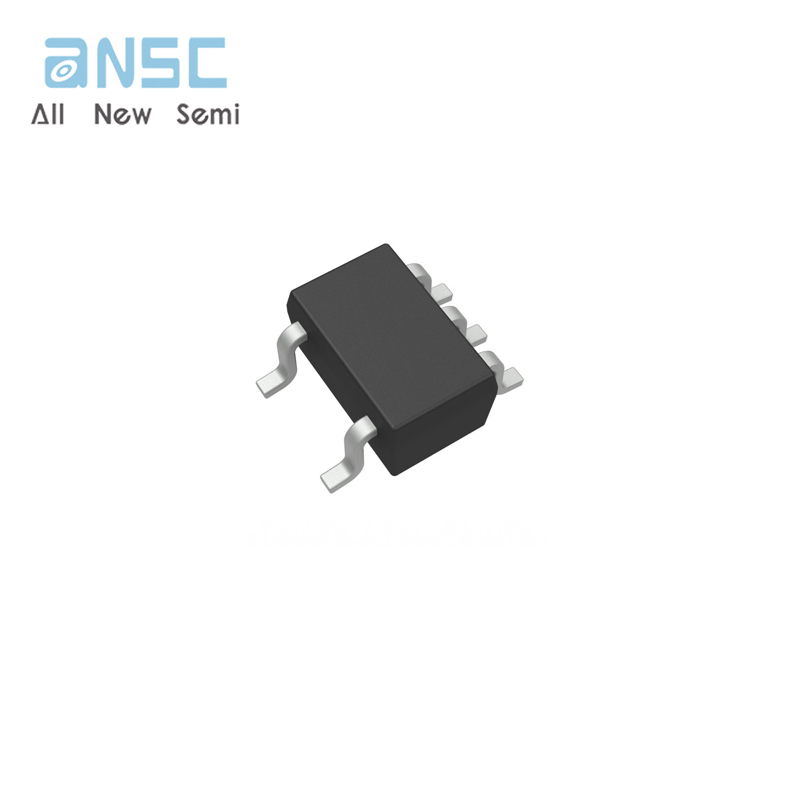

Hot sale Original TPS76301DBVT IC REG LIN POS ADJ 150MA SOT23-5 Linear Voltage Regulator IC Positive Adjustable 1 Output
Manufacturer Product Number
TPS76301DBVT
Description
Original TPS76301DBVT IC REG LIN POS ADJ 150MA SOT23-5 Linear Voltage Regulator IC Positive Adjustable 1 Output SOT-23-5
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A SC-74A, SOT-753 case is used for packaging. As you can see, the IC chip has 5 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. This chip has a total of 5 pins, which are arranged in a rectangular shape. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 180mV volts. 5 pins are on the chip. For your information, this regulator's basic part number is TPS76301. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 150mA. It operates in the 80μA Quiescent Current state.
Product Features
180mV dropout voltage
TR method of packing
Over Current, Over Temperature, Reverse Polarity Protection Features
Positive Output Configuration
Adjustable Output Type
Product Applications
TPS76301DBVT Linear Voltage Regulators applications.
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS76301DBVT |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 6.5V |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 140 µA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS76301 |
