Hot sale original electronics SA571DG IC COMPANDOR 16SOIC Audio Compandor 2 Channel 16-SOIC Tube Surface Mount
Manufacturer Product Number
SA571DG
Description
SA571DG IC COMPANDOR 16SOIC Audio Compandor 2 Channel 16-SOIC Tube Surface Mount
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
The SA571 is a versatile low cost dual gain control circuit in which either channel may be used as a dynamic range compressor or expandor. Each channel has a full−wave rectifier to detect the average value of the signal, a linerarized temperature−compensated variable gain cell, and an operational amplifier. The SA571 is well suited for use in cellular radio and radio communications systems, modems, telephone, and satellite broadcast/receive audio systems. Features • Complete Compressor and Expandor in one IChip • Temperature Compensated • Greater than 110 dB Dynamic Range • Operates Down to 6.0 VDC • System Levels Adjustable with External Components • Distortion may be Trimmed Out • Dynamic Noise Reduction Systems • Voltage Controlled Amplifier • Pb−Free Packages are Available* Applications • Cellular Radio • High Level Limiter • Low Level Expandor − Noise Gate • Dynamic Filters • CD Player |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SA571DG |
| Part Package Code | SO-16 WB |
| Package Description | Sop, Sop16,.4 |
| Pin Count | 16 |
| Manufacturer Package Code | 751G-03 |
| Factory Lead Time | 4 Weeks |
| Analog IC - Other Type | Compander |
| Bandwidth-Nom | 0.02 Mhz |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e3 |
| Length | 10.3 Mm |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | Plastic/Epoxy |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.4 |
| Package Shape | Rectangular |
| Package Style | Small Outline |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.65 Mm |
| Supply Current-Max (Isup) | 4.8 Ma |
| Supply Voltage-Max (Vsup) | 18 V |
| Supply Voltage-Min (Vsup) | 6 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | Yes |
| Technology | Bipolar |
| Temperature Grade | Industrial |
| Terminal Finish | Tin |
| Terminal Form | Gull Wing |
| Terminal Pitch | 1.27 Mm |
| Terminal Position | Dual |
| Width | 7.5 Mm |

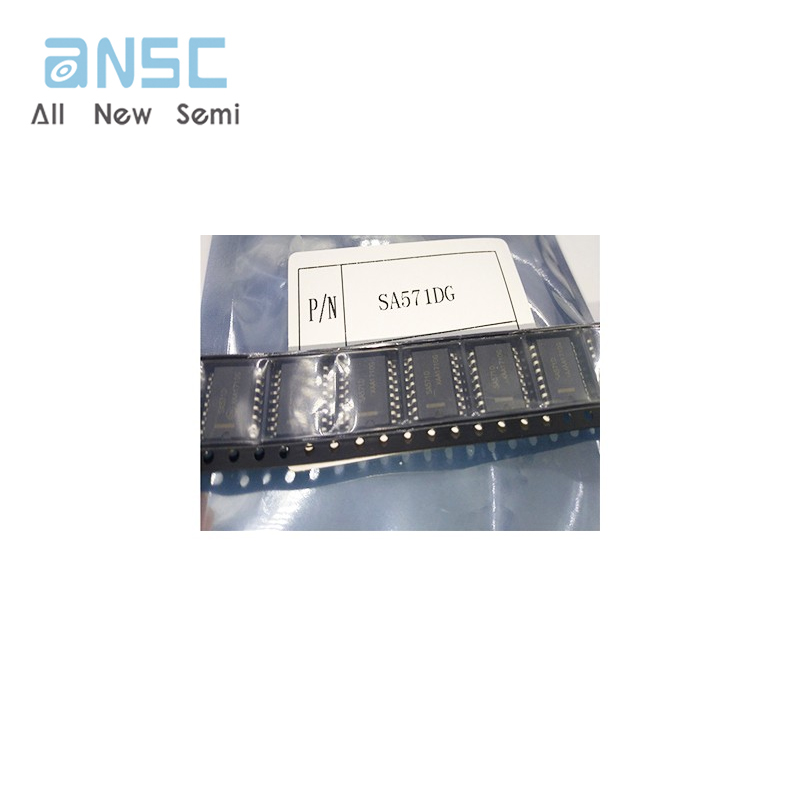

Actual image of the product

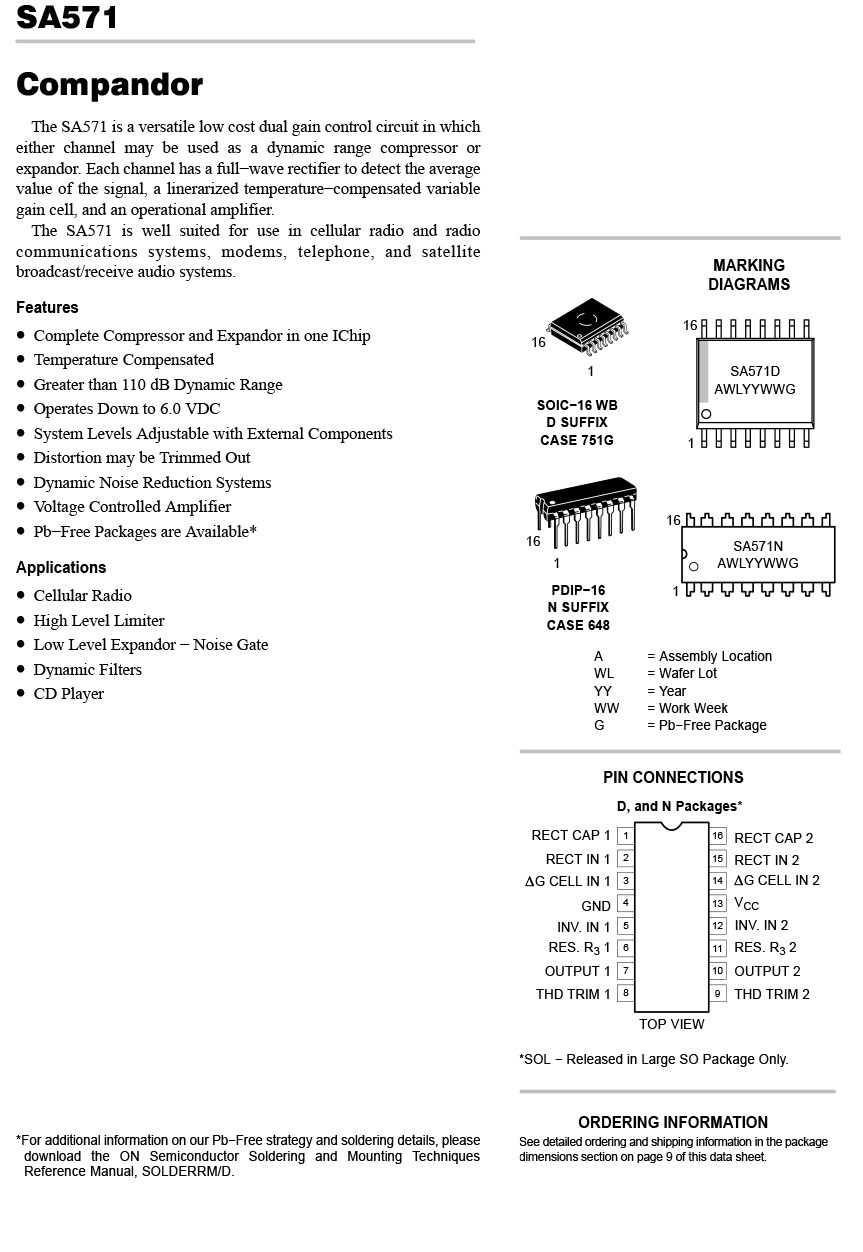

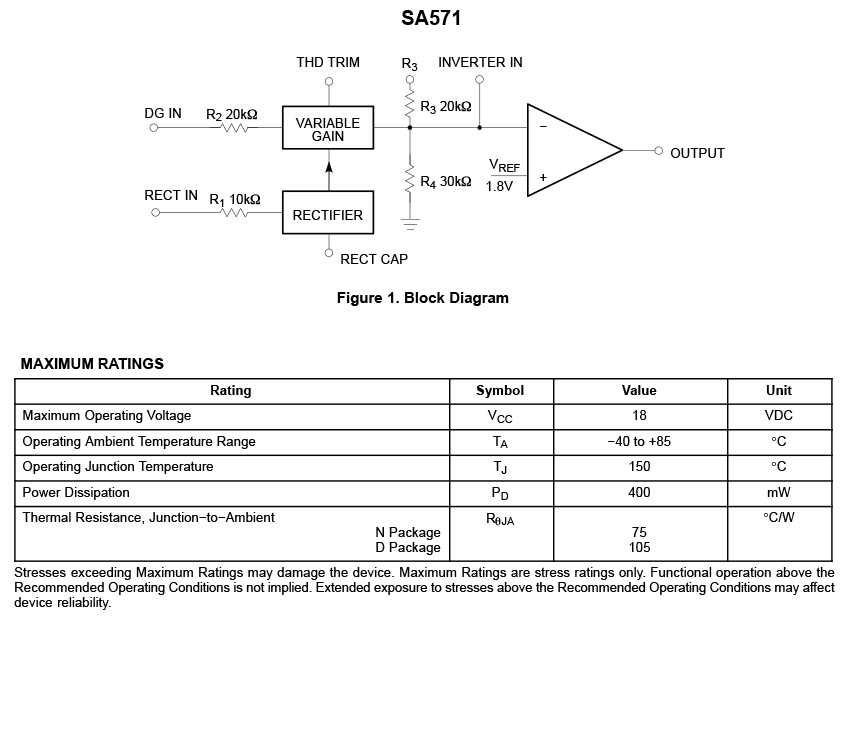

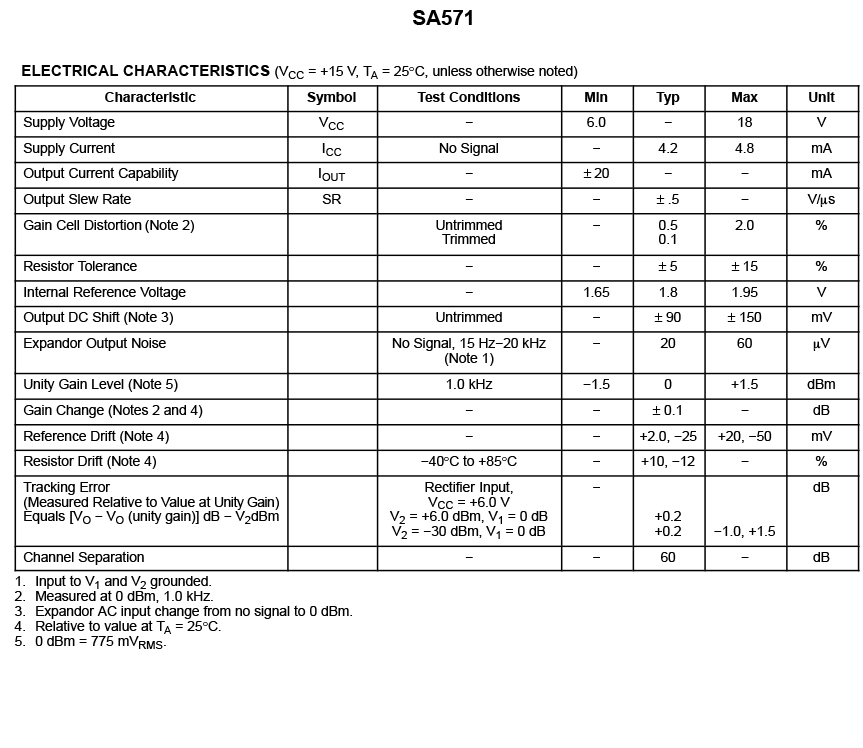

Product datasheet
For more information, please download
