Hot sale Original N82S147AN IC 512 X 8 OTPROM, 45 ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Programmable ROM

Manufacturer Product Number
N82S147AN
Description

N82S147AN IC 512 X 8 OTPROM, 45 ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Programmable ROM

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details



DESCRIPTION
The 82S147 and 82S147A are field programmable, which means that custom patterns are immediately available by following the Signetics Generic I fusing produce.

APPLICATIONS
● Prototyping/volume production
● Sequential controllers
● Microprogramming
● Hardware algorithms
● Control store
● Random logic
● Code conversion

Product Description


​

Type# Description
ANSC PART# ANSC - N82S147AN
Part Package Code DIP
Package Description 0.300 Inch, Plastic, Dip-20
Pin Count 20
Access Time-Max 45 Ns
JESD-30 Code R-PDIP-T20
Memory Density 4096 Bit
Memory IC Type Otp Rom
Memory Width 8
Number of Functions 1
Number of Terminals 20
Number of Words 512 Words
Number of Words Code 512
Operating Mode Asynchronous
Operating Temperature-Max 75 °C
Operating Temperature-Min
Organization 512x8
Package Body Material Plastic/Epoxy
Package Code DIP
Package Shape Rectangular
Package Style In-Line
Parallel/Serial Parallel
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount No
Technology Bipolar
Temperature Grade Commercial Extended
Terminal Form Through-Hole
Terminal Position Dual

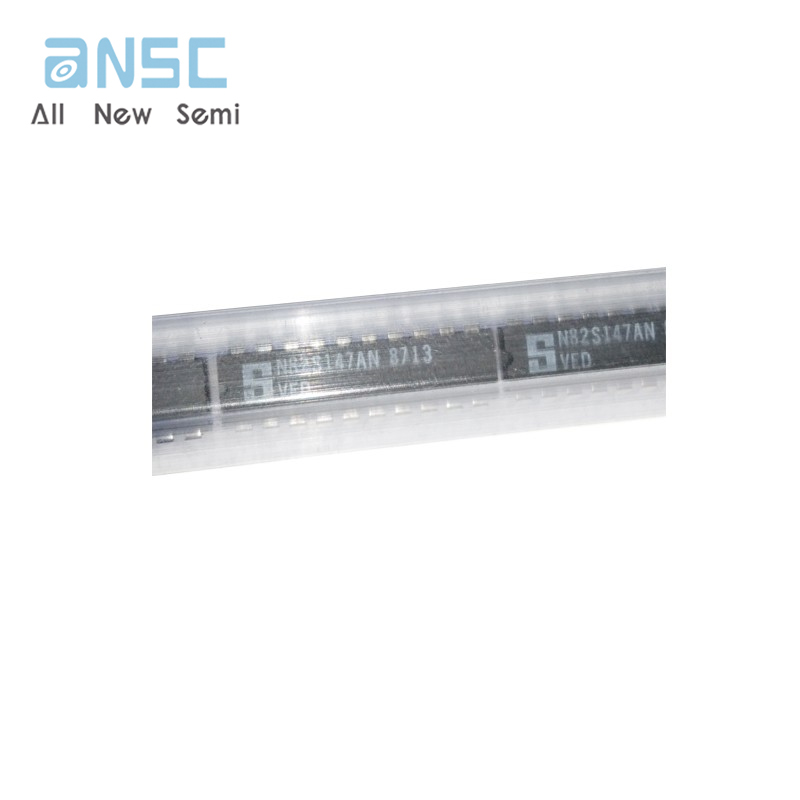

Actual image of the product

N82S147AN

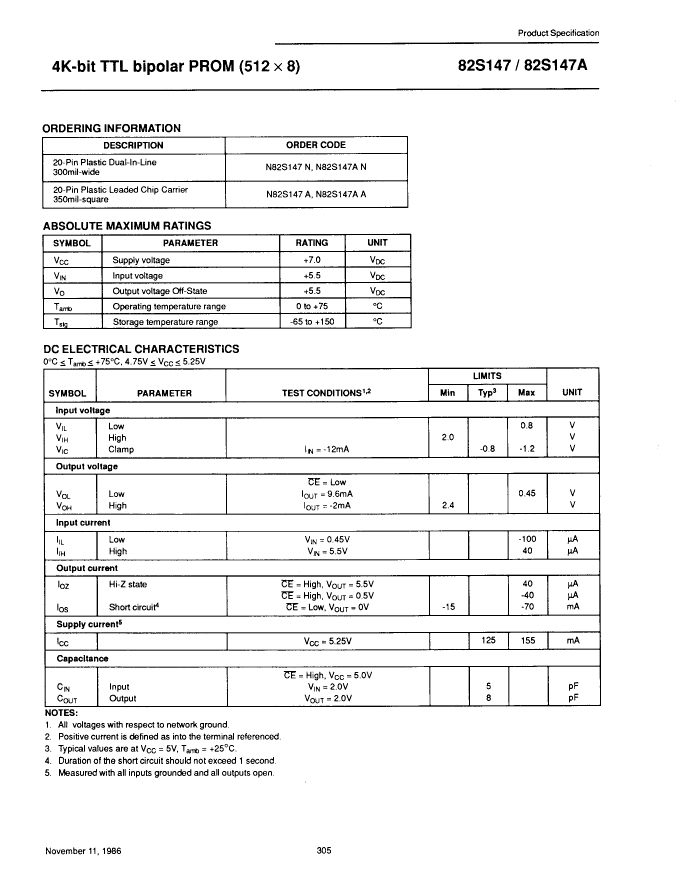

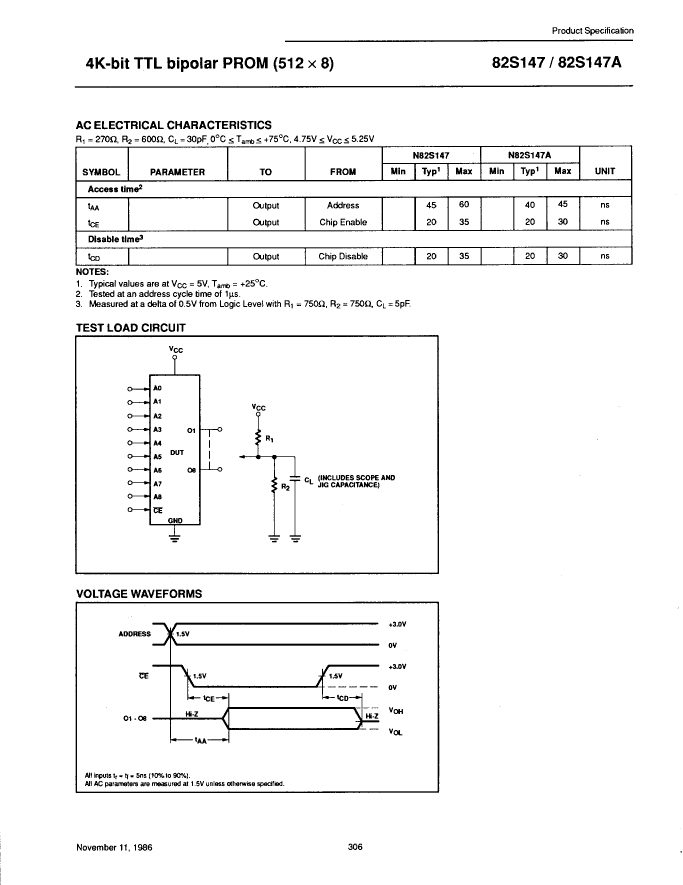

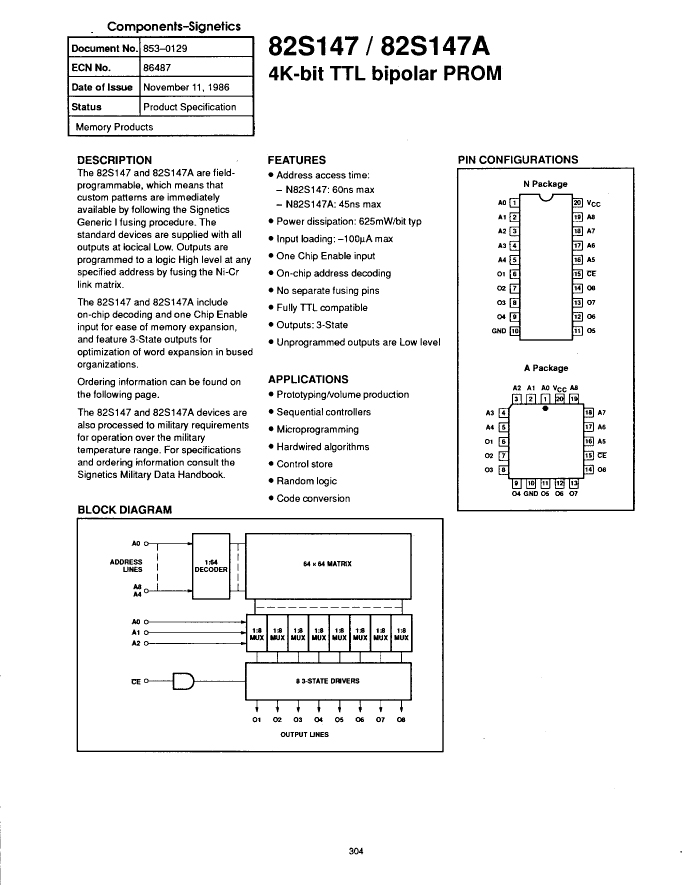

Product datasheet
