Hot sale Original MC14051BCP IC MUX 8:1 280OHM 16DIP 1 Circuit IC Switch 8:1 280Ohm 16-PDIP Interface Analog Switches
Manufacturer Product Number
MC14051BCP
Description
MC14051BCP IC MUX 8:1 280OHM 16DIP 1 Circuit IC Switch 8:1 280Ohm 16-PDIP Interface Analog Switches, Multiplexers, Demultiplexers
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

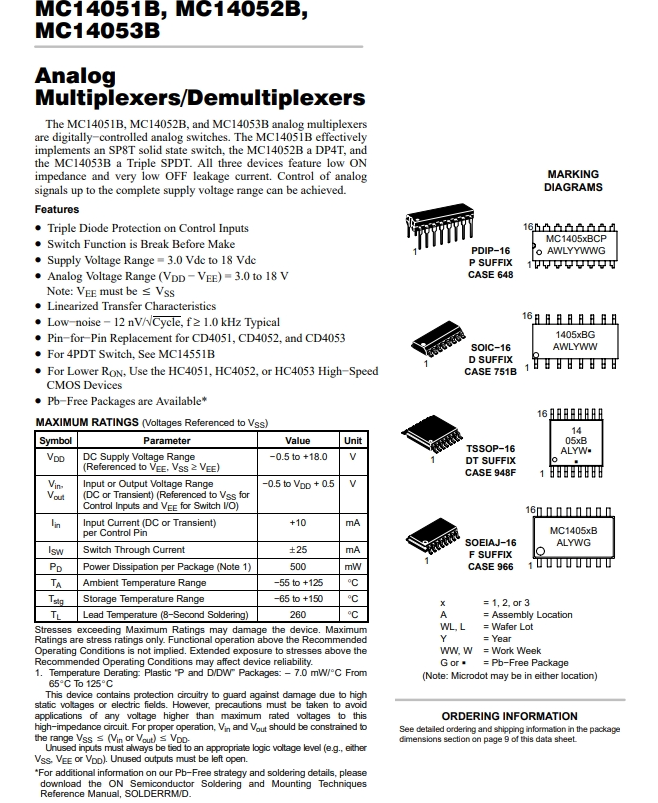

| Analog Multiplexers/Demultiplexers The MC14051B, MC14052B, and MC14053B analog multiplexers are digitally−controlled analog switches. The MC14051B effectively implements an SP8T solid state switch, the MC14052B a DP4T, and the MC14053B a Triple SPDT. All three devices feature low impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved. Features • Triple Diode Protection on Control Inputs • Switch Function is Break Before Make • Supply Voltage Range = 3.0 Vdc to 18 Vdc • Analog Voltage Range (VDD− VEE) = 3.0 to 18 V Note: VEEmust be VSS • Linearized Transfer Characteristics • Low−noise − 12 nV/√Cycle, f ≥1.0 kHz Typical • Pin−for−Pin Replacement for CD4051, CD4052, and CD4053 • For 4PDT Switch, See MC14551B • For Lower RON, Use the HC4051, HC4052, or HC4053 High−Speed CMOS Devices • Pb−Free Packages are Available* |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MC14051BCP |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 280Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 18V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 17MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 7.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | MC14051 |

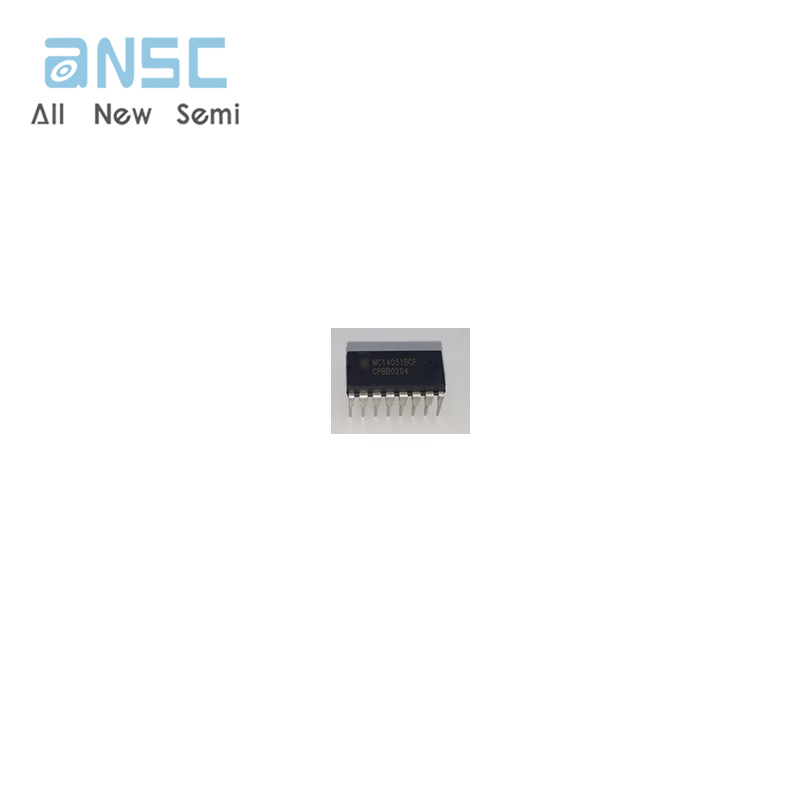

Actual image of the product

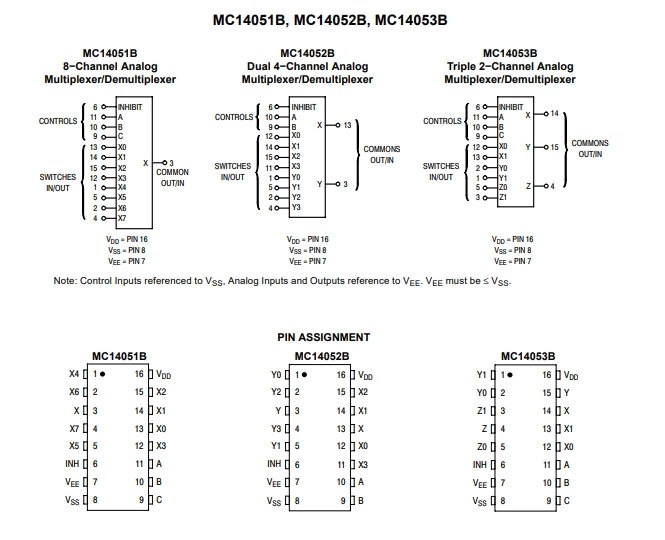

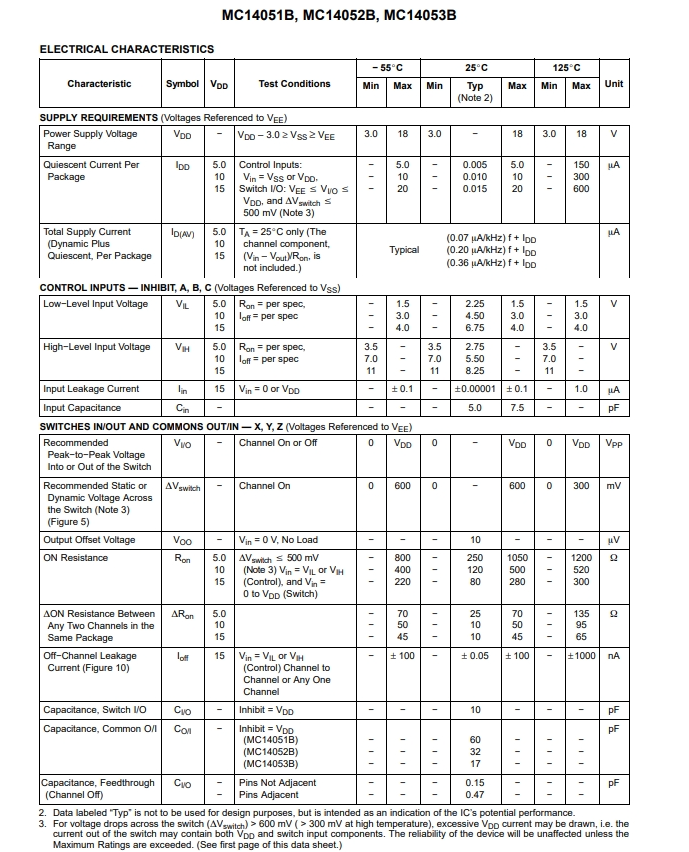

Product datasheet
