Hot Original SN75LVCP600SDSKT IC REDRIVER SAS/SATA 1CH 10SON Buffer, ReDriver 1 Channel 6Gbps 10-SON (2.5x2.5)

Product Details

1 Features

1• Single 3.3-V Supply

• Suitable to Receive 6-Gbps Data Over up to >40

Inches (1 m) of FR4 PCB

• Two-Level RX and TX Equalization

– RX→ 7, 15 dB

– TX→ 0, –1.3 dB

• Pin-Selectable SATA/SAS Signaling

• Programmable Squelch Threshold for Long

Channels

• Low Power in Active, Partial, and Slumber States

– 106 mW Typical (Active Mode at 6 Gbps)

– <11 mW (When Link in Partial and Slumber

State)

• Ultra-small Package for Optimal Placement

– 10-Pad 2.5-mm × 2.5-mm QFN

• High ESD-Transient Protection

– HBM: 9,000 V

– CDM: 1,500 V

– MM: 200 V

2 Applications

• Notebook and Desktop PCs

• Docking Stations

• Active Cable

• Servers

• Workstations

Product Description

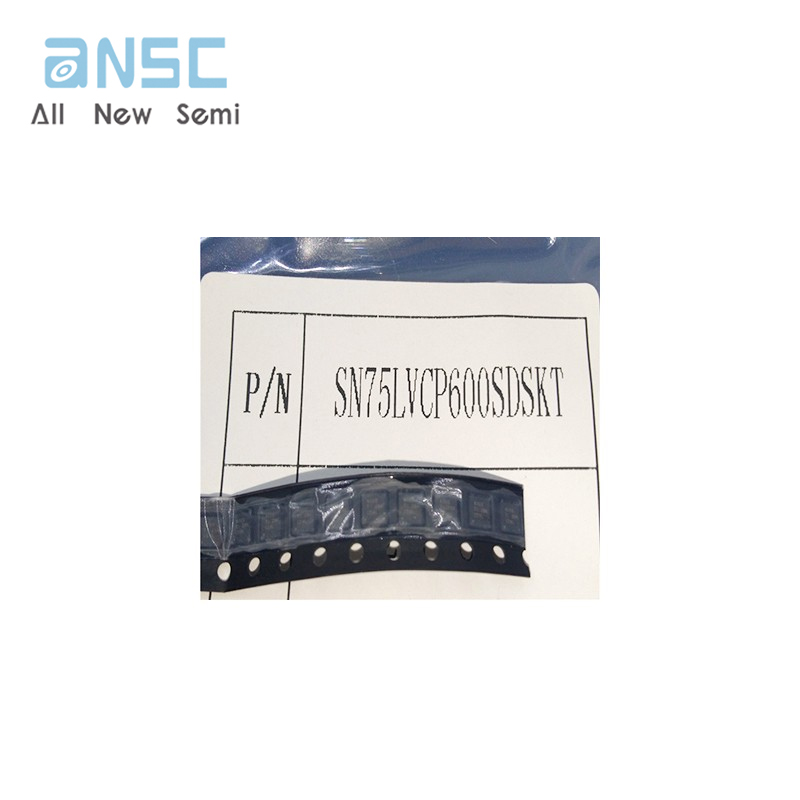

Actual image of the product

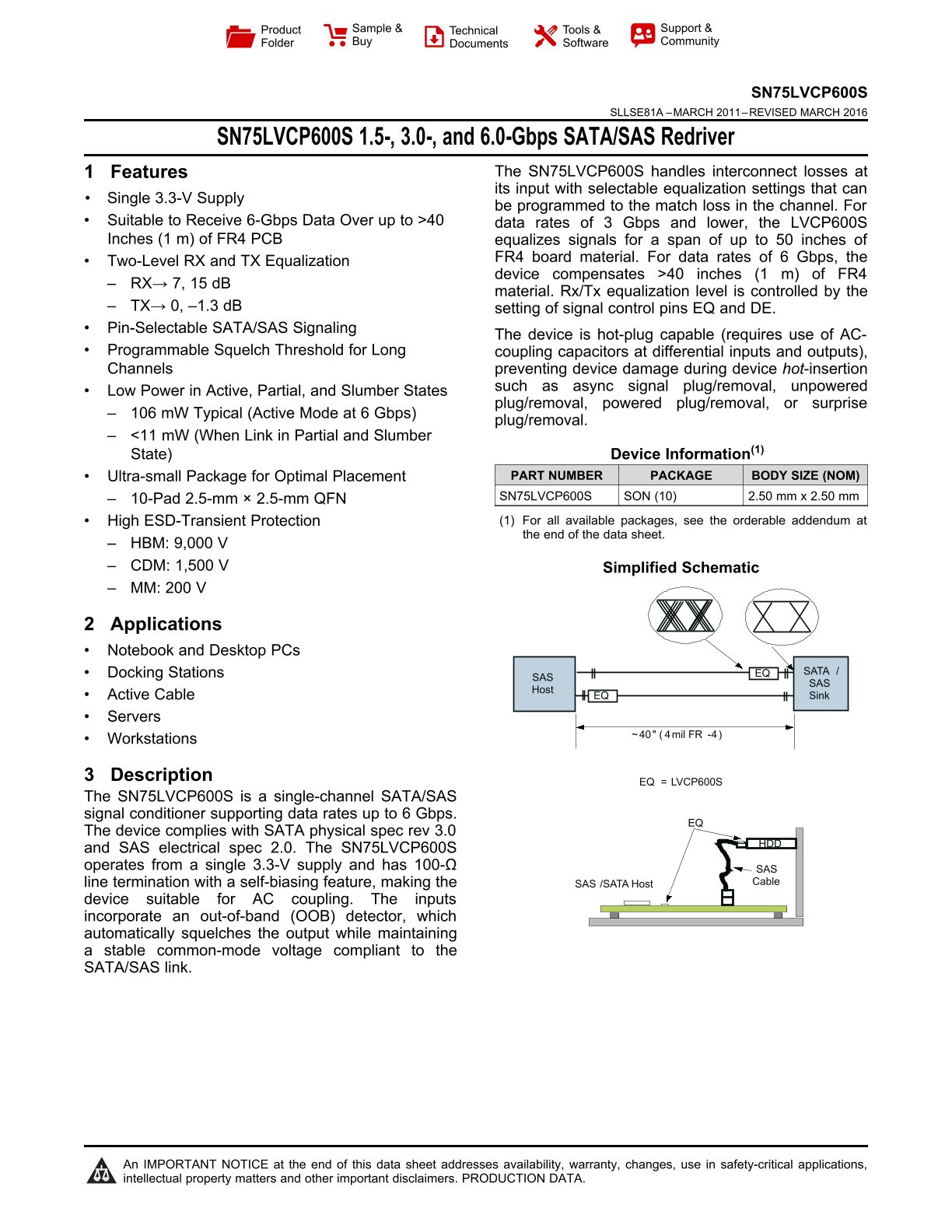

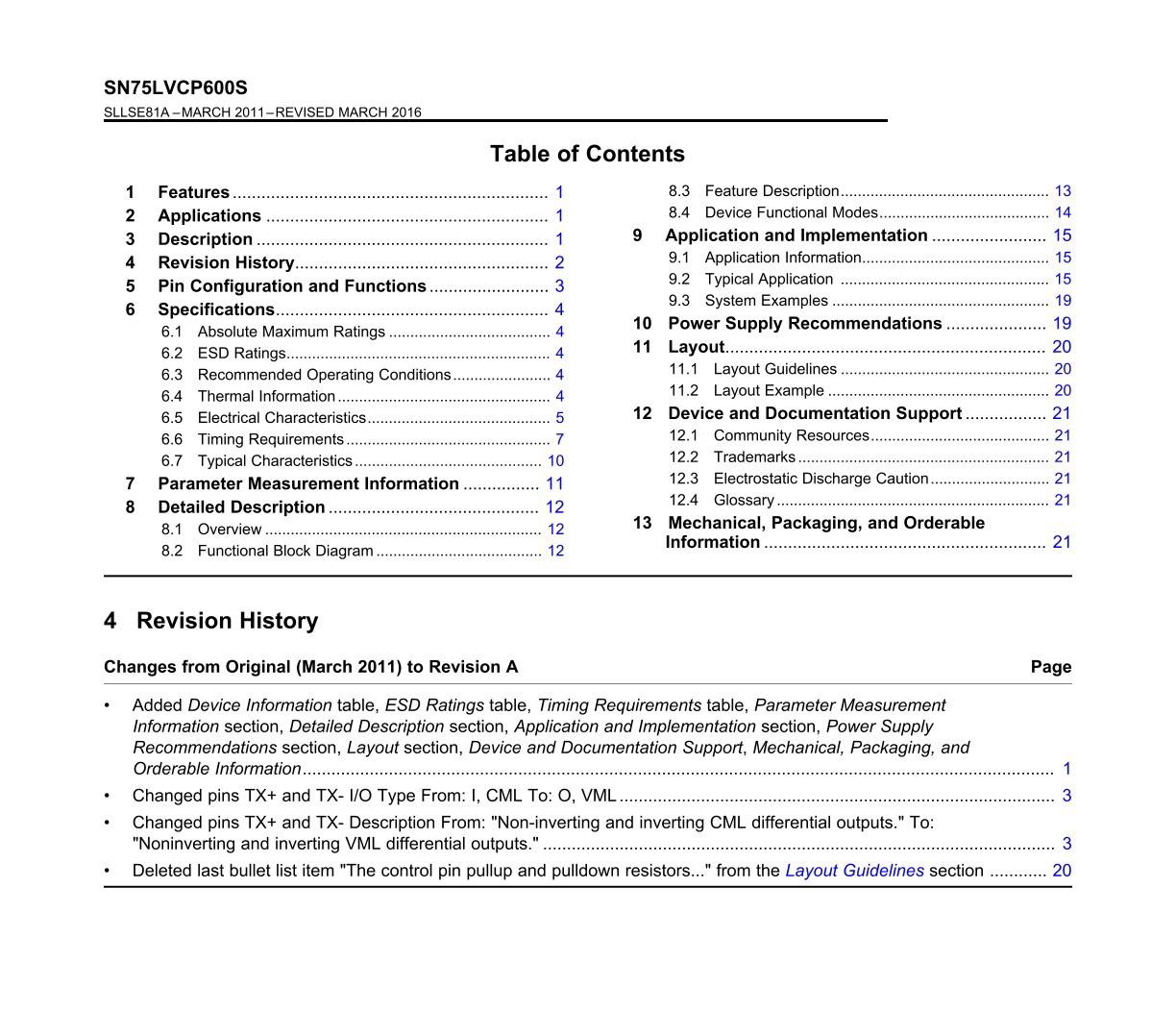

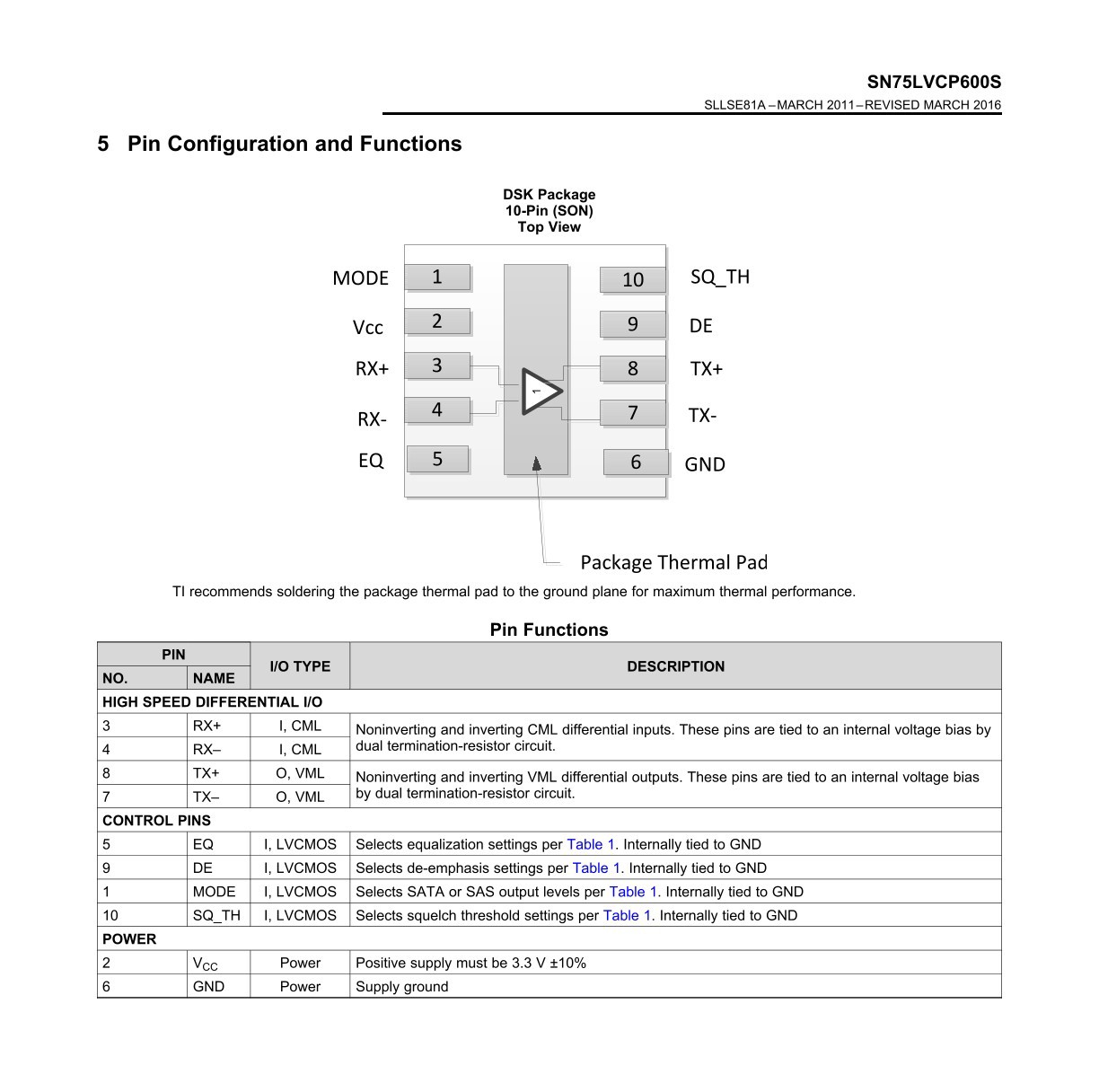

Product datasheet
