Hot sale Original EPM5032DC-20 Programmable Logic UV PLD 20ns PAL-Type CMOS CDIP28 WINDOWED CERDIP-28

Manufacturer

Original

Manufacturer Product Number

EPM5032DC-20

Description

EPM5032DC-20 Programmable Logic UV PLD 20ns PAL-Type CMOS CDIP28 WINDOWED CERDIP-28

Package Condition

Original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

High-Speed, High-Density MAX 5000 Devices

Product Description

Type#	Description
ANSC PART#	ANSC- EPM5032DC-20
Ihs Manufacturer	Original
Part Package Code	DIP
Package Description	WINDOWED, CERDIP-28
Pin Count	28
Reach Compliance Code	Unknown
Additional Feature	MACROCELLS INTERCONNECTED BY PIA; 1 LAB; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	62.5 MHz
JESD-30 Code	R-GDIP-T28
JESD-609 Code	e0
Length	25.908 mm
Number of Dedicated Inputs	7
Number of I/O Lines	16
Number of Inputs	24
Number of Outputs	16
Number of Product Terms	320
Number of Terminals	28
Operating Temperature-Max	70 °C
Operating Temperature-Min
Organization	7 DEDICATED INPUTS, 16 I/O
Output Function	MACROCELL
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP28,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE
Peak Reflow Temperature (Cel)	220
Programmable Logic Type	UV PLD
Propagation Delay	20 ns
Qualification Status	Not Qualified
Seated Height-Max	4.318 mm
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm

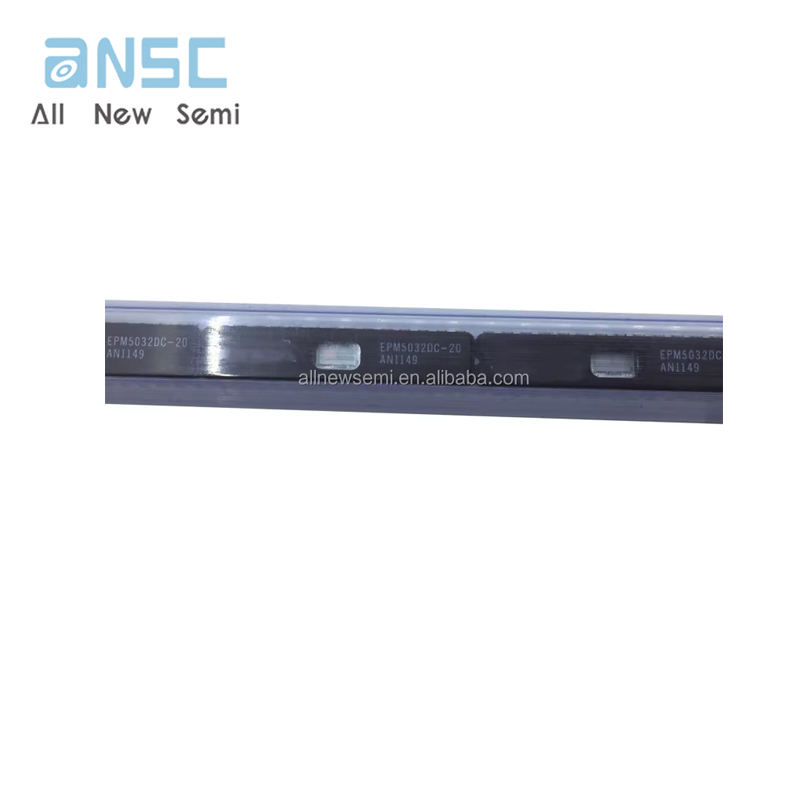

Actual image of the product

EPM5032DC-20

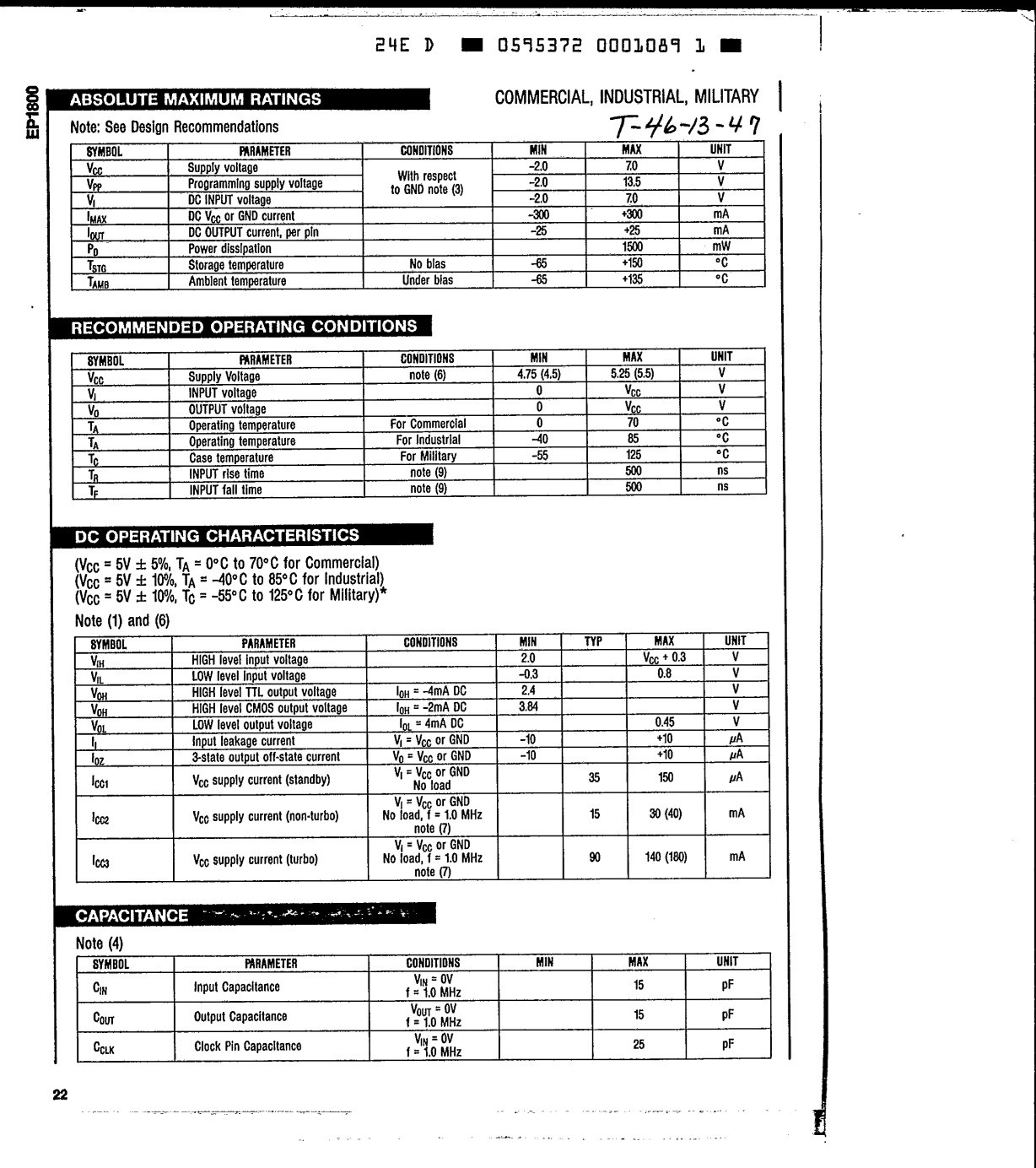

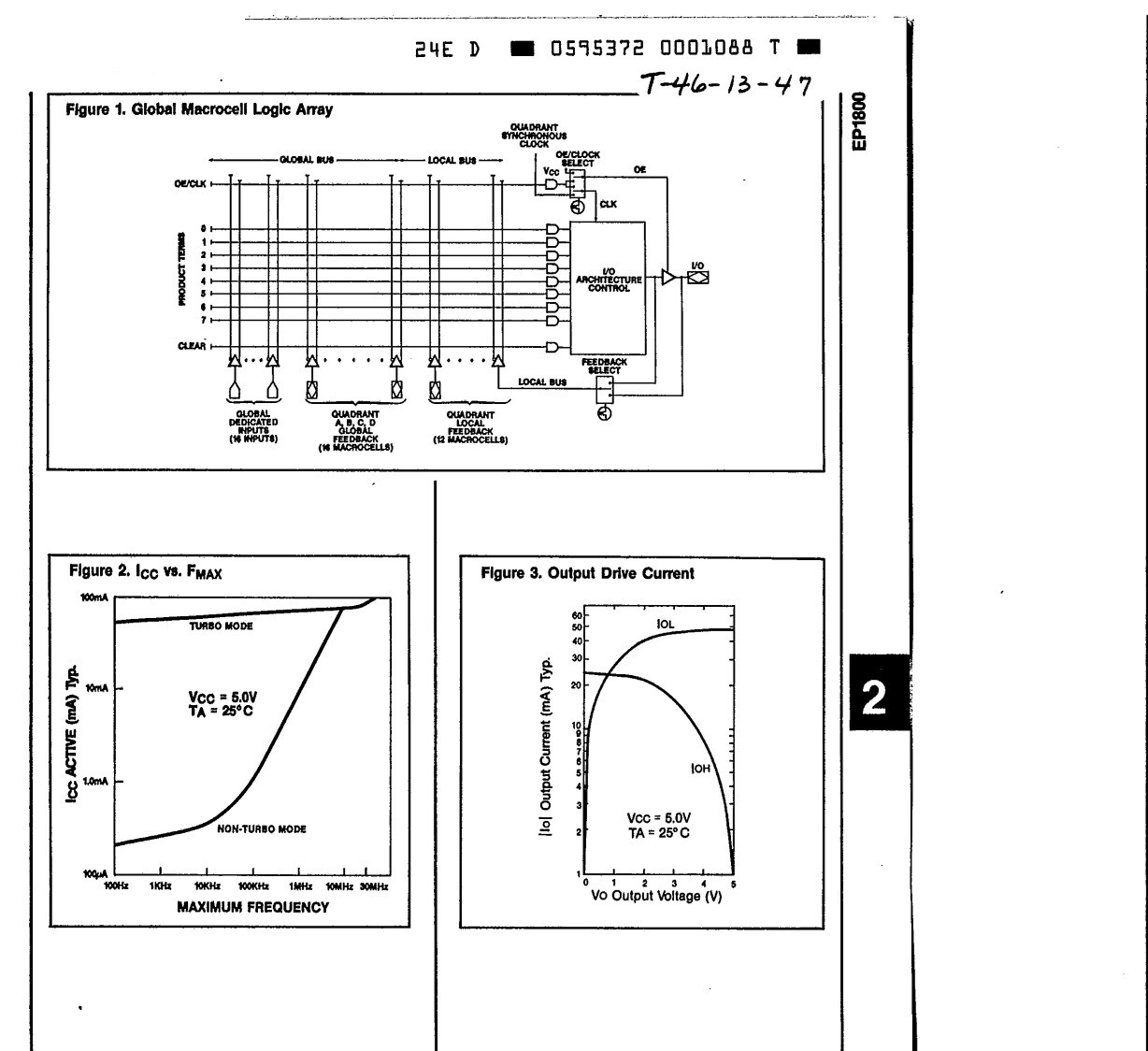

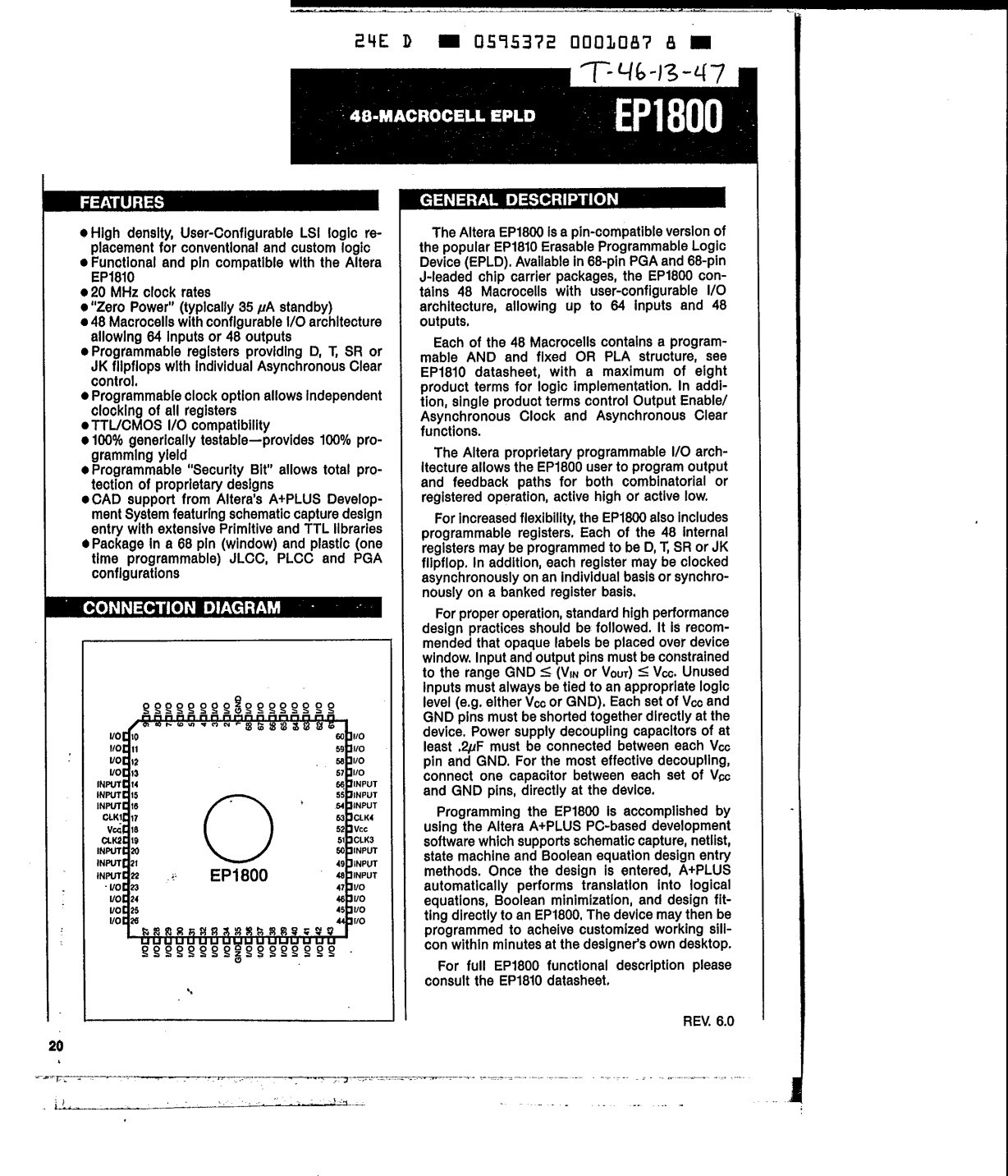

Product datasheet

For more information, please download
