Hot sale Original SN75LVDS83BDGG IC TRANSCEIVER 5/0 56TSSOP 5/0 Driver LVDS 56-TSSOP
Manufacturer Product Number
SN75LVDS83BDGG
Description
SN75LVDS83BDGG IC TRANSCEIVER 5/0 56TSSOP 5/0 Driver LVDS 56-TSSOP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SN75LVDS83BDGG is a high-speed, low-voltage differential signaling (LVDS) driver , designed for general-purpose applications. This 56-pin, surface-mount device operates within a temperature range of -10°C to 70°C and requires a single 3.3V power supply. With a maximum data rate of 135 Mbps, it is suitable for high-speed data transmission applications. Features: High-Speed Data Transmission: The SN75LVDS83BDGG supports high-speed data transmission with a maximum data rate of 135 Mbps. Low-Voltage Operation: It operates on a single 3.3V power supply, making it suitable for battery-powered devices. Differential Output: The device features differential output, which provides improved noise immunity and reduces electromagnetic interference (EMI). Complementary Output Polarity: The output polarity is complementary, ensuring that the output signal is the inverse of the input signal. High-Current Drive Capability: The device can drive high-current loads, making it suitable for applications requiring high drive capability. Applications: Primary Applications: The SN75LVDS83BDGG is suitable for high-speed data transmission applications such as: High-speed data buses Data acquisition systems Industrial control systems Secondary Applications: It can also be used in other applications such as: Audio and video transmission systems Medical devices Aerospace and defense systems |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC- SN75LVDS83BDGG |
|
Category |
Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers |
|
Manufacturer |
/ |
|
Series |
FlatLink™ |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Type |
Driver |
|
Protocol |
LVDS |
|
Number of Drivers/Receivers |
5/0 |
|
Duplex |
- |
|
Data Rate |
- |
|
Voltage - Supply |
3V ~ 3.6V |
|
Operating Temperature |
-10°C ~ 70°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
56-TFSOP (0.240", 6.10mm Width) |
|
Supplier Device Package |
56-TSSOP |
|
Base Product Number |
75LVDS83 |

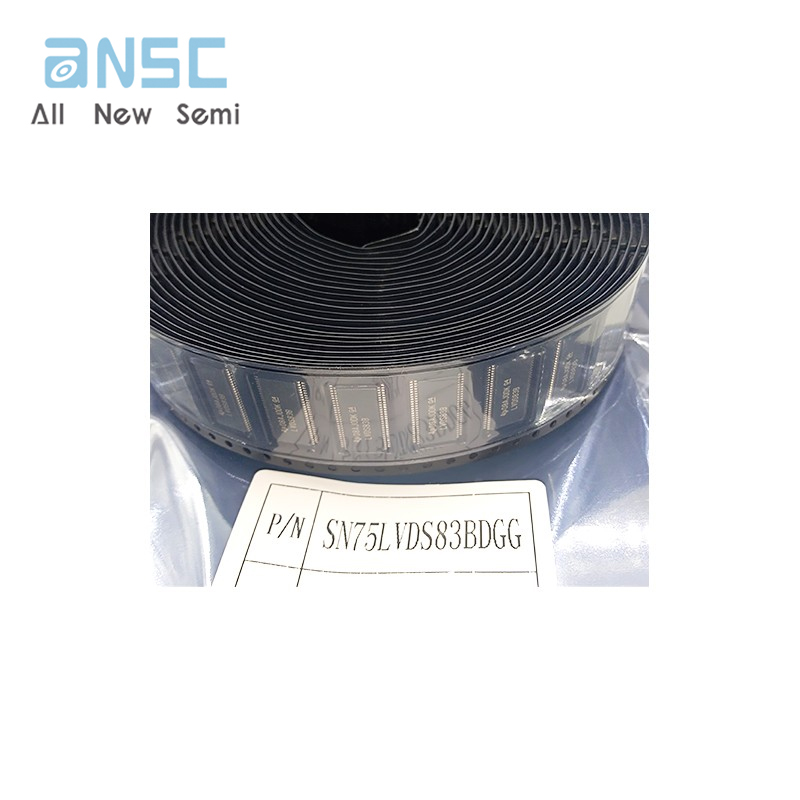

Actual image of the product

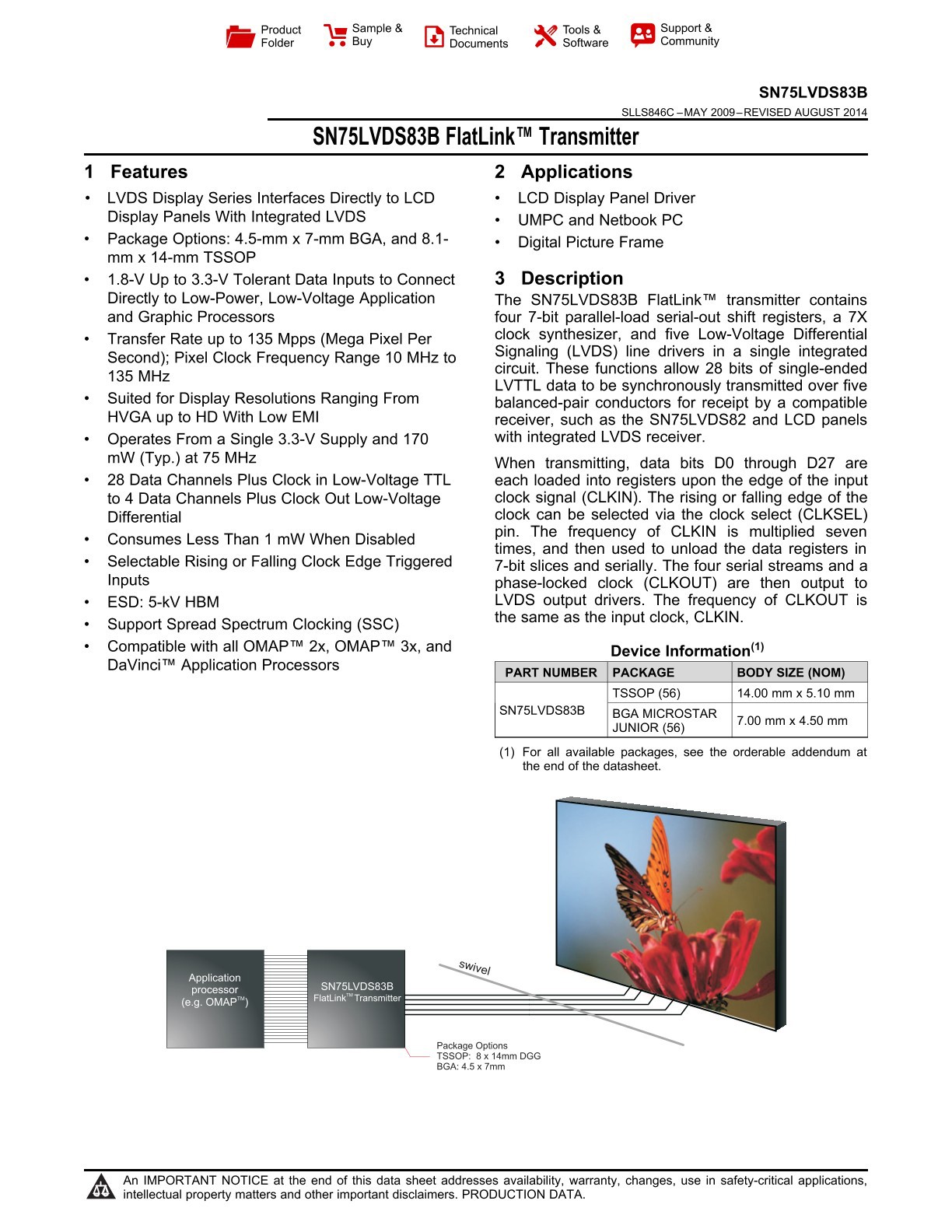

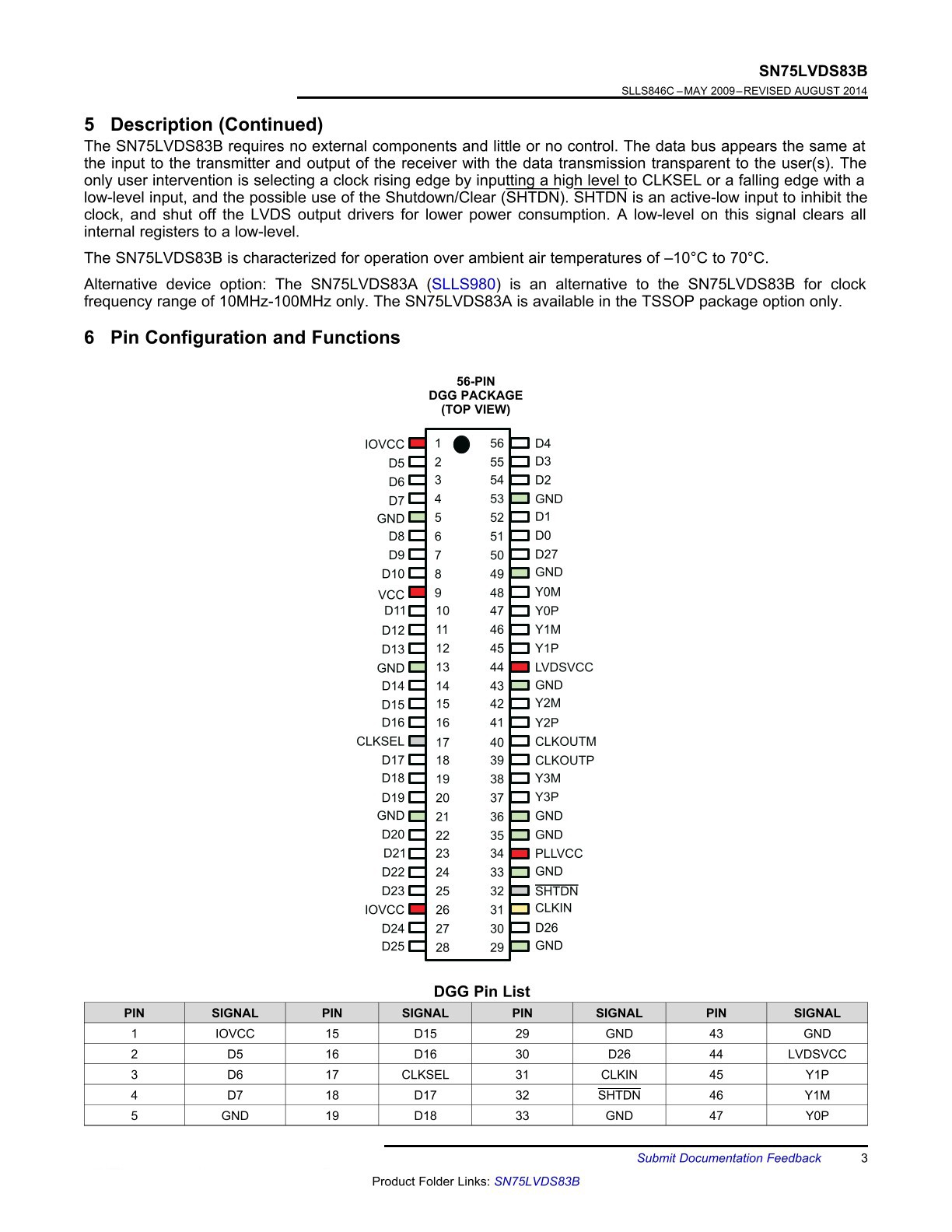

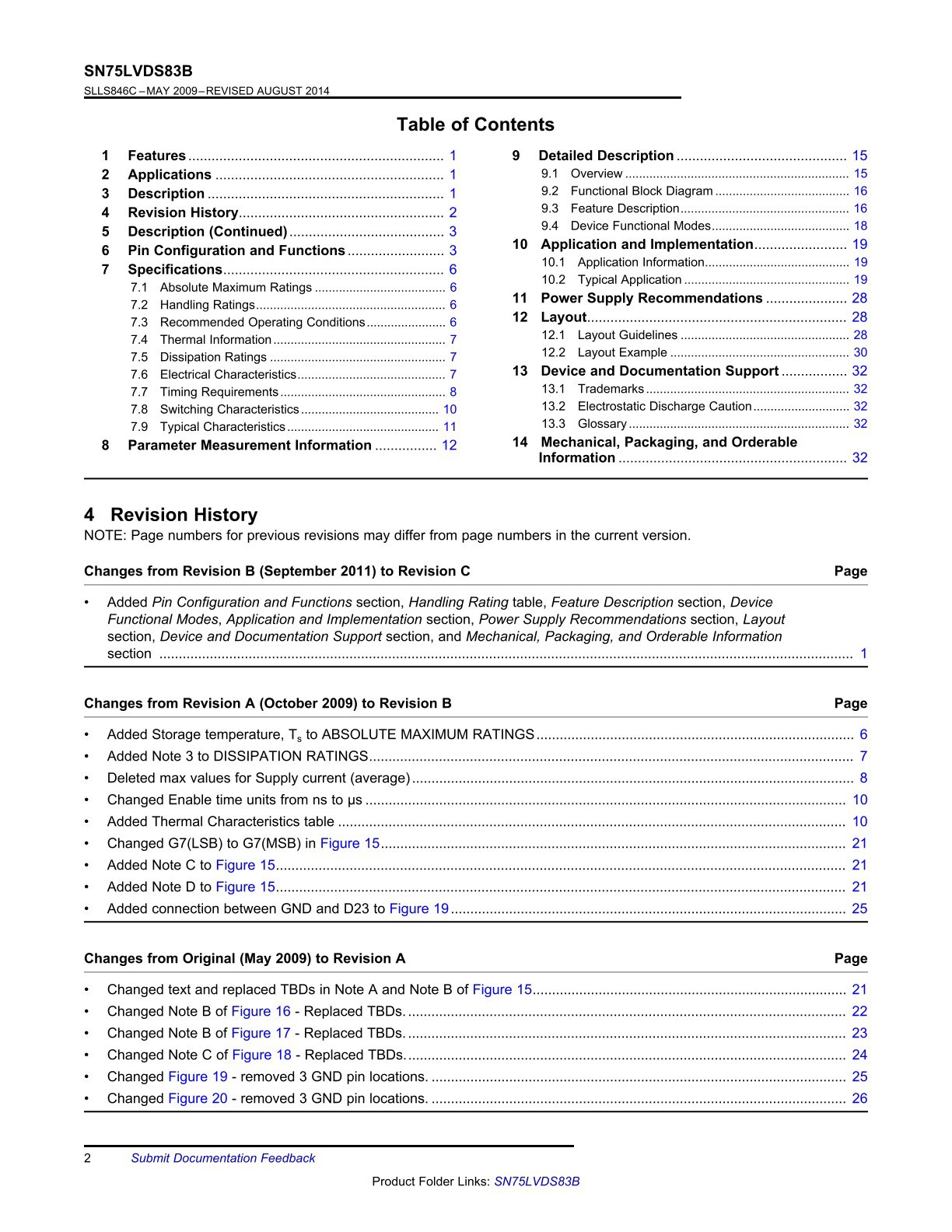

Product datasheet
For more information, please download
