You can contact me for the best price MAX7456EUI IC ON-SCREEN DISPLAY 28-TSSOP Hot sale Original
Manufacturer Product Number
MAX7456EUI
Description
MAX7456EUI IC ON-SCREEN DISPLAY 28-TSSOP Hot sale Original
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The MAX7456EUI+ is a surface-mount, industrial-grade, OSD (On-Screen Display) video generator integrated circuit (IC) designed by Maxim Integrated. This 28-pin, 28-TSSOP (0.173, 4.40mm width) exposed pad package IC is suitable for various applications, including security systems and video routing. Features: SPI and Serial Interface: The MAX7456EUI+ features a SPI and serial interface for easy communication with other devices. Video Generation: It generates video signals for on-screen displays, supporting both PAL and NTSC video standards. Industrial Temperature Range: The IC operates within an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments. Low Power Consumption: It consumes low power, with an operating supply current of 58mA and a maximum supply current of 80mA. Compact Package: The IC is available in a compact 28-TSSOP package, measuring 9.8mm in length and 4.5mm in width. Applications: Primary Applications: Security systems, video routing, and other applications requiring on-screen display video generation. Secondary Applications: Other industrial and commercial applications where low-power, high-reliability video generation is required. Alternative Parts: MAX7456: The base part number for the MAX7456EUI+, which is an obsolete part. Other OSD video generators: Depending on specific requirements, other OSD video generators from Maxim Integrated or other manufacturers may be suitable alternatives. |

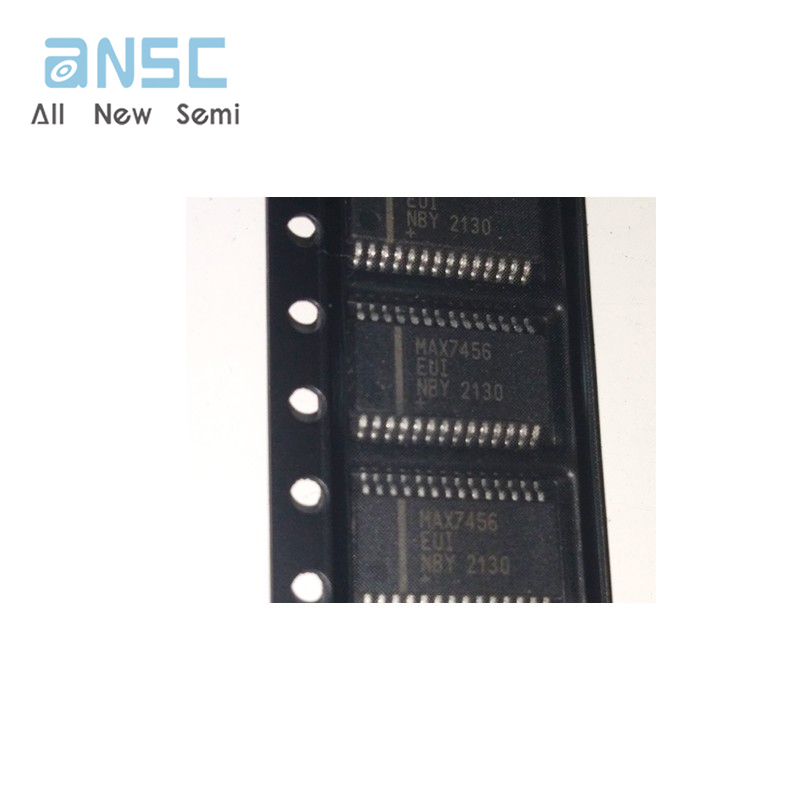

Actual image of the product

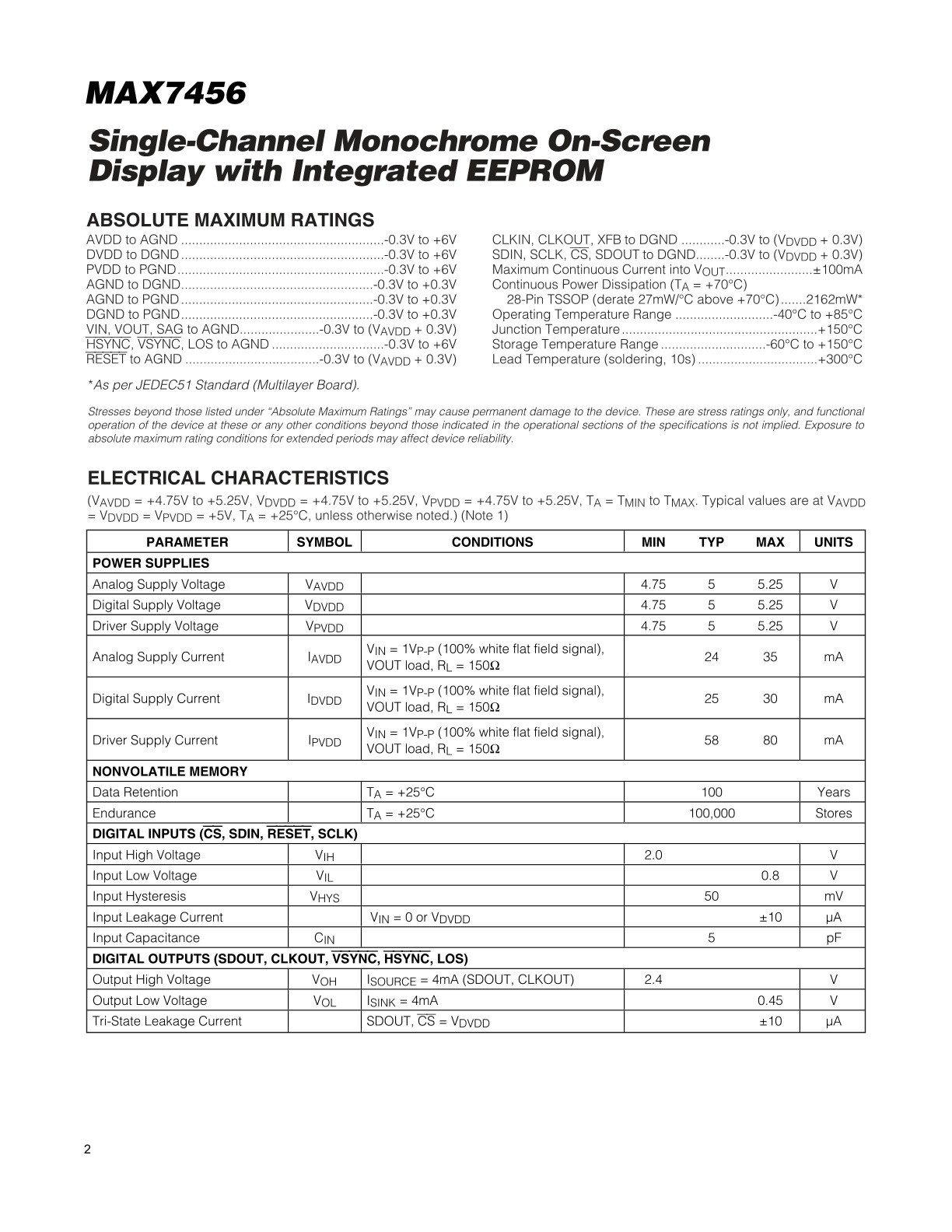

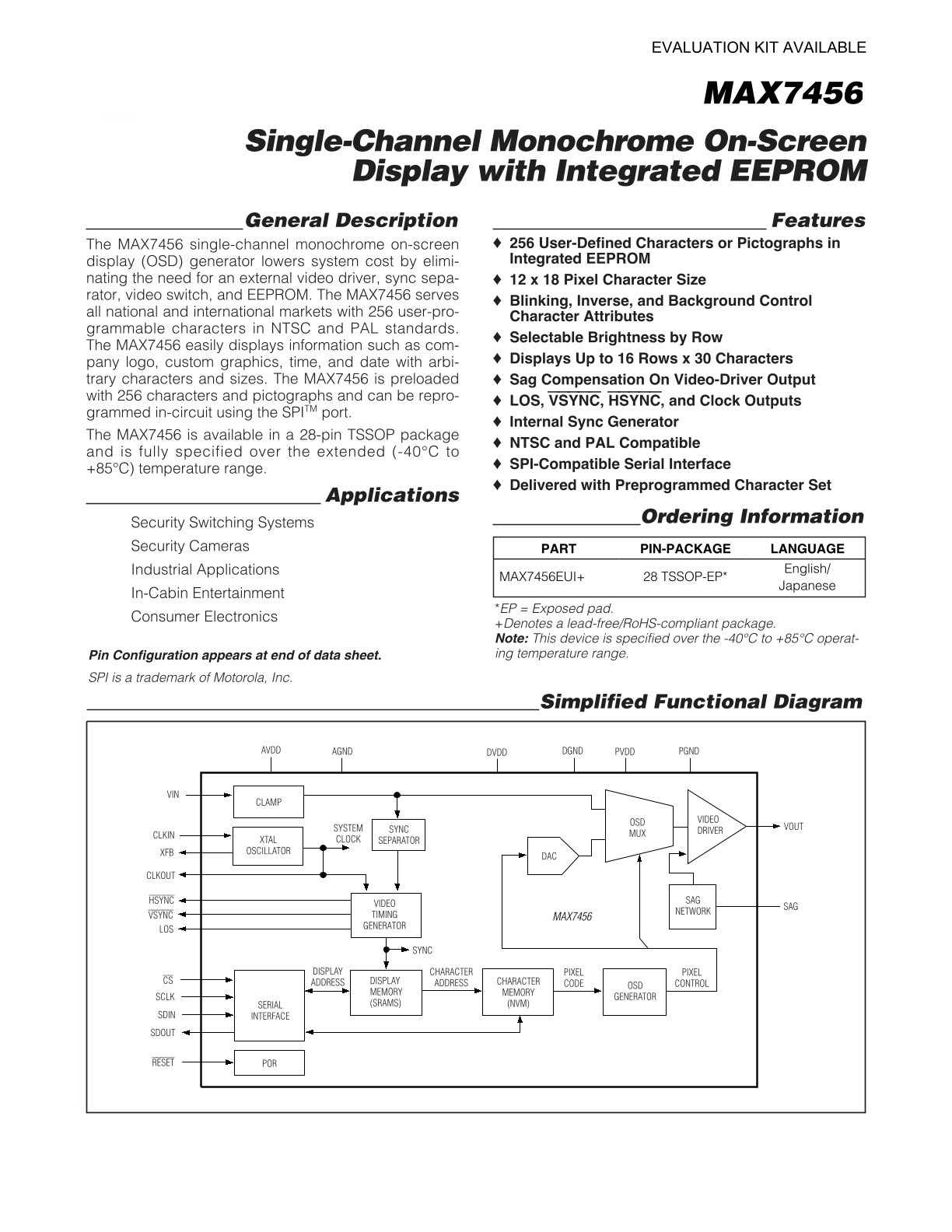

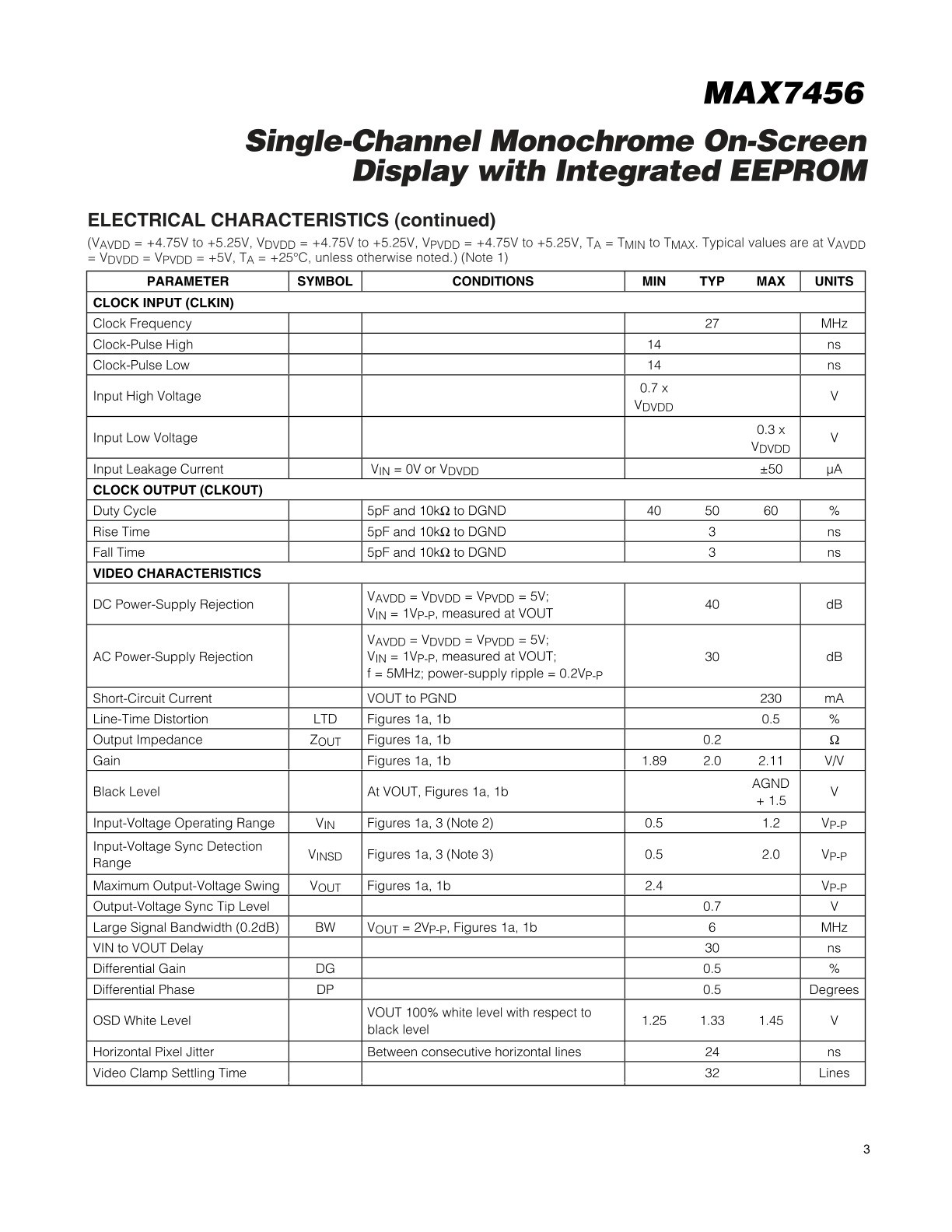

Product datasheet
For more information, please download
