Hot sale Original MAX7452ESA Consumer Circuit, BICMOS, PDSO8, 0.150 INCH, SOIC-8

Manufacturer Product Number
MAX7452ESA
Description

MAX7452ESA Consumer Circuit, BICMOS, PDSO8, 0.150 INCH, SOIC-8

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​MAX7452ESA Video Processing Linear ICs applications.
High-Definition Digital TV
LCD
Plasma
DLP
Notebook PCs
Desktop PCs
PC Docking Stations
PC Standalone Video Cards
Consumer, Professional, Automotive
Industrial Video

Product Description

Type# Description
ANSC PART# ANSC - MAX7452ESA
Part Package Code SOIC
Package Description 0.150 Inch, Soic-8
Pin Count 8
Consumer IC Type Consumer Circuit
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.89 Mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code HLSOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline, Heat Sink/Slug, Low Profile
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 1.68 Mm
Supply Current-Max 20 Ma
Supply Voltage-Max (Vsup) 5.25 V
Supply Voltage-Min (Vsup) 4.75 V
Surface Mount Yes
Technology Bicmos
Temperature Grade Industrial
Terminal Finish Tin Lead
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Width 3.9 Mm

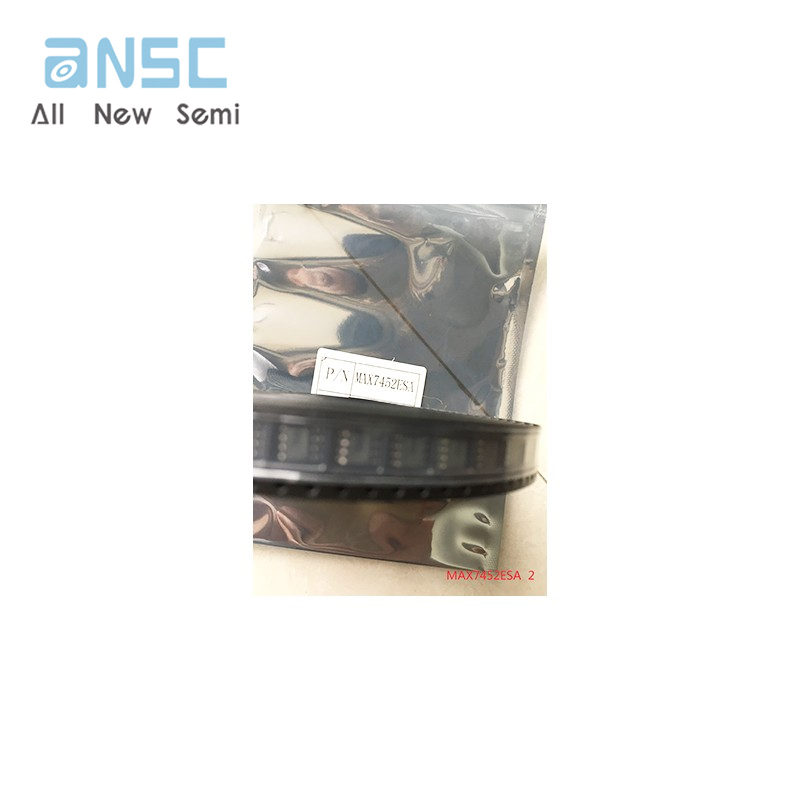

Actual image of the product

MAX7452ESA

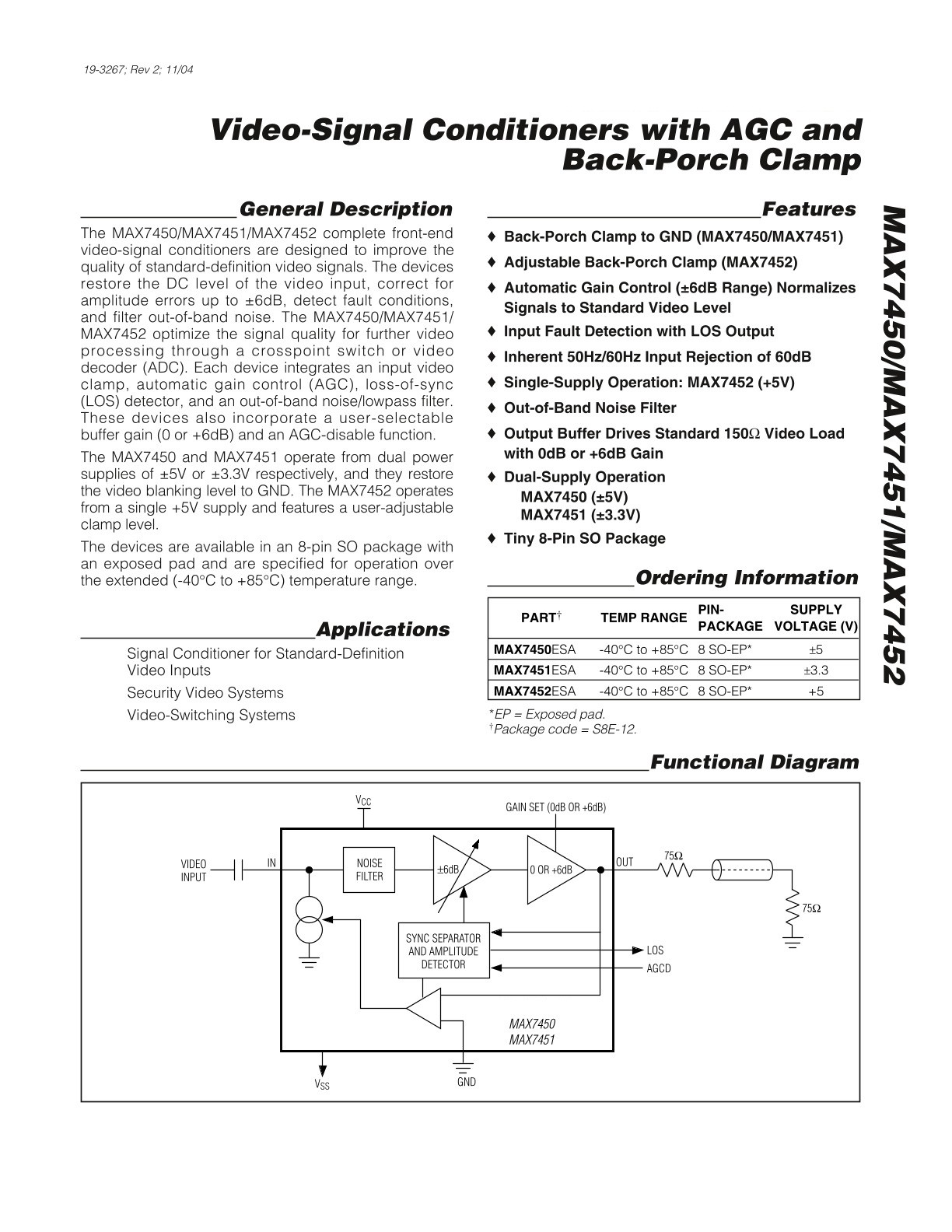

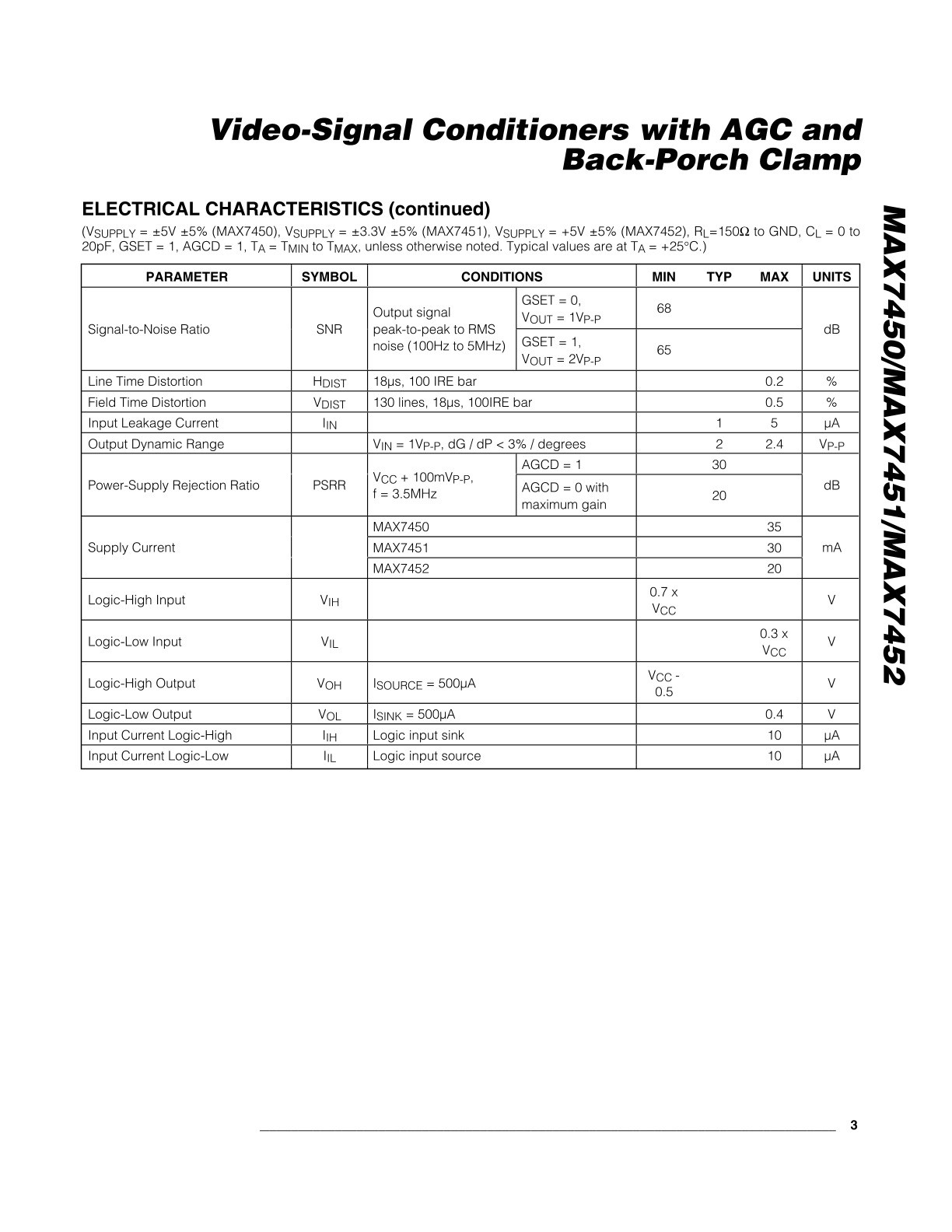

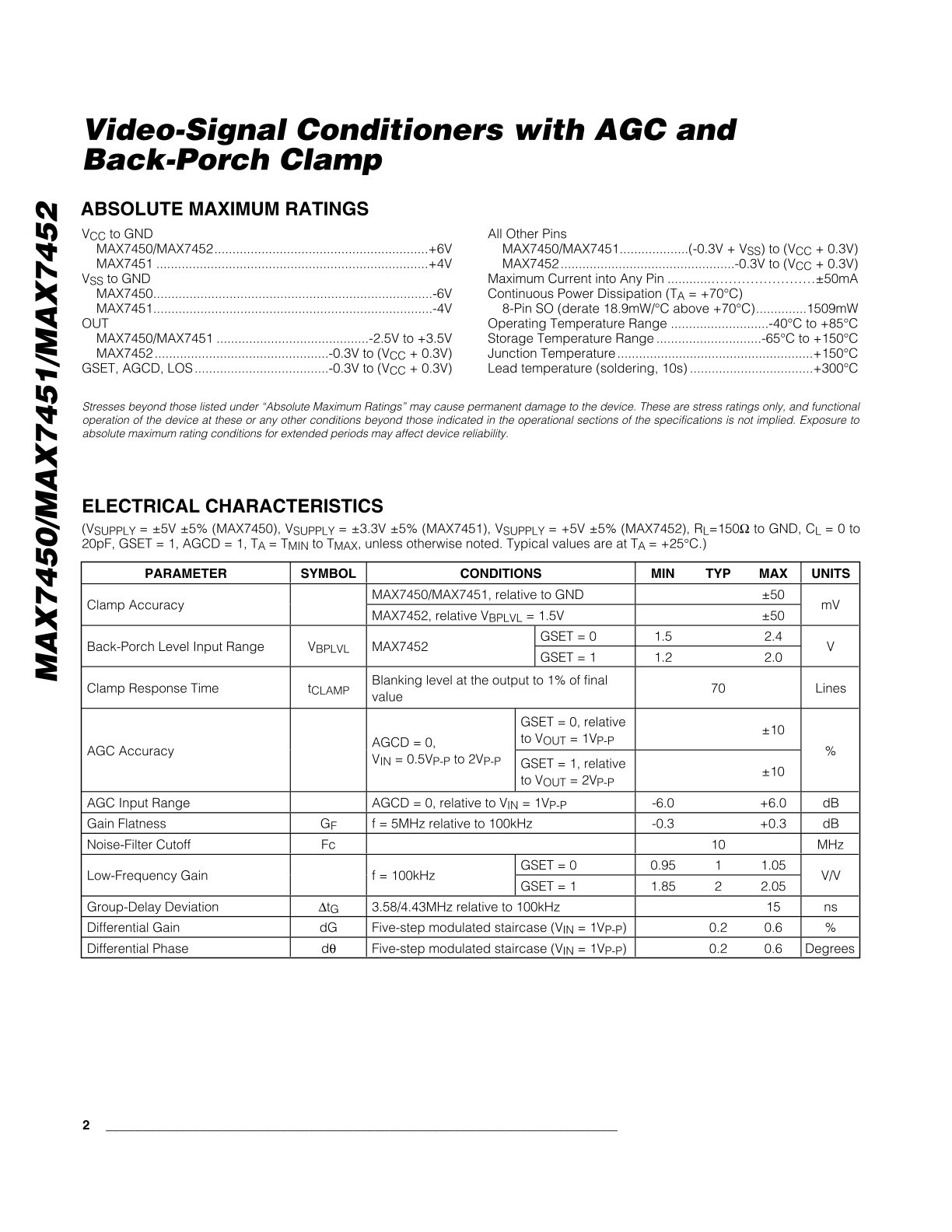

Product datasheet

For more information, please download
