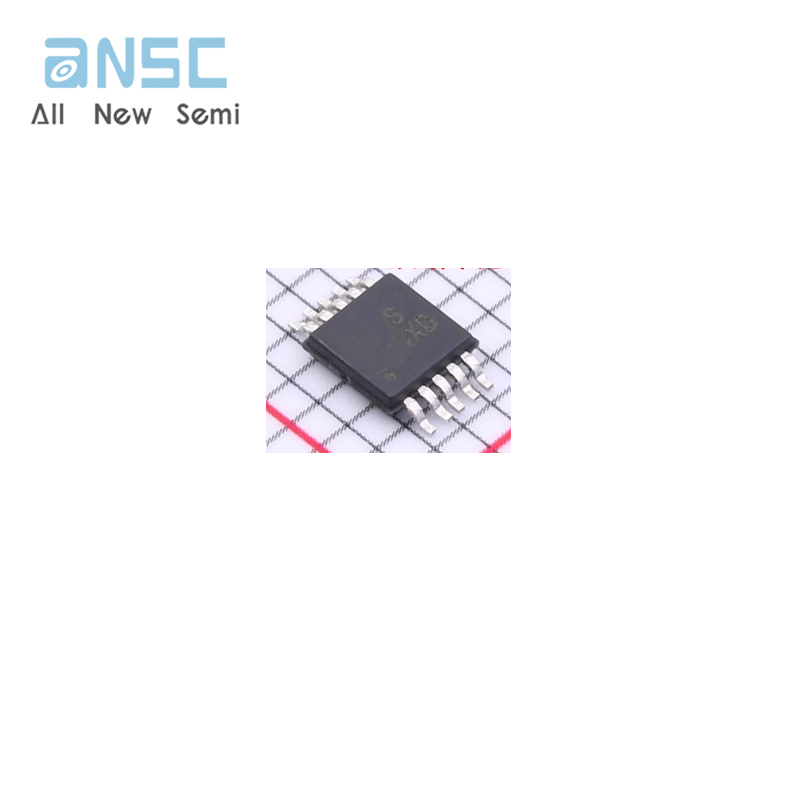

Hot sale original ADG621BRMZ IC SW SPST-NOX2 5.5OHM 10MSOP 2 Circuit IC Switch 1:1 5.5Ohm 10-MSOP
Manufacturer Product Number
ADG621BRMZ
Description
ADG621BRMZ IC SW SPST-NOX2 5.5OHM 10MSOP 2 Circuit IC Switch 1:1 5.5Ohm 10-MSOP
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The ADG621 is a monolithic, CMOS, single-pole, single-throw (SPST) switch. The ADG621 conducts equally well in both directions when on. The ADG621 contains two independent switches. The ADG621 is a normally open switch. FEATURES 5.5 Ω (maximum) on resistance 0.9 Ω (typical) on resistance flatness 2.7 V to 5.5 V single supply ±2.7 V to ±5.5 V dual supply Rail-to-rail operation 10-lead MSOP package Typical power consumption: <0.01 µW TTL-/CMOS-compatible inputs APPLICATIONS Automatic test equipment Power routing Communication systems Data acquisition systems Sample-and-hold systems Avionics Relay replacements Battery-powered systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG621BRMZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 250mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 120ns, 70ns |
| -3db Bandwidth | 230MHz |
| Charge Injection | 110pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | ADG621 |
Product Photos

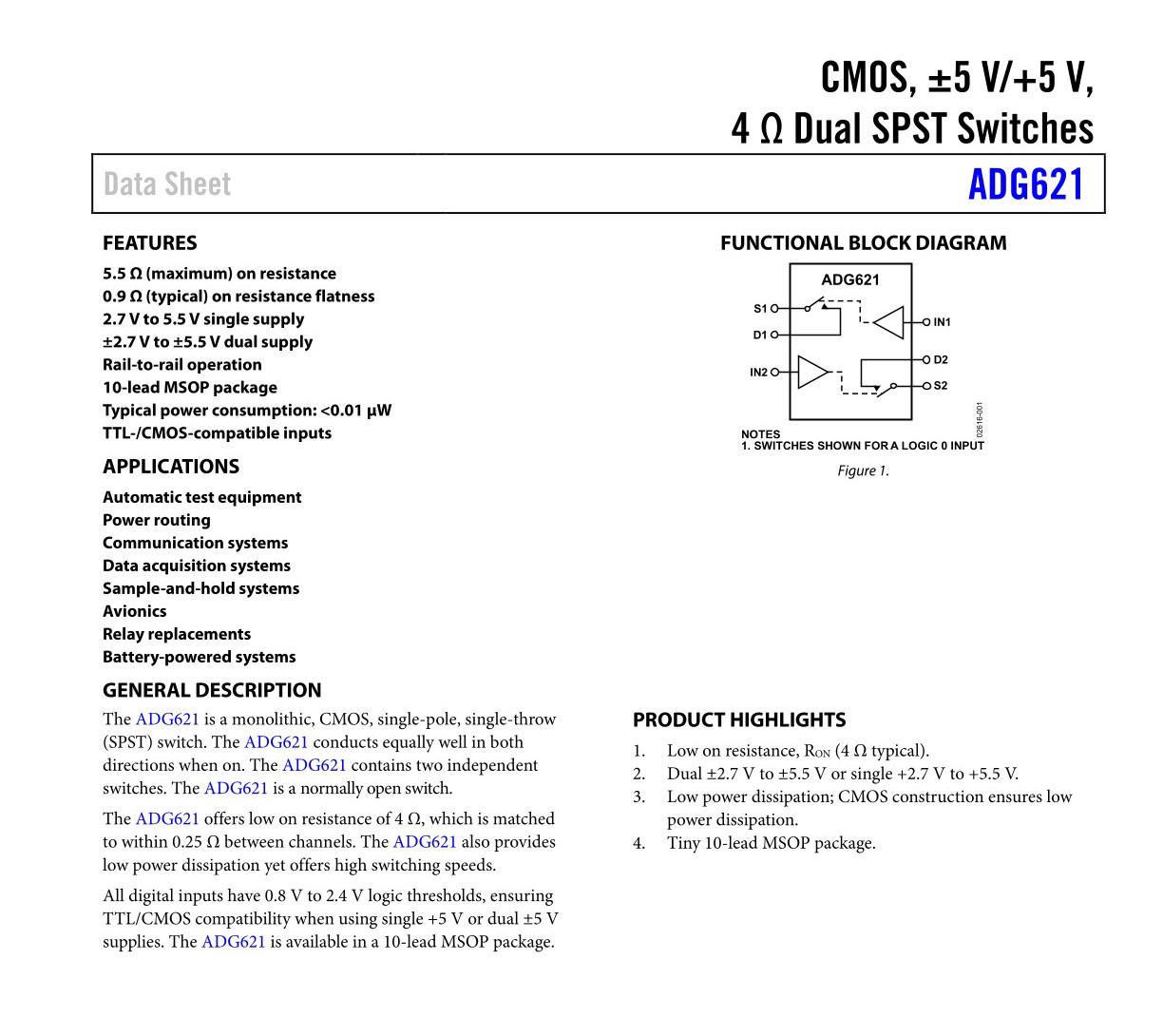

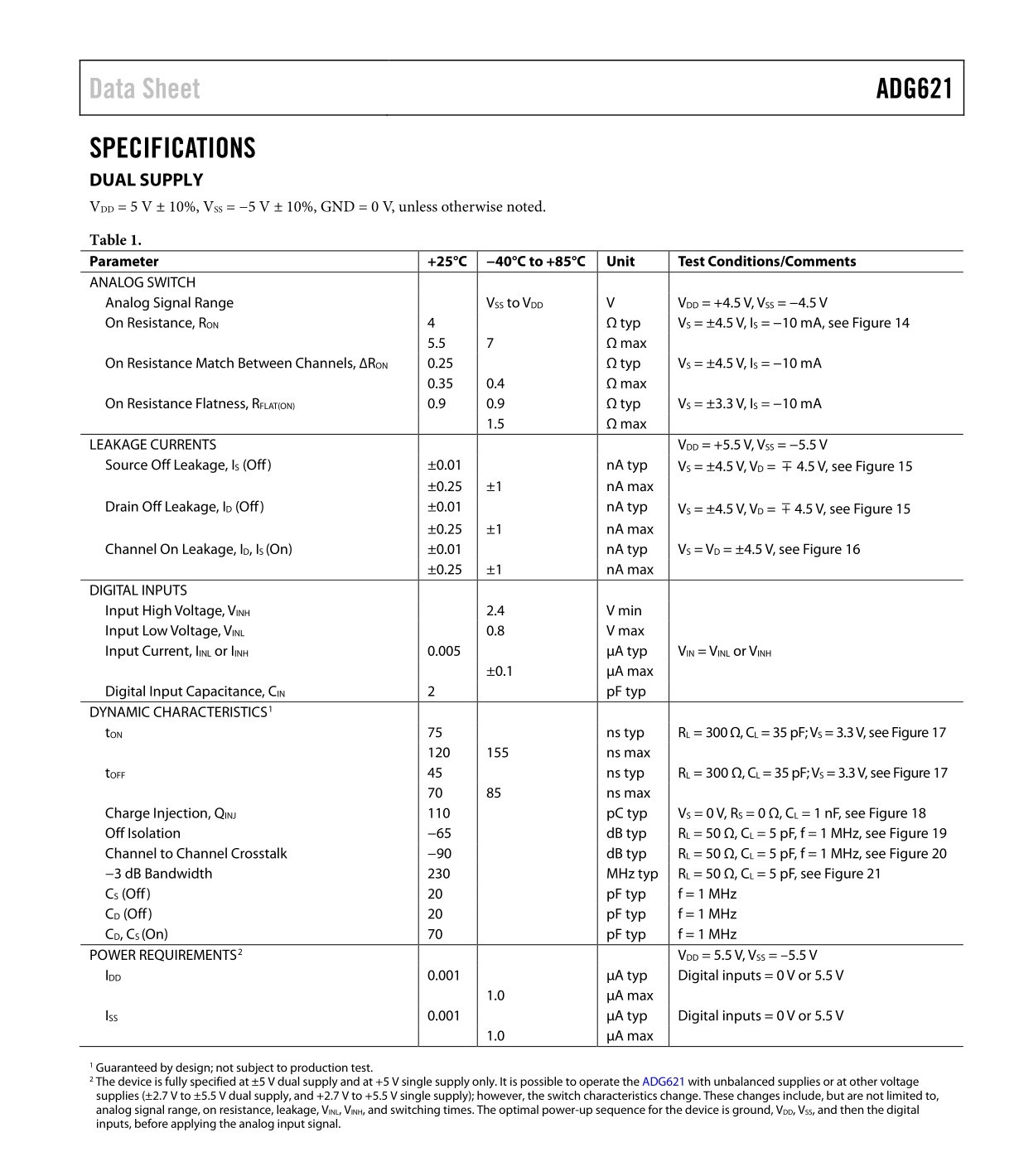

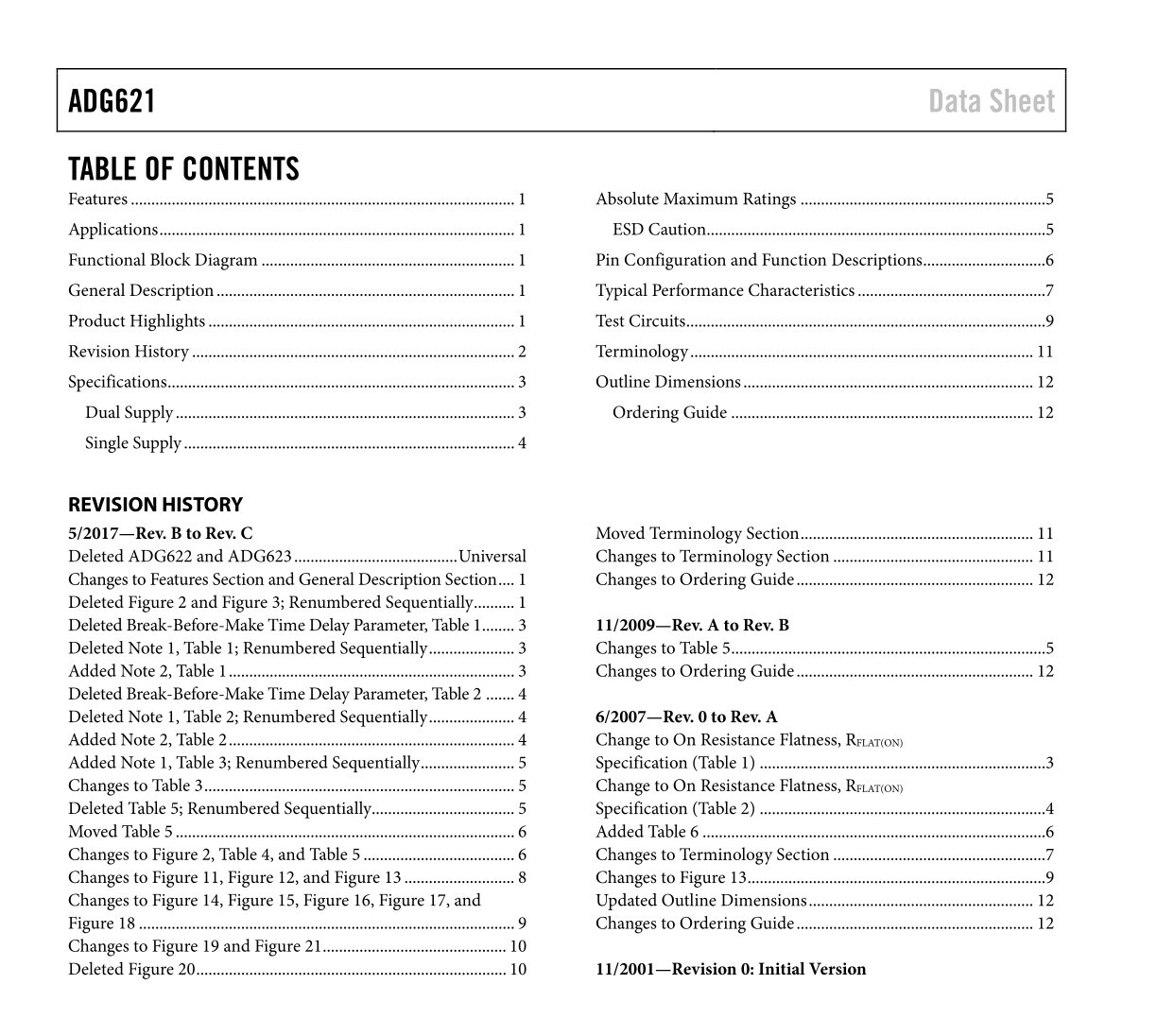

Product datasheet
For more information, please download
