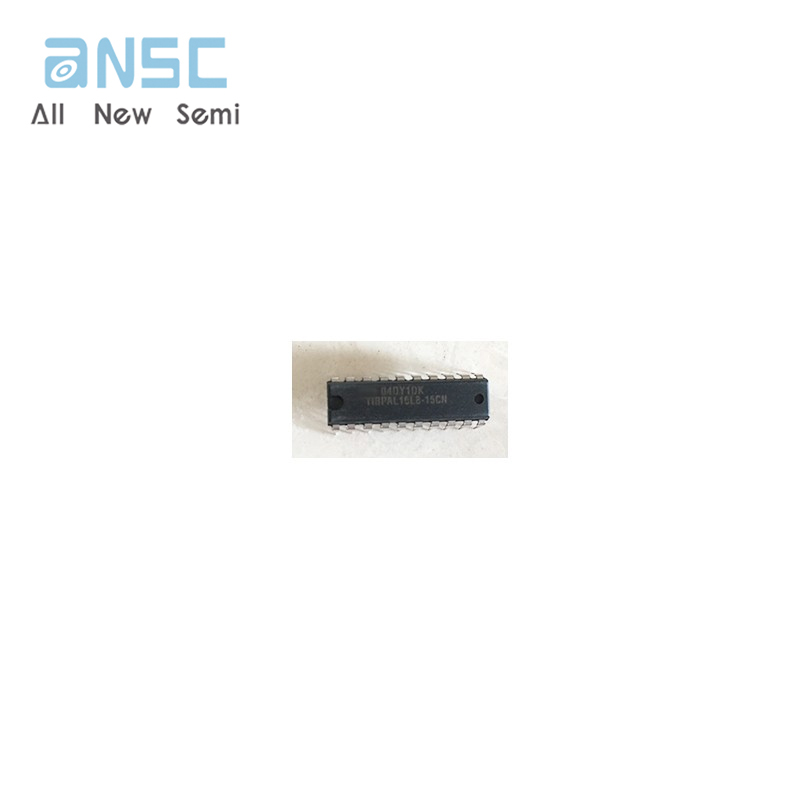

Hot sale Original TIBPAL16L8-15CN IC PLD 15NS 20DIP IMPACT-X™ PAL® Programmable Logic Device (PLD) IC

TIBPAL16L8-15CN Overview

Type Through Hole mounting is used for mounting the PLD stock.There is a programmable type of PLD Programmable logic device  called PAL.As a result of Programmable logic array's performance-cost ratio, IMPACT-X™ PAL® Series is one of the best values available today.The 20-DIP (0.300, 7.62mm)'s package makes it widely used in electronics.Programmable array logic's Packaging uses Tube-materials.TIBPAL16L8 is the PLD stock's largest Complex Programmable logic device.There is always a source of 5V power going to the Complex Programmable logic device.The PLD has dedicated inputs for 10.There is a 20 termination programmed into it.5V is the Programmable logic device's supply.Product terms are counted by 64.A number of 8 outputs are available.On the board, there are 20 pins used for specific purposes.Supply Voltage reaches Programmable logic array's maximum at 5.25V (Vsup).Ideally, Vsup should be higher than 4.75V.Programmable logic devices clock at 50MHz H50MHz.
