Hot sale original P89V51RD2FN Integrated Circuits 8-bit 80C51 5 V low power 16/32/64 kB flash microcontroller with 1 kB RAM
Manufacturer Product Number
P89V51RD2FN
Description
P89V51RD2FN Integrated Circuits 8-bit 80C51 5 V low power 16/32/64 kB flash microcontroller with 1 kB RAM
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC - P89V51RD2FN |
| Part Package Code | DIP |
| Package Description | Dip, Dip40,.6 |
| Pin Count | 40 |
| Has ADC | No |
| Address Bus Width | 16 |
| Bit Size | 8 |
| Boundary Scan | Yes |
| CPU Family | 8051 |
| Clock Frequency-Max | 40 Mhz |
| DAC Channels | No |
| DMA Channels | No |
| External Data Bus Width | 8 |
| JESD-30 Code | R-PDIP-T40 |
| Length | 52 Mm |
| Moisture Sensitivity Level | 1 |
| Number of I/O Lines | 32 |
| Number of Terminals | 40 |
| On Chip Program ROM Width | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| PWM Channels | Yes |
| Package Body Material | Plastic/Epoxy |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Qualification Status | Not Qualified |
| RAM (bytes) | 1024 |
| ROM (words) | 65536 |
| ROM Programmability | Flash |
| Seated Height-Max | 4.7 Mm |
| Speed | 40 Mhz |
| Supply Current-Max | 50 Ma |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | No |
| Technology | Cmos |
| Temperature Grade | Industrial |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |
| uPs/uCs/Peripheral ICs Type | Microcontroller |

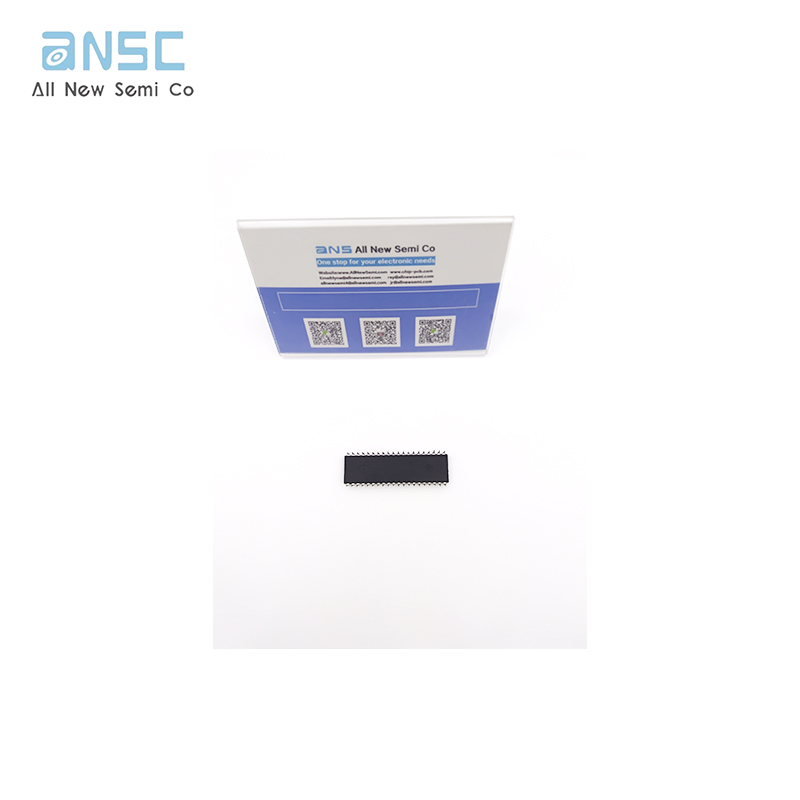

Actual image of the product
