Hot sale original STLC5411P IC 2B1Q U INTERFACE DEVICE Digital SLIC, Basic, 1-Func, CMOS, PDIP28
Manufacturer Product Number
STLC5411P
Description
STLC5411P IC 2B1Q U INTERFACE DEVICE Digital SLIC, Basic, 1-Func, CMOS, PDIP28
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

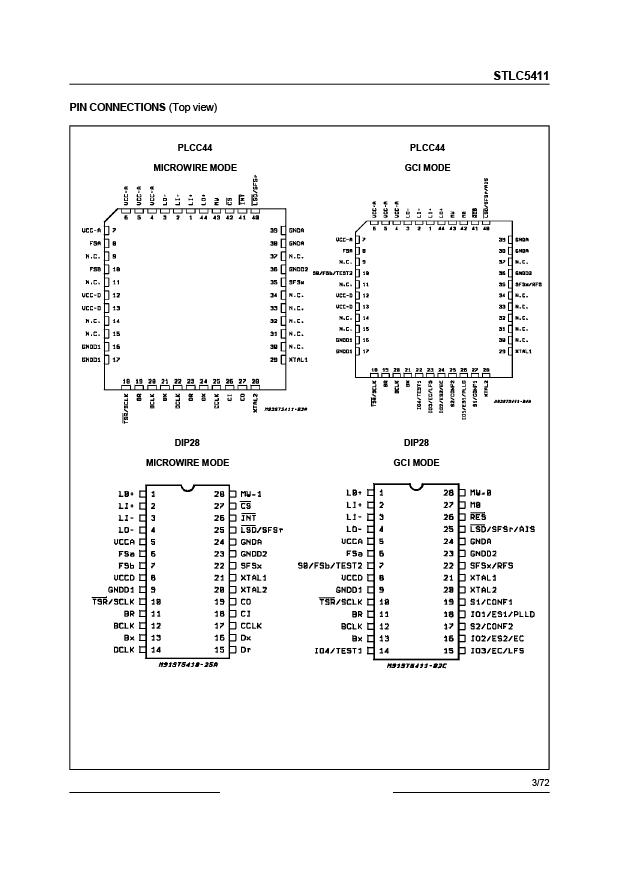

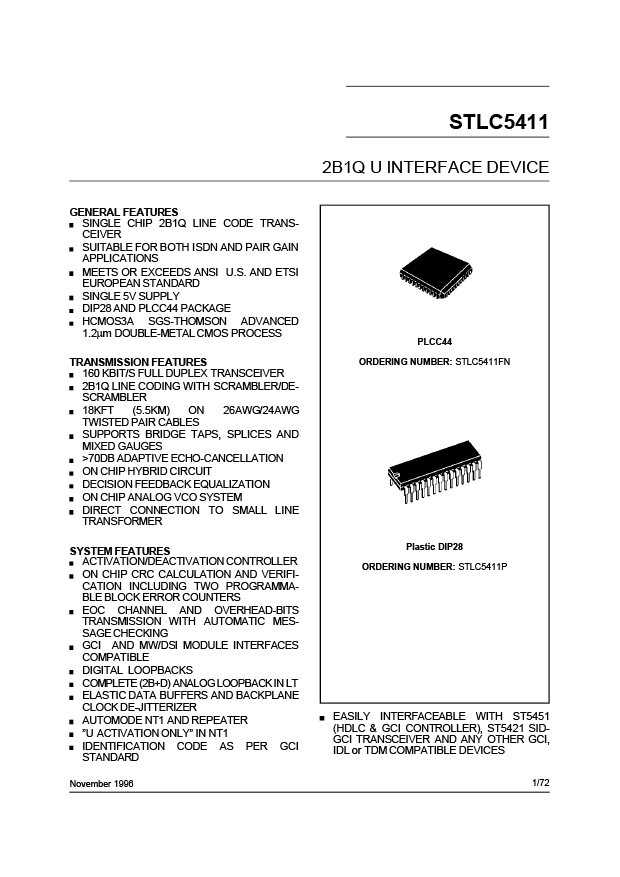

| GENERAL DESCRIPTION STLC5411 is a complete monolithic transceiver for ISDN Basic access data transmission on twisted pair subscriber loops typical of public switched telephone networks. The device is fully compatible with both ANSI T1.601-1988 U.S. and CSE (C32-11) French specifications. It is in tended also to comply with ETSI specification both in term of transmission performances and requested features. GENERAL FEATURES ■ SINGLE CHIP 2B1Q LINE CODE TRANSCEIVER ■ SUITABLE FOR BOTH ISDN AND PAIR GAIN APPLICATIONS ■ MEETS OR EXCEEDS ANSI U.S. AND ETSI EUROPEAN STANDARD ■ SINGLE 5V SUPPLY ■ DIP28 AND PLCC44 PACKAGE ■ HCMOS3A SGS-THOMSON ADVANCED 1.2µm DOUBLE-METAL CMOS PROCESS TRANSMISSION FEATURES ■ 160 KBIT/S FULL DUPLEX TRANSCEIVER ■ 2B1Q LINE CODING WITH SCRAMBLER/DE SCRAMBLER ■ 18KFT (5.5KM) ON 26AWG/24AWG TWISTED PAIR CABLES ■ SUPPORTS BRIDGE TAPS, SPLICES AND MIXED GAUGES ■ >70DB ADAPTIVE ECHO-CANCELLATION ■ ON CHIP HYBRID CIRCUIT ■ DECISION FEEDBACK EQUALIZATION ■ ON CHIP ANALOG VCO SYSTEM ■ DIRECT CONNECTION TO SMALL LINE TRANSFORMER SYSTEM FEATURES ■ ACTIVATION/DEACTIVATION CONTROLLER ■ ON CHIP CRC CALCULATION AND VERIFICATION INCLUDING TWO PROGRAMMA BLE BLOCK ERROR COUNTERS ■ EOC CHANNEL AND OVERHEAD-BITS TRANSMISSION WITH AUTOMATIC MESSAGE CHECKING ■ GCI AND MW/DSI MODULE INTERFACES COMPATIBLE ■ DIGITAL LOOPBACKS ■ COMPLETE (2B+D) ANALOG LOOPBACK IN LT ■ ELASTIC DATA BUFFERS AND BACKPLANE CLOCK DE-JITTERIZER ■ AUTOMODE NT1 AND REPEATER ■ ”U ACTIVATION ONLY” IN NT1 ■ IDENTIFICATION CODE AS PER GCI STANDARD ■ EASILY INTERFACEABLE WITH ST5451 (HDLC & GCI CONTROLLER), ST5421 SID GCI TRANSCEIVER AND ANY OTHER GCI, IDL or TDM COMPATIBLE DEVICES |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - STLC5411P |
| Part Package Code | DIP |
| Package Description | Dip, Dip28,.6 |
| Pin Count | 28 |
| Data Rate | 160 Mbps |
| ISDN Access Rate | Basic |
| Length | 36.83 Mm |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Output High Voltage-Min | 2.4 V |
| Output Low Current-Max | 0.007 A |
| Output Low Voltage-Max | 0.4 V |
| Package Body Material | Plastic/Epoxy |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Qualification Status | Not Qualified |
| Reference Point | U |
| Standard | Ansi T1.601 |
| Supply Voltage-Nom | 5 V |
| Surface Mount | No |
| Technology | Cmos |
| Telecom IC Type | Digital Slic |
| Temperature Grade | Commercial |
| Terminal Finish | Tin Lead |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 15.24 Mm |

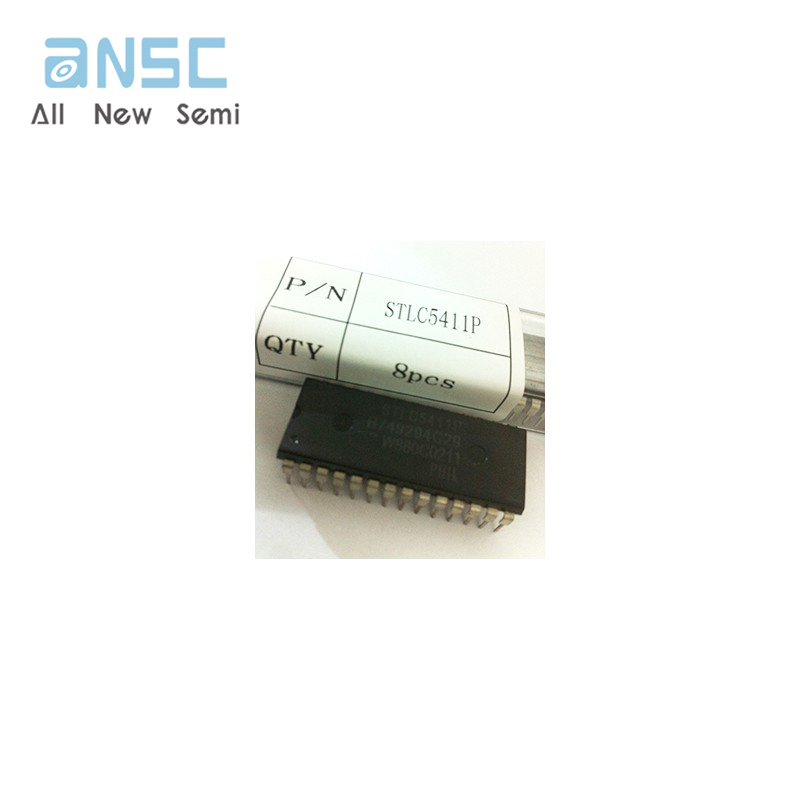

Actual image of the product
