Hot sale original AR9342-DL3A IC QCA9342D CHIPSET: 2X2 DB SOC WIT

Manufacturer Product Number
AR9342-DL3A
Description

AR9342-DL3A IC QCA9342D CHIPSET: 2X2 DB SOC WIT

Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
The AR9341 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It includes a MIPS 74Kc processor, five port IEEE 802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 MAC/PHY, and external memory interface for serial Flash, SDRAM, DDR1 or DDR2, I2S/SPDIF-Out audio interface, SLIC VOIP/PCM interface, two UARTs, and GPIOs that can be used for LED controls or other general purpose interface configurations.


Features
■ 74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, operating at up to 533 MHz
■ External 16-bit DDR1, DDR2 operating at up to 200 MHz (400 M transfers/sec), or 16-bit SDRAM memory interface operating at up to 200 MHz
■ SPI NOR Flash memory support 10/100 Ethernet Switch with five IEEE 802.3

802.3az Energy Efficient Ethernet compliant
Hardware-based NAT & ACL accelerators for

One USB 2.0 controller with built-in MAC/
PHY supports Host or Device mode
Boot from external CPU via USB, eliminating
S/SPDIF-out audio interface

One low-speed UART (115 Kbps), one high-speed
UART (3 Mbps), and multiple GPIO
pins for general purpose I/O
Fully integrated RF Front-End including PAs

Optional external LNA/PA
25 MHz or 40 MHz reference clock input
1.2 V switching regulator
Advanced power management with dynamic
clock switching for ultra-low power modes
150-pin dual-row LPCC package

Product Description

Type# Description
ANSC PART# ANSC-AR9342-DL3A
Part# AR9342-DL3A
Type： Integrated Circuits
Manufactor Original
DC new
Part Status Active
Product packaging QFN

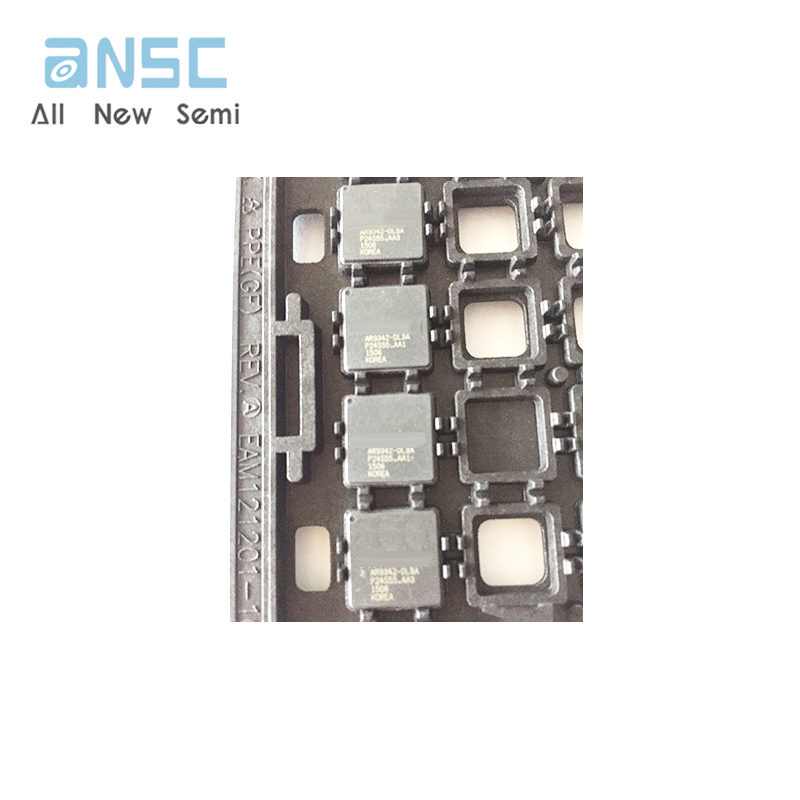

Product Photos

 AR9342-DL3A
