Original MM74HC32J IC OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14

Manufacturer Product Number
MM74HC32J
Description

MM74HC32J IC OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

PART# MM74HC32J
Package Description Dip, Dip14,.3
Family Hc/Uh
Length 19.43 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Or Gate
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material Ceramic, Glass-Sealed
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape Rectangular
Package Style In-Line
Propagation Delay (tpd) 125 Ns
Qualification Status Not Qualified
Schmitt Trigger No
Seated Height-Max 5.08 Mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount No
Technology Cmos
Temperature Grade Industrial
Terminal Finish Tin Lead
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 7.62 Mm

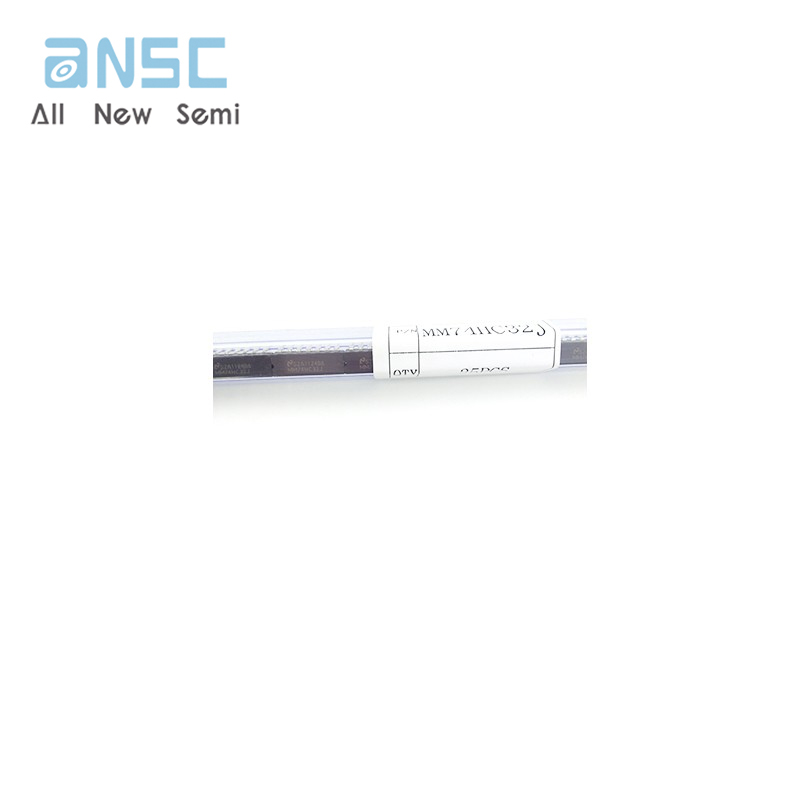

Actual image of the product

MM74HC32J
