Product Details

The SAS35xR expanders are the second series of high performance 12 Gb/sSAS expanders that utilize a new, power-optimized design to deliver best inclass power utilization and the latest enhancements in SAS technology. The36-, 28- and 24-port expanders offer a smaller footprint and are equippedwith an integrated ARM Cortex-R4 processor for system initialization,LED management, enclosure management, and topology managementfunctions such as discovery. The SAS35xR expanders support end deviceSAS data transfer rates of 12, 6, 3 Gb/s, and SATA data transfer rates of 6and 3 Gb/s.

Representing the eighth generation of SAS expanders, the SAS35xR seriesadds a suite of enhanced power management features encompassing theability to create vendor-unique SMP or SES commands. Firmware featuresinclude:

SAS PHY Power Conditions

Partial and Slumber Power Management

Wake-In-Band and Enter/Exit Chip Wide-Low Power modes.

Products Features

Integrated enclosure processor

- ARM Cortex-R4 @ 300 MHz

12 Gb/s SAS interface

- 36-, 28-,24-port SAS/SATAexpanders

- Supports 12 Gb/s, 6 Gb/s, and3 Gb/s SAS, and 6 Gb/s and3 Gb/s SATA data transfer rates

- Ports are non-denominational -initiator and target connect

- Supports narrow and wide portconfigurations

- Spread Spectrum Clocking

- Supports SSP initiator andtarget, SMP initiator and target.STP initiator and

SATA protocols

Specifications

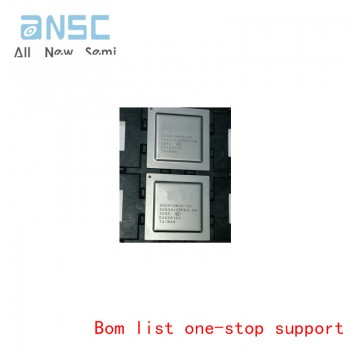

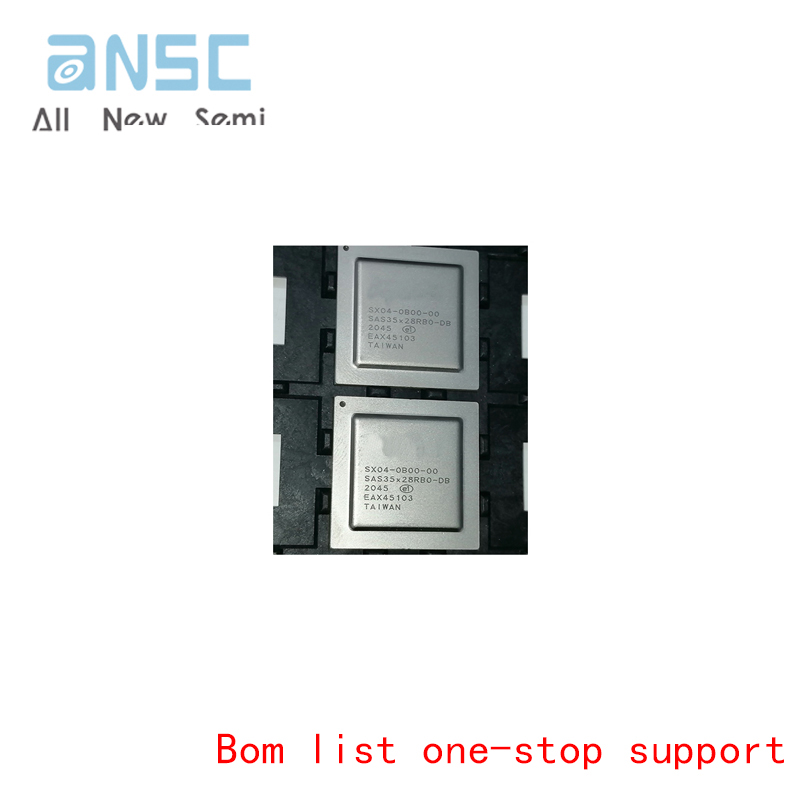

Actual product photos
