Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

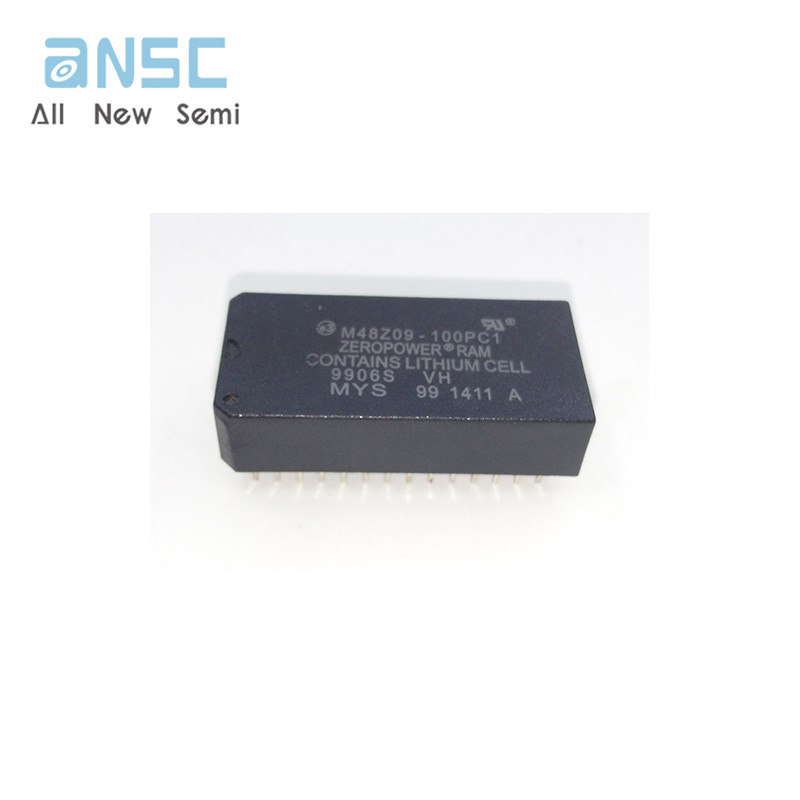

Hot sale original electronics M48Z09-100PC1 CMOS 8K X 8 ZEROPOWER SRAM Non-Volatile SRAM Module, 8KX8, 100ns, CMOS, PDIP28
Manufacturer
Manufacturer Product Number
M48Z09-100PC1
Description
M48Z09-100PC1 CMOS 8K X 8 ZEROPOWER SRAM Non-Volatile SRAM Module, 8KX8, 100ns, CMOS, PDIP28
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC- M48Z09-100PC1 |
| Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | 0.600 INCH, CAPHAT, PLASTIC, DIP-28 |
| Pin Count | 28 |
| Access Time-Max | 100 ns |
| Additional Feature | BATTERY BACKUP; WRITE PROTECT; 11 YEARS OF DATA RETENTION |
| Length | 39.625 mm |
| Memory Density | 65536 bit |
| Memory IC Type | NON-VOLATILE SRAM MODULE |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 28 |
| Number of Words | 8192 words |
| Number of Words Code | 8000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Organization | 8KX8 |
| Output Characteristics | 3-STATE |
| Output Enable | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Seated Height-Max | 9.65 mm |
| Standby Current-Max | 0.003 A |
| Supply Current-Max | 0.08 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
