Hot-selling and scarce IS42S16320F-7TL SDRAM Memory IC 512Mbit Parallel 143 MHz 5.4 ns 54-TSOP II spot stock

Product Descriptions

The 512Mb SDRAM is a high speed CMOS, dynamic random-access memory designed to operate in either 3.3V Vdd/Vddq or 2.5V Vdd/Vddq memory systems,depending on the DRAM option . Internally configured as a quad-bankDRAM with a synchronous interface .

The 512Mb SDRAM (536,870,912 bits)includes an AUTOREFRESH  MODE,  and  a  power-saving,  power-downmode . All signals are registered on the positive edge ofthe clock signal, CLK .  All inputs and outputs are LVTTLcompatible .

Product Features

•  Clock frequency:200, 166, 143  MHz

•  Fully synchronous;all signals referenced to a

positive clock edge

•  Internal bank for hiding row access/precharge

•  Power supply:Vdd/Vddq = 2.3V-3 .6V

IS42/45SxxxxxF -Vdd/Vddq = 3.3V

IS42/45RxxxxxF -Vdd/Vddq = 2.5

•  LVTTL interface

•  Programmable burst length

– (1, 2, 4, 8, full page)

•  Programmable burst sequence:

Sequential/Interleave

•  Auto Refresh (CBR)

•  Self Refresh

•  8K refresh cycles every 64 ms

•  Random column address every clock cycle

•  Programmable CAS latency (2, 3 clocks)

•  Burst read/write and burst read/single write operations capability

•  Burst termination by burst stop and precharge command

•  Packages:

x8/x16:54-pin TSOP-II, 54-ball TF-BGA (x16 only)

•  Temperature Range:

Commercial (0oC to +70oC)

Industrial (-40oC to +85oC)

Automotive, A1 (-40oC to +85oC)

Automotive, A2 (-40oC to +105oC)

Product Specification

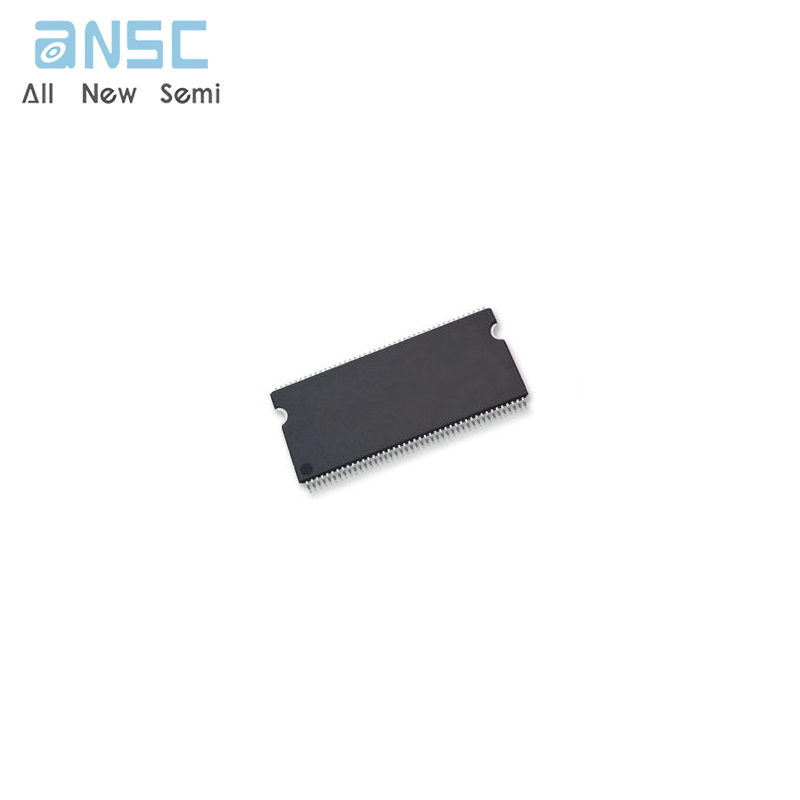

Product Photos

For more product information, please download the PDF
