Hot-selling and scarce 93LC66C-I/SN EEPROM Memory IC 4Kbit Microwire 3 MHz 8-SOIC spot stock

Product Descriptions

​93XX66A/B/C devicesare  4K  bit  low-voltage  serial  Electrically  ErasablePROMs (EEPROM). Word-selectable devices such asthe  93AA66C,  93LC66C  or  93C66C  are  dependentupon  external  logic  levels  driving  the  ORG  pin  to  setword  size.  For  dedicated  8-bit  communication,  the93XX66A  devices  are  available,  while  the  93XX66Bdevices   provide   dedicated   16-bit   communication.Advanced  CMOS  technology  makes  these  devicesideal  for  low-power,  nonvolatile  memory  applications.The   entire   93XX   Series   is   available   in   standardpackages   including   8-lead   PDIP   and   SOIC,   andadvanced  packaging  including  8-lead  MSOP,  6-leadSOT-23,  8-lead  2x3  DFN  and  8-lead  TSSOP.  Pb-free(Pure Matte Sn) finish is available.

Product Features

•  Low-power CMOS technology

•  ORG pin to select word size for ‘66C’ version

•  512 x 8-bit organization ‘A’ ver. devices (no ORG)

•  256 x 16-bit organization ‘B’ ver. devices (no ORG)

•  Self-timed erase/write cycles (including auto-erase)

•  Automatic ERAL before WRAL

•  Power-on/off data protection circuitry

•  Industry standard 3-wire serial I/O

•  Device Status signal (Ready/Busy)

•  Sequential read function

•  1,000,000 E/W cycles

•  Data retention > 200 years

•  Temperature ranges supported

-  Industrial (I) -40°C to +85°C

-  Automotive (E) -40°C to +125°C

Product Specification

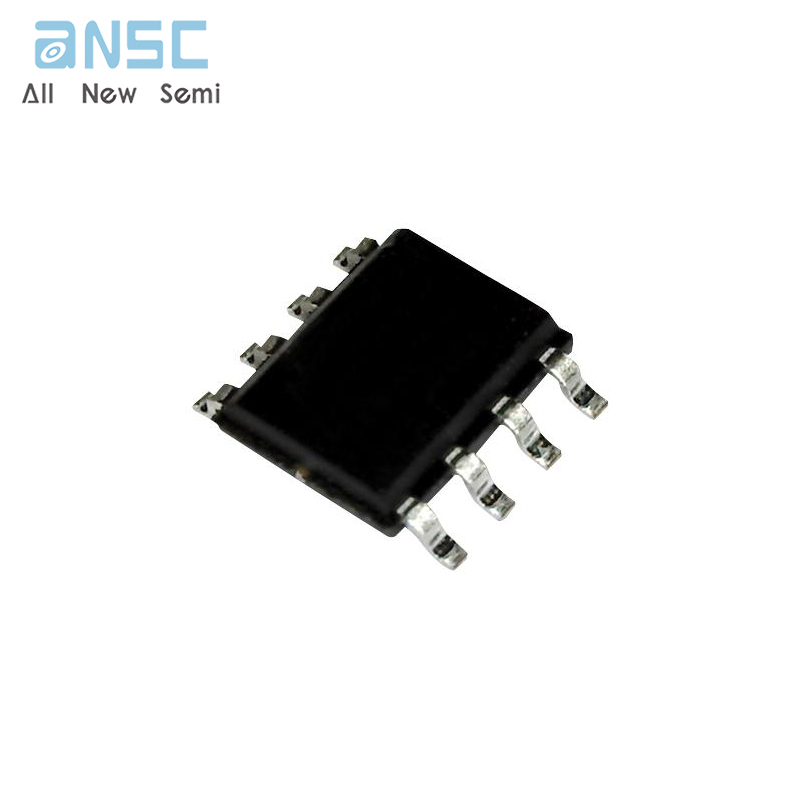

Product Photos

For more product information, please download the PDF
