Hot-selling and scarce 24LC16B-P EEPROM Memory IC 16Kbit I2C 400 kHz 900 ns 8-PDIP spot stock
Manufacturer Product Number
24LC16B-P
Description
24LC16B-P EEPROM Memory IC 16Kbit I2C 400 kHz 900 ns 8-PDIP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Single Supply with Operation down to 1.7V for 24AA16 and 24FC16 Devices,2.5V for 24LC16B Devices
• Low-Power CMOS Technology:
- Read current 1 mA,maximum
- Standby current 1 μA,maximum (I-temp.)
•Two-Wire Serial Interface,I 2 C Compatible
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kHz,400 kHz and 1 MHz Compatibility
• Page Write Time:5 ms,Maximum
• Self-Timed Erase/Write Cycle
• 16-Byte Page Write Buffer
• Hardware Write-Protect
• ESD Protection >4,000V
• More than 1 Million Erase/Write Cycles
• Data Retention >200 Years
• Factory Programming Available
• RoHS Compliant
•Temperature Ranges:
- Industrial (I):-40°C to +85°C
- Extended (E):-40°C to +125°C
•Automotive AEC-Q100 Qualified
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-24LC16B/P |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 16Kbit |
| Memory Organization | 2K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 400 kHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | 24LC16B |

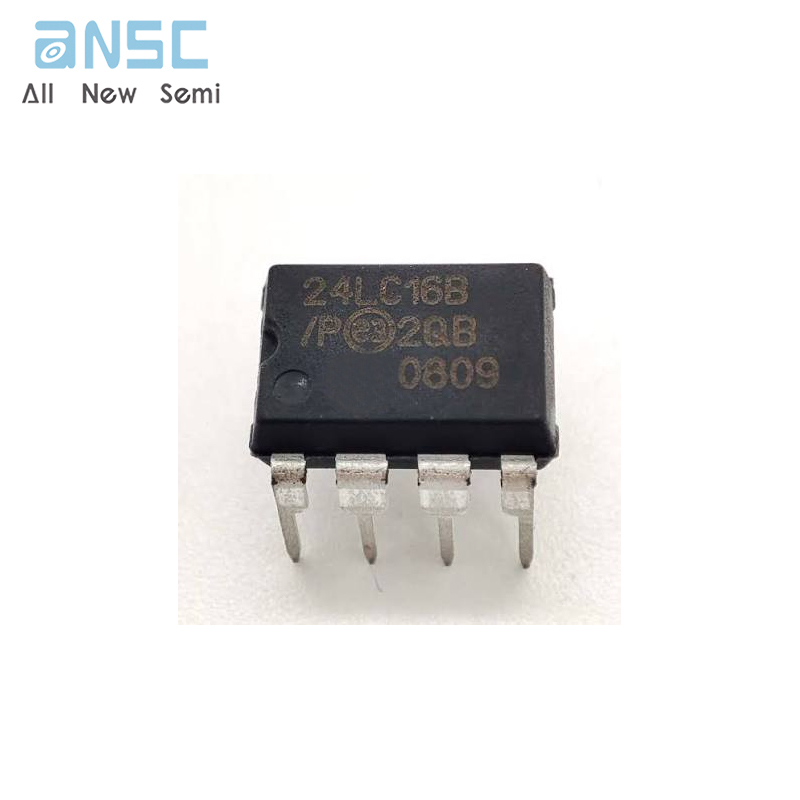

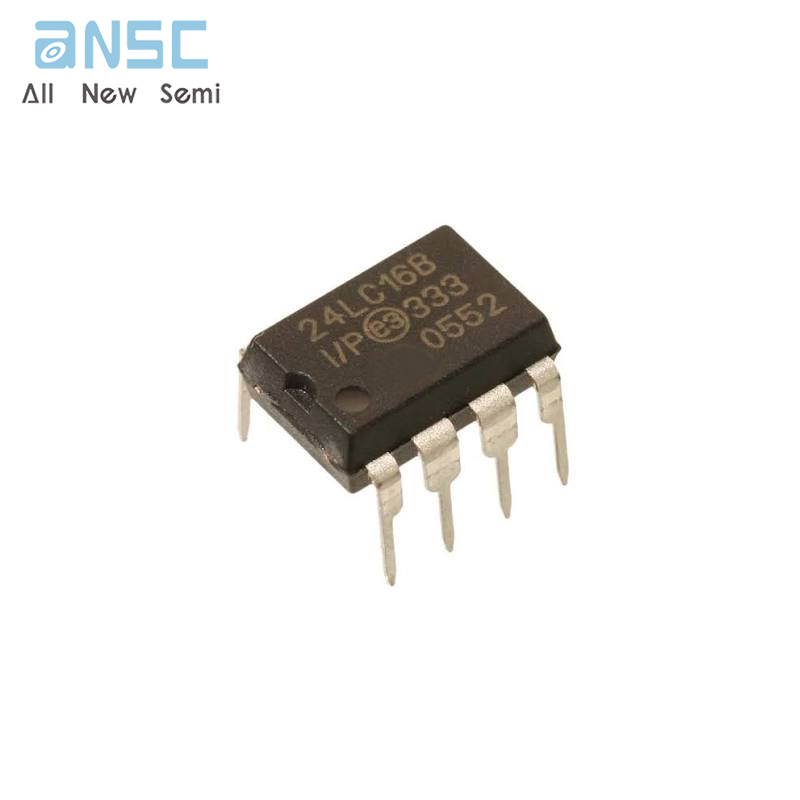

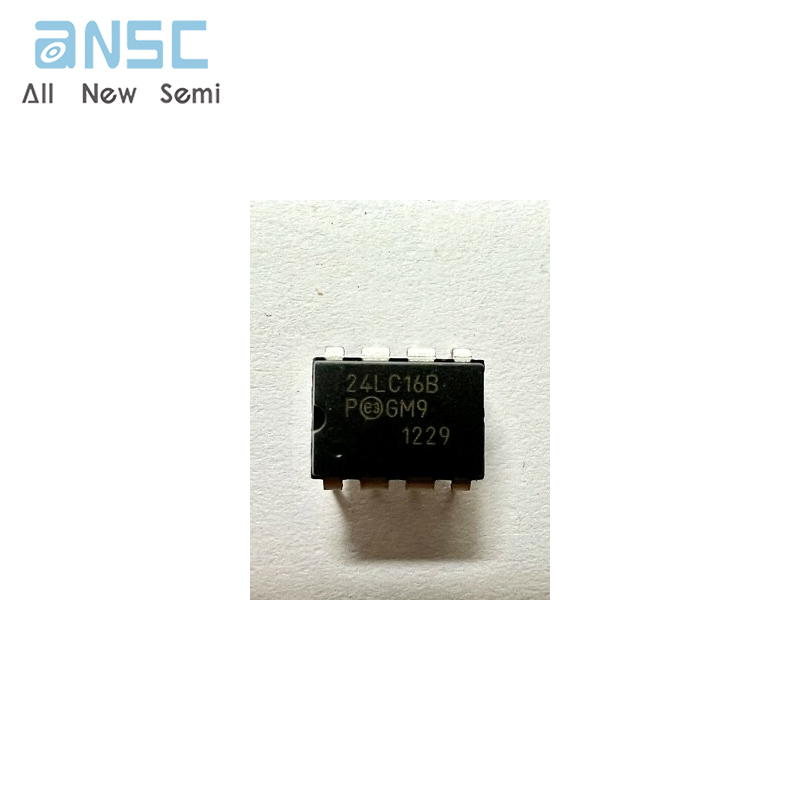

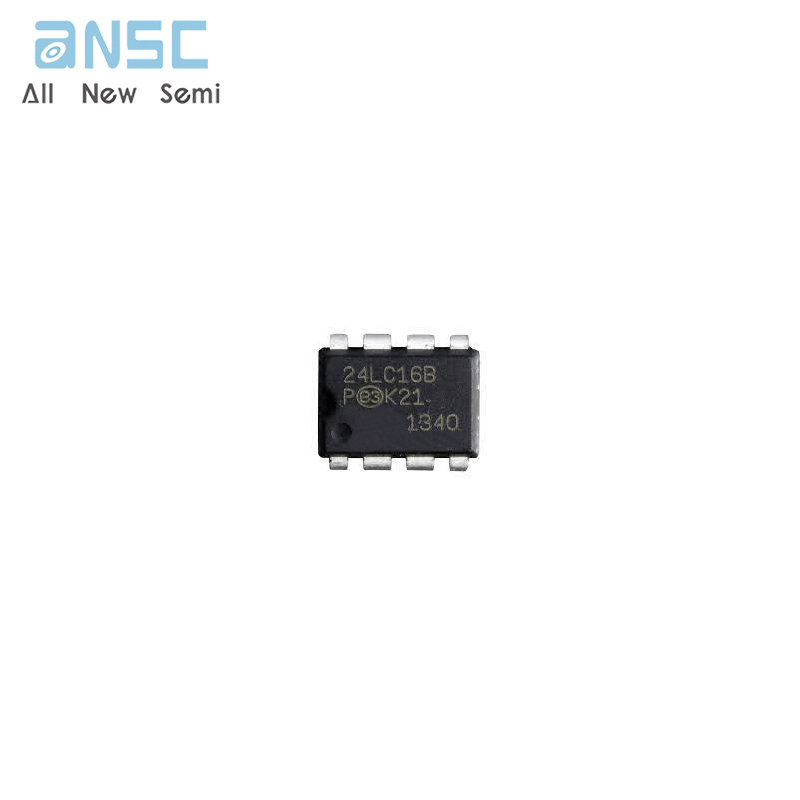

Product Photos
For more product information, please download the PDF
