Hot-selling and scarce XC3S400A-4FG400C Field Programmable Gate Array IC BGA spot stock

Product Descriptions

The Spartan-3A FPGAs are part of the Extended Spartan-3A family, which also include the non-volatile Spartan-3AN and the higher density Spartan-3A DSP FPGAs. The Spartan-3A family builds on the success of the earlier Spartan-3E and Spartan-3 FPGA families. New features improve system performance and reduce the cost of configuration. These Spartan-3A family enhancements, combined with proven 90 nm process technology, deliver more functionality and bandwidth per dollar than ever before, setting the new standard in the programmable logic industry.

Because of their exceptionally low cost, Spartan-3A FPGAs are ideally suited to a wide range of consumer electronics applications, including broadband access, home networking, display/projection, and digital television equipment.

The Spartan-3A family is a superior alternative to mask programmed ASICs. FPGAs avoid the high initial cost, lengthy development cycles, and the inherent inflexibility of conventional ASICs, and permit field design upgrades.

Product Features

• Very low cost, high-performance logic solution for high-volume, cost-conscious applications

• Dual-range VCCAUX supply simplifies 3.3V-only design

• Suspend, Hibernate modes reduce system power

• Multi-voltage, multi-standard SelectIO™ interface pins

• Up to 502 I/O pins or 227 differential signal pairs

• LVCMOS, LVTTL, HSTL, and SSTL single-ended I/O

• 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V signaling

• Selectable output drive, up to 24 mA per pin

• QUIETIO standard reduces I/O switching noise

• Full 3.3V ± 10% compatibility and hot swap compliance

Product Specification

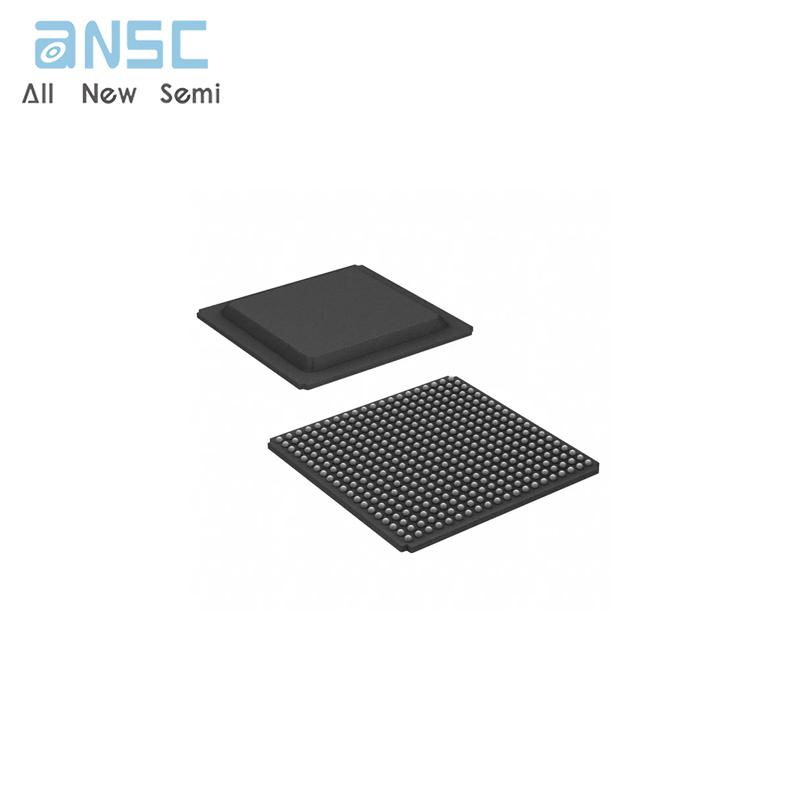

Product Photos

For more product information, please download the PDF
