One stop supply of electronic components JS28F128J3D75 FLASH - NOR Memory IC 128Mbit Parallel 75 ns 56-TSOP

Product Features

• Architecture

— Symmetrical 128-Kbyte blocks

— 256 Mbit (256 blocks)

— 128 Mbit (128 blocks)

— 64 Mbit (64 blocks)

— 32 Mbit (32 blocks)

• Performance

— 75 ns Initial Access Speed (32,64,128

Mbit densities)

— 95 ns Initial Access Speed (256Mbit only)

— 25 ns 8-word and 4-word Asynchronous

page-mode reads

— 32-Byte Write buffer;

4 µs per Byte Effective programming time

• System Voltage

— VCC = 2.7 V to 3.6 V

— VCCQ = 2.7 V to 3.6 V

• Packaging

— 56-Lead TSOP (32, 64, 128, 256 Mbit)

— 64-Ball Numonyx Easy BGA package (32,

64, 128 and 256 Mbit)

• Security

— Enhanced security options for code

protection

— 128-bit Protection Register:

64-bits Unique device identifier bits

64-bits User-programmable OTP bits

— Absolute protection with VPEN = GND

— Individual block locking

— Block erase/program lockout during power

transitions

• Software

— Program and erase suspend support

— Flash Data Integrator (FDI), Common Flash

Interface (CFI) Compatible

• Quality and Reliability

— Operating temperature:

-40 °C to +85 °C

— 100K Minimum erase cycles per block

— 0.13 µm ETOX™ VIII Process technology

Specifications

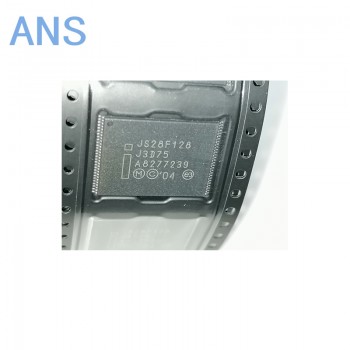

Actual product photos
